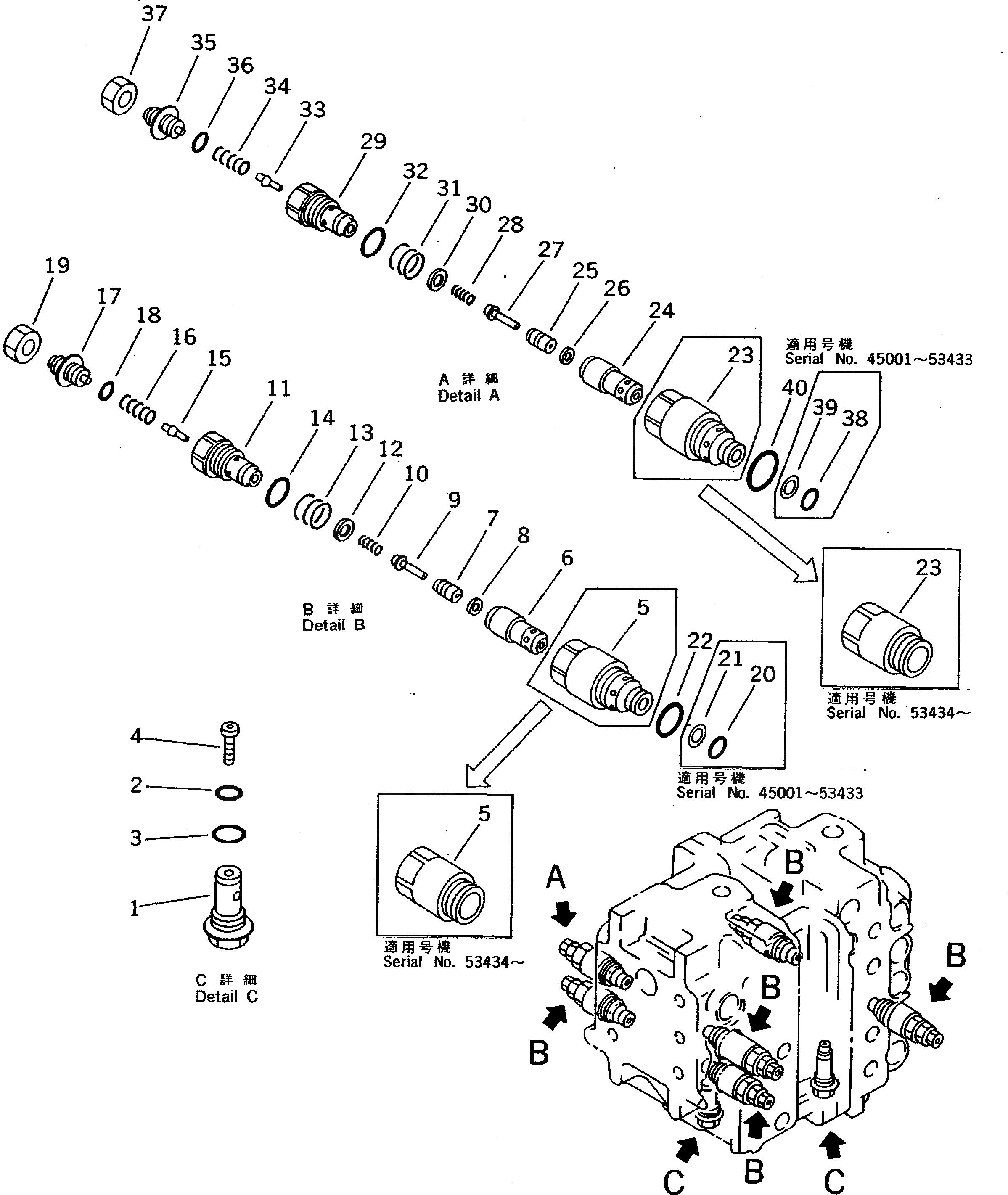

Запчасти Komatsu PC200LC-5C ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН (7/7) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

709-79-22502

CONTROL VALVE ASS'Y

|$1

709-79-22501

CONTROL VALVE ASS'Y

|$2

709-79-22500

CONTROL VALVE ASS'Y

|$3

709-79-22400

CONTROL VALVE ASS'Y

|$5

709-90-91300

ORIFICE ASS'Y

1

ORIFICE

2

07000-02014

O-RING

3

07002-02434

O-RING

4

SENSOR

|$10

709-70-74103

VALVE ASS'Y,SUCTION AND SAFETY

|$11

709-70-71102

VALVE ASS'Y,SUCTION AND SAFETY

5

709-70-71112

SLEEVE

5

709-70-71511

SLEEVE

6

SLEEVE

7

POPPET

8

SEAL

9

PISTON

10

709-70-71210

SPRING

11

PLUG

12

SEAL

13

709-70-71220

SPRING

14

07002-02434

O-RING

15

POPPET

16

SPRING

17

SCREW

18

O-RING

19

NUT

20

700-22-11410

O-RING

21

700-80-64220

RING,BACK-UP

22

709-25-11390

O-RING

22

07002-03034

O-RING

|$32

709-70-74203

VALVE ASS'Y,SUCTION AND SAFETY

|$33

709-70-71203

VALVE ASS'Y,SUCTION AND SAFETY

23

709-70-71112

SLEEVE

23

709-70-71511

SLEEVE

24

SLEEVE

25

POPPET

26

SEAL

27

PISTON

28

709-70-71210

SPRING

29

PLUG

30

SEAL

31

709-70-71220

SPRING

32

07002-02434

O-RING

33

POPPET

34

SPRING

35

SCREW

36

O-RING

37

NUT

38

700-22-11410

O-RING

39

700-80-64220

RING,BACK-UP

40

709-25-11390

O-RING

40

07002-03034

O-RING
