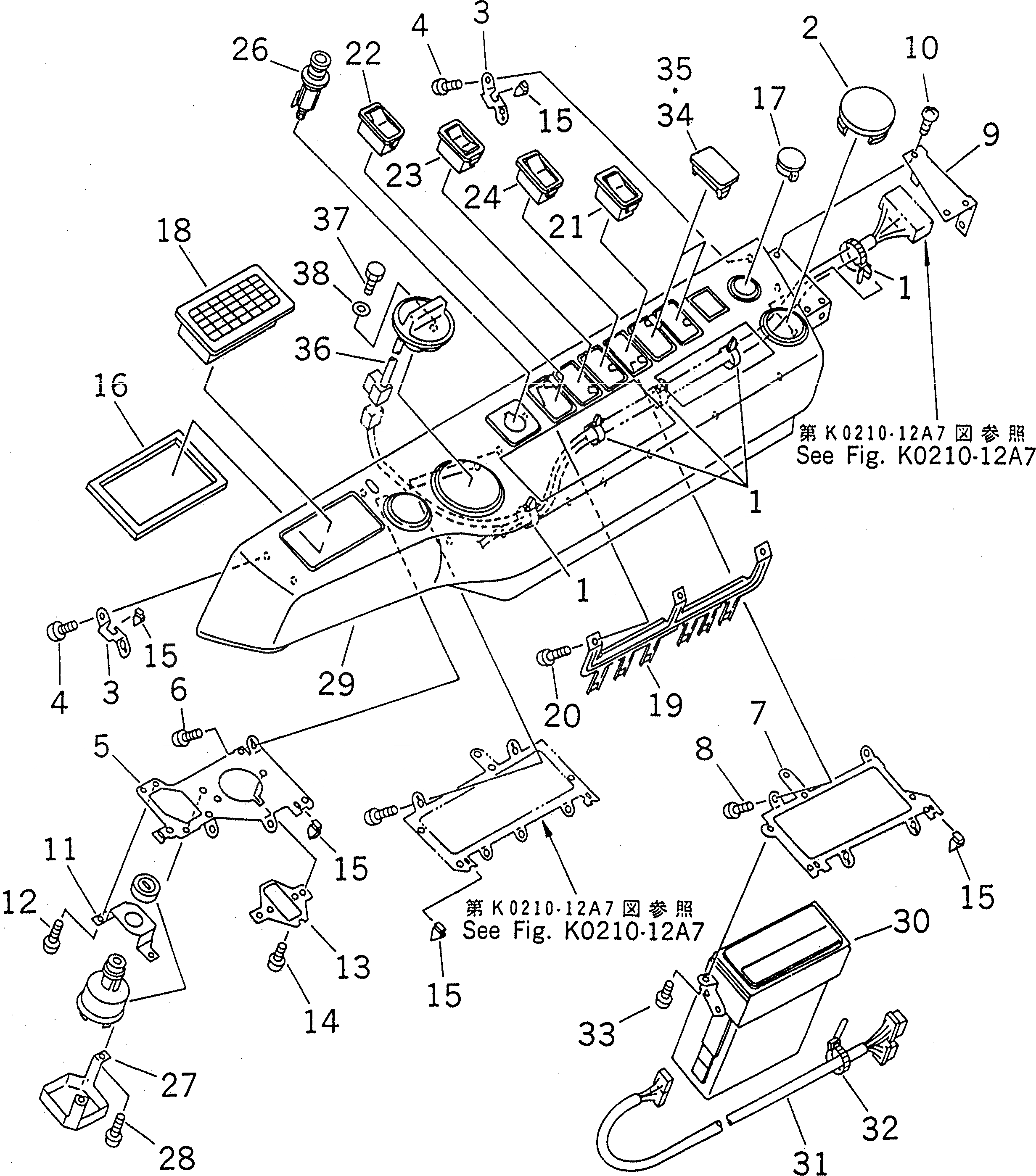

Запчасти Komatsu PC200LC-6H КАБИНА (КРЫШКА ПАНЕЛИ) (С МОНИТОРING СИСТЕМА) (ДЛЯ POWER СДВИГ. ВВЕРХ ОКНА)(№88-) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

20Y-06-23940

BAND

2

09414-11053

CAP

3

20Y-06-23710

STAY

4

01370-00512

SCREW

5

20Y-06-23720

STAY

6

01370-00512

SCREW

7

20Y-06-23730

STAY

8

01370-00512

SCREW

9

20Y-06-23740

STAY

10

01023-10408

SCREW

11

20Y-06-23750

BRACKET

12

01023-10510

SCREW

13

20Y-06-23760

BRACKET

14

01023-10510

SCREW

15

20Y-06-23770

CLIP

16

20Y-54-36981

PACKING

17

20Y-06-23790

CAP

18

20Y-979-2171

GRILLE

18

20Y-979-2170

GRILLE

19

20Y-06-23810

STAY

20

01370-00512

SCREW

21

20Y-06-23431

SWITCH,BUZZER STOP

22

20Y-06-23441

SWITCH,SWING LOCK

23

20Y-06-23950

SWITCH,WIPER

24

20Y-06-23421

SWITCH,LIGHT

25

08086-20000

SWITCH

26

20Y-06-23471

LIGHTER

27

20Y-06-23820

HOLDER

28

01023-10510

SCREW

29

20Y-06-24310

PANEL

30

20Y-979-3170

PANEL ASS'Y,AIR CONDITIONER

30

20Y-979-2471

PANEL ASS'Y,AIR CONDITIONER

31

20Y-979-3180

HARNESS ASS'Y

31

20Y-06-21471

HARNESS ASS'Y

32

08034-20519

BAND

33

01023-10510

SCREW

34

20Y-06-23840

CAP

35

20Y-06-23840

CAP

36

7825-30-1301

DIAL

37

01252-40410

BOLT

38

01601-20410

WASHER
