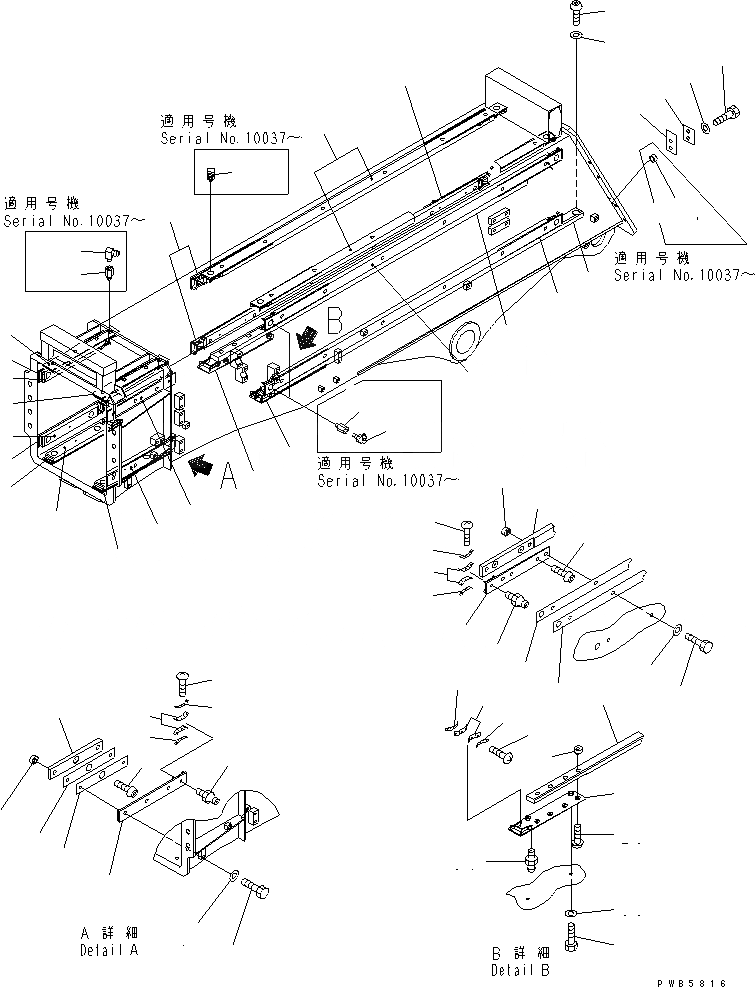

Запчасти Komatsu PC200SC-6 РУКОЯТЬ (ОСНОВ.)(№-) РАБОЧЕЕ ОБОРУДОВАНИЕ
1
1A
1A
1A
2
3
4
4
4
4
4A
4A
4B
4B
4B
5
6
7
8
9
9
10
11
12
12A
12B
13
14
15
15
15
16
16
16
16
17
18
19
20
20A
20B
21
21A
22
22
23
24
25
26
26
27
28
29
30
31
32
33
33
34
34
35
36
37
38
39
40
40A
41
42
1
20Y-957-1242
PAD
|1
20Y-957-1242
PAD
1A
20Y-957-9120
PAD
2
20Y-957-1250
SHIM
3
20Y-957-1710
SHIM
4
20Y-957-1261
BRACKET
|4
20Y-957-1261
BRACKET
4A
20Y-957-9130
BRACKET
4B
20Y-957-9140
BRACKET
5
20Y-957-1210
NUT
6
01010-81230
BOLT
7
01643-31232
WASHER
8
01370-00616
SCREW
|8
01245-00616
SCREW
9
20Y-957-1220
PLATE
10
20Y-957-1230
RUBBER
11
01220-40412
SCREW
12
07020-00000
FITTING
|12
07020-00000
FITTING
12A
203-70-56570
NIPPLE
12B
20Y-25-11270
ELBOW
13
20Y-957-1282
PAD
14
20Y-957-1290
SHIM
15
20Y-957-1750
SHIM
|15
20Y-957-1750
SHIM
16
20Y-957-1271
BRACKET
17
20Y-957-1210
NUT
18
01010-81230
BOLT
19
01643-31232
WASHER
20
01370-00616
SCREW
20A
203-70-56570
NIPPLE
20B
07020-00900
FITTING
21
07020-00000
FITTING
|21
07020-00000
FITTING
21A
20Y-25-11270
ELBOW
22
20Y-957-1220
PLATE
23
20Y-957-1230
RUBBER
24
01220-40412
SCREW
25
20Y-957-1331
PAD,R.H.
26
20Y-957-1341
PAD,L.H.
27
20Y-957-1350
NUT
28
01245-00616
SCREW
29
01010-81225
BOLT
30
01643-31232
WASHER
31
07020-00000
FITTING
32
20Y-957-1311
BRACKET,R.H.
33
20Y-957-1321
BRACKET,L.H.
34
20Y-957-1220
PLATE
35
20Y-957-1230
RUBBER
36
01220-40412
SCREW
37
01435-01235
BOLT
38
01643-31232
WASHER
39
20Y-957-1360
PLATE
|39
20Y-957-8810
PLATE
|39
20Y-957-1360
PLATE
40
20Y-957-1371
RUBBER
|40
20Y-957-8820
RUBBER
|40
20Y-957-1370
RUBBER
40A
130-43-48540
COLLAR
41
01010-81250
BOLT
|41
01010-81235
BOLT
42
01643-31232
WASHER
