/ / / / / / / ЦИЛИНДР СТРЕЛЫ, ПРАВ. (/)

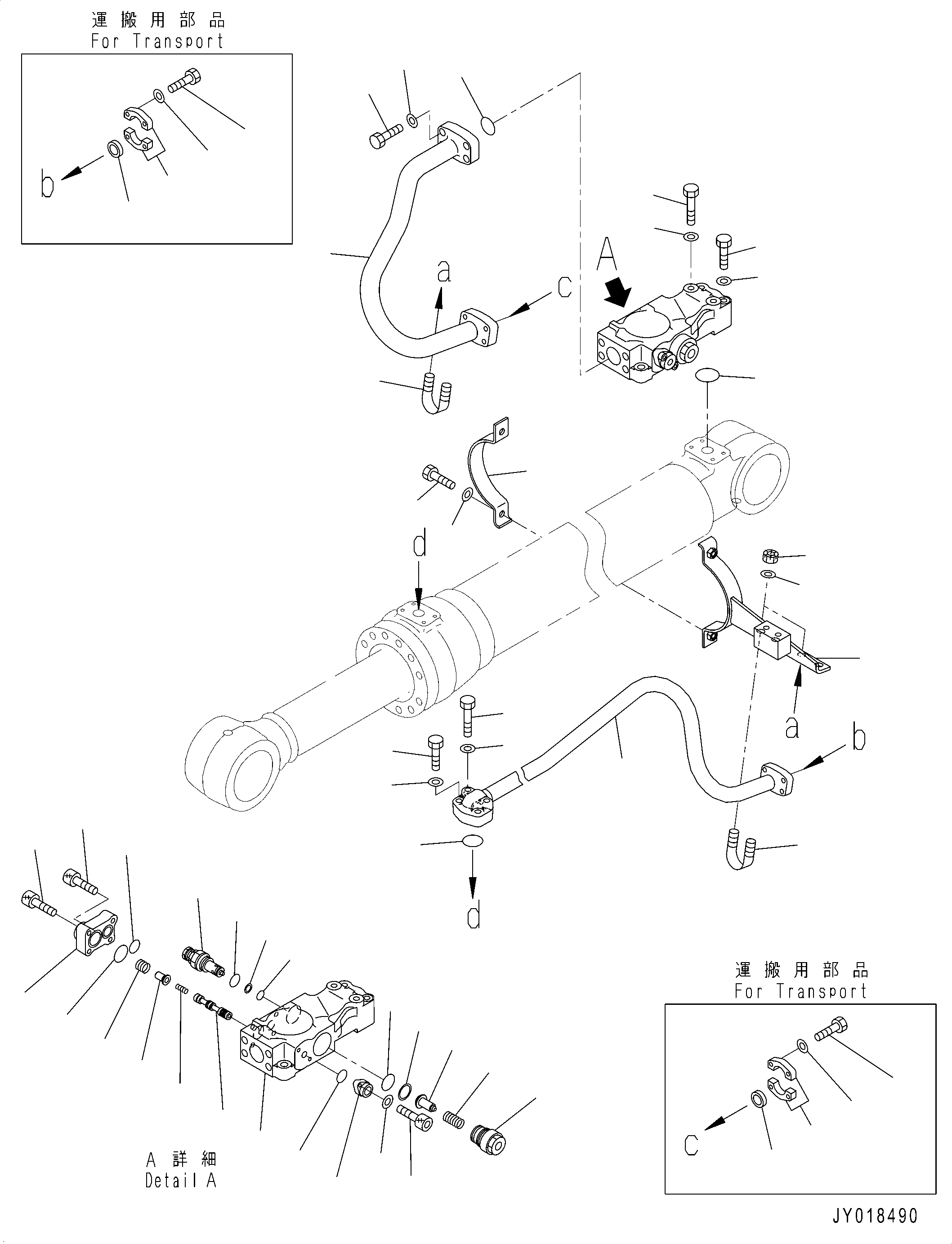

Запчасти Komatsu PC210LC-10 ЦИЛИНДР СТРЕЛЫ, ПРАВ. (/) ЦИЛИНДР СТРЕЛЫ
43
33
42
34
35
44
27
45
28
40
2
41
37
33
31
34
35
38
39
26
27
28
29
1
30
13
14
10
36
32
22
25
23
24
20
5
21
11
18
9
19
6
12
34
8
35
4
46
3
17
16
47
15
7
|$0
707-E1-01410
Cylinder Assembly
1
707-86-69280
Tube
2
2A5-62-14740
Tube
|$3
702-21-08390
Valve, Pilot
5
702-21-38510
Case
7
702-21-38430
Flange
8
702-21-38440
Spring
10
702-21-38460
O-Ring
11
702-21-38470
O-Ring
12
702-21-38480
Plug
13
01252-60825
Bolt
14
01252-60835
Bolt
15
01252-60620
Bolt
16
01641-20608
Washer
17
07000-12021
O-Ring
18
702-21-39690
Valve
19
709-75-92220
Spring
20
700-93-11320
O-Ring
21
700-93-11330
Ring, Back-Up
22
723-90-66900
Valve Assembly, Relief
23
700-80-64220
Ring, Back-Up
24
700-22-11410
O-Ring
25
709-25-11390
O-Ring
26
707-88-51640
Bracket
27
07372-21060
Bolt
28
01643-51032
Washer
29
07372-21045
Bolt
30
01643-51032
Washer
31
707-88-21620
Band
32
07000-13030
O-Ring, (Kit : K02)
33
07000-13035
O-Ring, (Kit : K02)
34
07372-21035
Bolt
35
01643-51032
Washer
36
07283-32738
Clip, Pipe
37
07283-33442
Clip, Pipe
38
01597-01009
Nut
39
01643-31032
Washer
40
07372-21050
Bolt
41
01643-51032
Washer
42
07372-21040
Bolt
43
01643-51032
Washer
44
07371-30640
Flange, Split
45
707-88-33030
Cap
46
07371-31049
Flange, Split
47
707-88-33040
Cap
