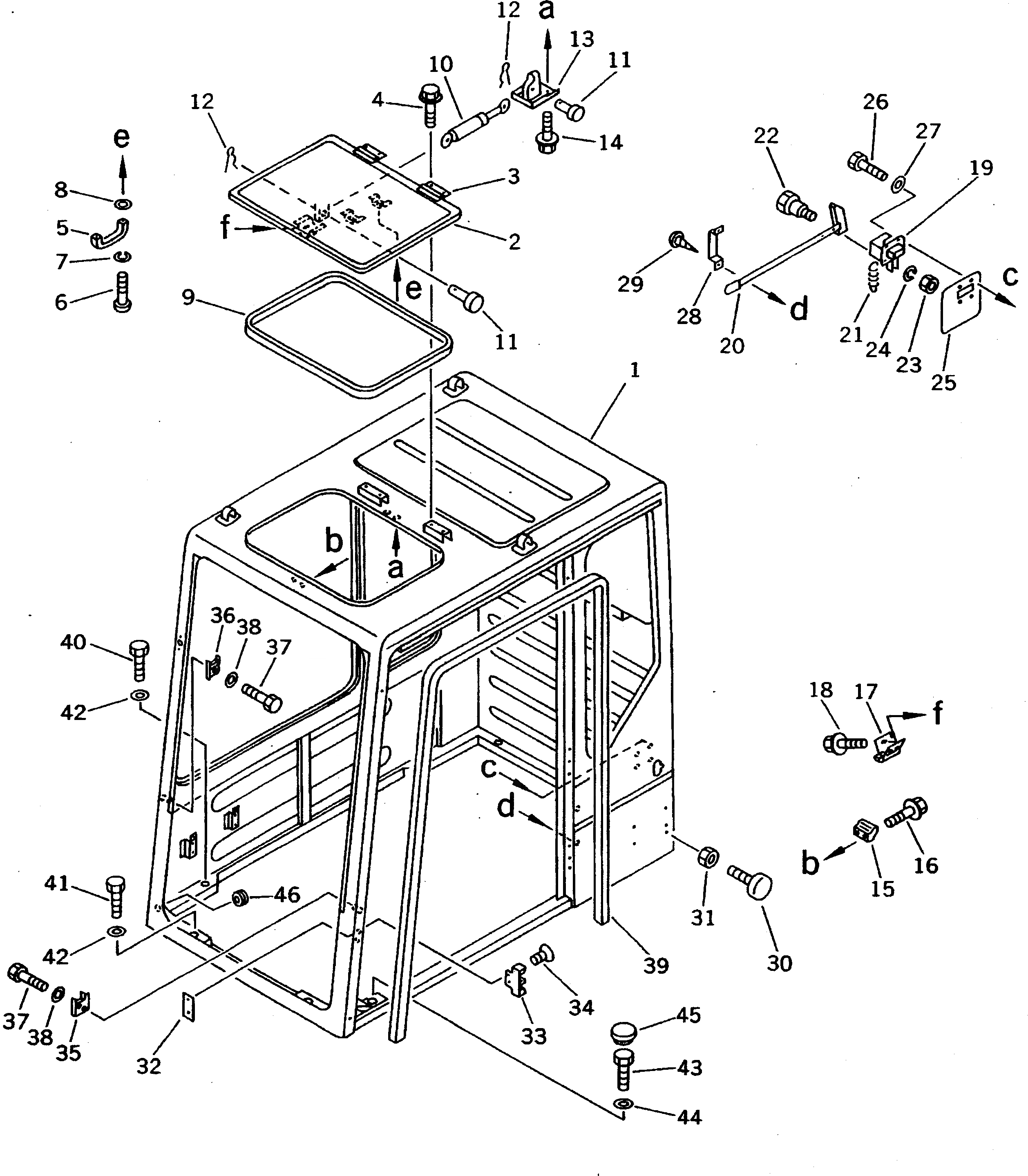

Запчасти Komatsu PC220-5C КАБИНА (/7) (КАБИНА) ЧАСТИ КОРПУСА

G-1

20Y-54-X1742

OPERATOR'S CAB GROUP

G-1

20Y-54-X1741

OPERATOR'S CAB GROUP

|$$3

====================

|1

20Y-54-00101

OPERATOR'S CAB ASS'Y

|1

20Y-54-00100

OPERATOR'S CAB ASS'Y

|$$6

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.5281 TO 5287.

1

CAB

|1

CAB

2

20Y-54-11262

COVER

3

20Y-54-11282

HINGE

4

01435-00616

BOLT

5

20Y-54-14590

HANDLE

6

01220-40610

SCREW

7

01602-20619

WASHER,SPRING

8

01641-20608

WASHER

9

20Y-54-14630

SEAL

10

205-54-63650

GAS SPRING ASS'Y

11

04205-10825

PIN

12

04052-10833

PIN

13

20Y-54-11383

BRACKET

14

01435-00616

BOLT

15

20Y-54-13492

BRACKET

16

01435-00616

BOLT

17

20Y-54-14321

LOCK ASS'Y

18

20Y-54-14370

BOLT

|19

20Y-54-11890

LOCK ASS'Y

19

20Y-54-13530

LOCK

20

20Y-54-13540

LEVER

21

20Y-54-13550

SPRING

22

20Y-54-13560

PIN

23

01580-10605

NUT

24

01602-20619

WASHER,SPRING

25

20Y-54-14530

PLATE

26

01010-50825

BOLT

27

01643-30823

WASHER

28

20Y-54-11490

BRACKET

29

01370-00412

SCREW

30

20Y-54-11611

STOPPER

31

01580-11008

NUT

32

20Y-54-11750

SEAT

33

205-54-71731

STRIKER

34

20Y-54-11740

SCREW

35

20Y-54-14480

BRACKET,L.H.

36

20Y-54-14490

BRACKET,R.H.

37

01010-50825

BOLT

38

01643-30823

WASHER

39

205-54-71560

TRIM

40

01010-51255

BOLT

41

01010-51270

BOLT

42

01643-31232

WASHER

43

01010-51225

BOLT

44

01643-31232

WASHER

45

20Y-54-13480

PLUG

46

20Y-54-18980

GROMMET

|$$55

====================
