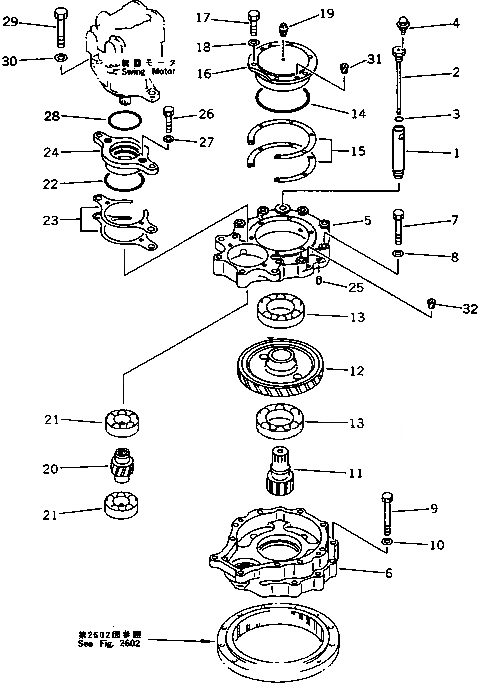

Запчасти Komatsu PC220-5C МЕХАНИЗМ ПОВОРОТА (/)(№-) ПОВОРОТН.

1

20Y-26-12310

FILLER

2

20Y-26-14290

GAUGE

3

07000-03025

O-RING

4

205-26-71680

BREATHER

|5

20Y-26-00010

SWING MACHINERY A.

|$$6

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2601 AND 2602.

5

20Y-26-14110

COVER

6

20Y-26-14120

COVER

7

01010-51690

BOLT

8

01643-31645

WASHER

9

01011-51620

BOLT

10

01643-31645

WASHER

11

20Y-26-14280

GEAR

12

20Y-26-14270

GEAR

13

06002-30218

BEARING

14

07000-05175

O-RING

15

20Y-26-00040

SHIM KIT

|15

SHIM¤ 0.4MM

|15

SHIM¤ 0.5MM

|15

SHIM¤ 0.6MM

|15

SHIM¤ 0.7MM

|15

SHIM¤ 0.8MM

16

20Y-26-14190

CAGE

17

01010-51030

BOLT

18

01643-31032

WASHER

19

07042-30108

PLUG

20

20Y-26-14260

GEAR

21

06002-30310

BEARING

22

07000-05125

O-RING

23

20Y-26-00030

SHIM KIT

|23

SHIM¤ 0.4MM

|23

SHIM¤ 0.5MM

|23

SHIM¤ 0.6MM

|23

SHIM¤ 0.7MM

|23

SHIM¤ 0.8MM

24

20Y-26-14130

CAGE

25

04020-01228

PIN,DOWEL

26

01010-51030

BOLT

27

01643-31032

WASHER

28

07000-02110

O-RING

29

01010-52075

BOLT

30

01643-32060

WASHER

31

07049-01012

PLUG

32

07049-01620

PLUG
