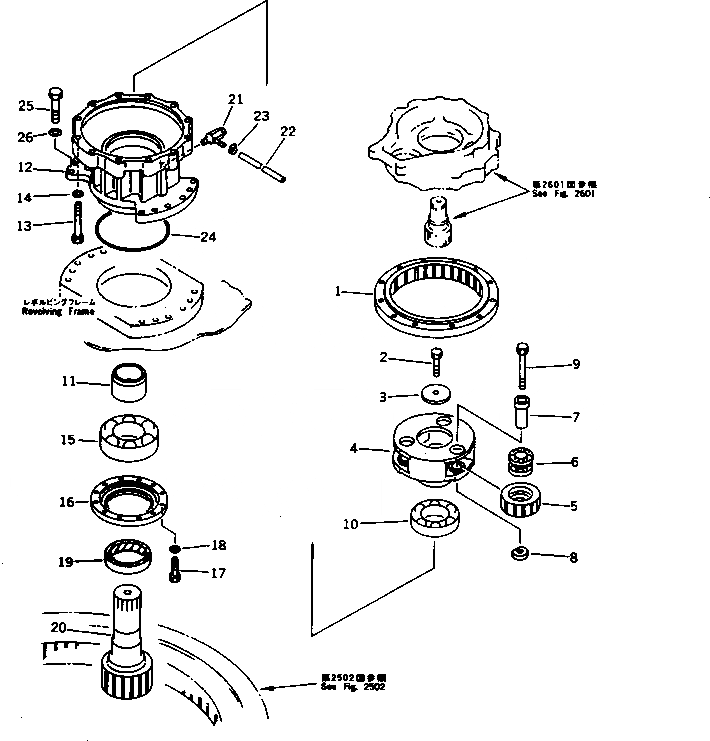

Запчасти Komatsu PC220-5C МЕХАНИЗМ ПОВОРОТА (/)(№-) ПОВОРОТН.

|1

20Y-26-00010

SWING MACHINERY A.

|$$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2601 AND 2602.

1

20Y-26-13130

GEAR

2

205-32-51210

BOLT

3

20Y-26-13320

PLATE

4

20Y-26-12271

CARRIER

5

20Y-26-13221

GEAR

6

20Y-26-13231

BEARING

7

20Y-26-13241

PIN

8

20Y-26-12291

HOLDER

9

01011-51200

BOLT

10

06000-22218

BEARING

11

20Y-26-13280

SPACER

12

20Y-26-12541

CASE

13

01011-51620

BOLT

14

01643-31645

WASHER

15

06000-22319

BEARING

16

20Y-26-13291

COVER

17

01010-51045

BOLT

18

01643-31032

WASHER

19

07012-00125

SEAL

20

20Y-26-13271

SHAFT

21

07730-50004

VALVE

22

205-26-71620

TUBE

23

07281-00197

CLAMP

24

07000-05240

O-RING

25

01010-52060

BOLT

26

01643-32060

WASHER
