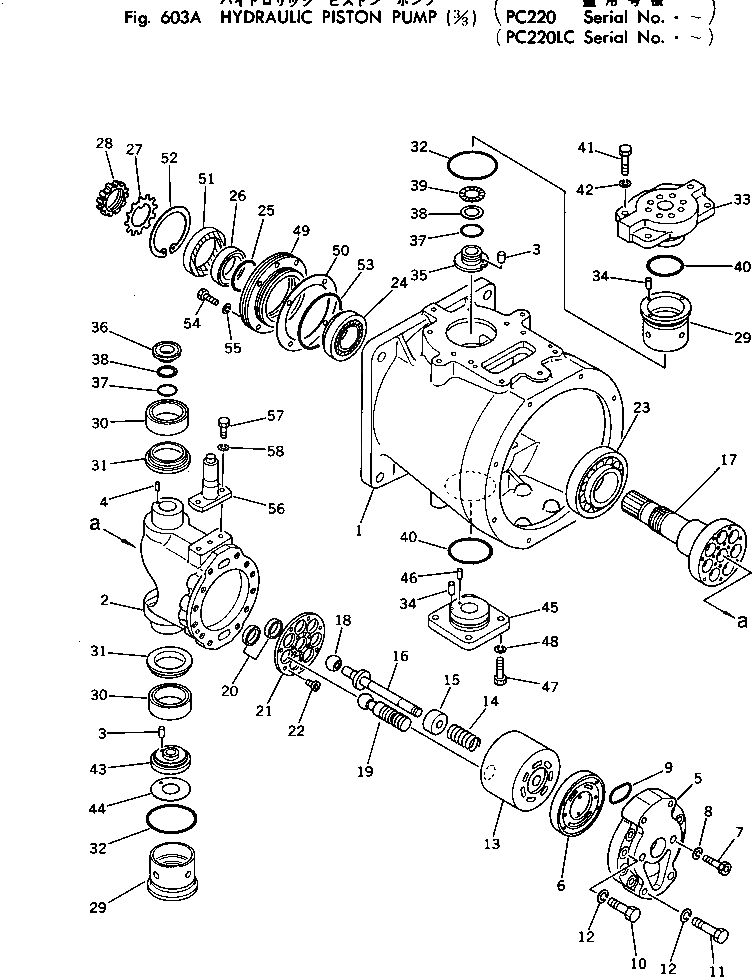

Запчасти Komatsu PC220LC-2 ГИДРАВЛ ПОРШЕНЬ НАСОС (/)(№.-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

706-46-21001

HYDRAULIC PUMP ASS'Y

|$1

706-46-20703

HYDRAULIC PUMP ASS'Y

|$2

706-46-42001

PUMP SUB ASS'Y

1

CASE,PUMP

2

CASE,CYLINDER

3

PIN,DOWEL

4

PIN,DOWEL

5

COVER,END

6

PLATE,VALVE

7

BOLT

8

WASHER,SPRING

9

O-RING

10

BOLT

11

BOLT

12

WASHER,SPRING

13

BLOCK,CYLINDER

14

SPRING

15

RING,CENTER

16

SHAFT,CENTER

17

SHAFT,DRIVE

18

BALL,CENTER

19

PISTON SUB ASS'Y

20

HOLDER

21

RETAINER

22

SCREW

23

BEARING

24

BEARING

25

O-RING

26

RING

27

WASHER,LOCK

28

NUT

29

SLEEVE

30

BEARING

31

SPACER

32

O-RING

33

BOSS,TRUNNION

34

PIN

35

RING

36

RING

37

O-RING

38

RING,BACK-UP

39

WASHER,WAVE

40

O-RING

41

BOLT

42

WASHER,SPRING

43

RING

44

WASHER,THRUST

45

BOSS,TRUNNION

46

PIN,DOWEL

47

BOLT

48

WASHER,SPRING

49

BOSS

50

GASKET

51

SEAL,OIL

52

RING,SNAP

53

O-RING

54

BOLT

55

WASHER,SPRING

56

PIN

57

BOLT

58

WASHER,SPRING

58

706-98-00780

SERVICE KIT,(EXCEPT JAPAN)

58

SHAFT

58

BEARING

58

PISTON SUB ASS'Y

58

RETAINER

58

HOLDER

58

BALL,CENTER

58

SHAFT,CENTER

58

RING,CENTER

58

SPRING

58

BLOCK,CYLINDER

58

SCREW

58

SEAL,OIL

58

GASKET

58

BOLT

58

WASHER,SPRING

58

WASHER,LOCK

58

O-RING

58

O-RING

58

O-RING

58

O-RING

58

O-RING

58

RING,BACK-UP

58

O-RING

58

O-RING

58

O-RING

58

GASKET

58

O-RING

58

O-RING

58

O-RING

58

O-RING

58

O-RING

58

O-RING

58

O-RING

58

O-RING

58

O-RING

58

706-98-05040

SERVICE KIT,(EXCEPT JAPAN)

58

706-66-40730

COVER ASS'Y

58

706-46-40070

PLATE,VALVE

58

706-75-40310

BOLT

58

01602-20619

WASHER,SPRING
