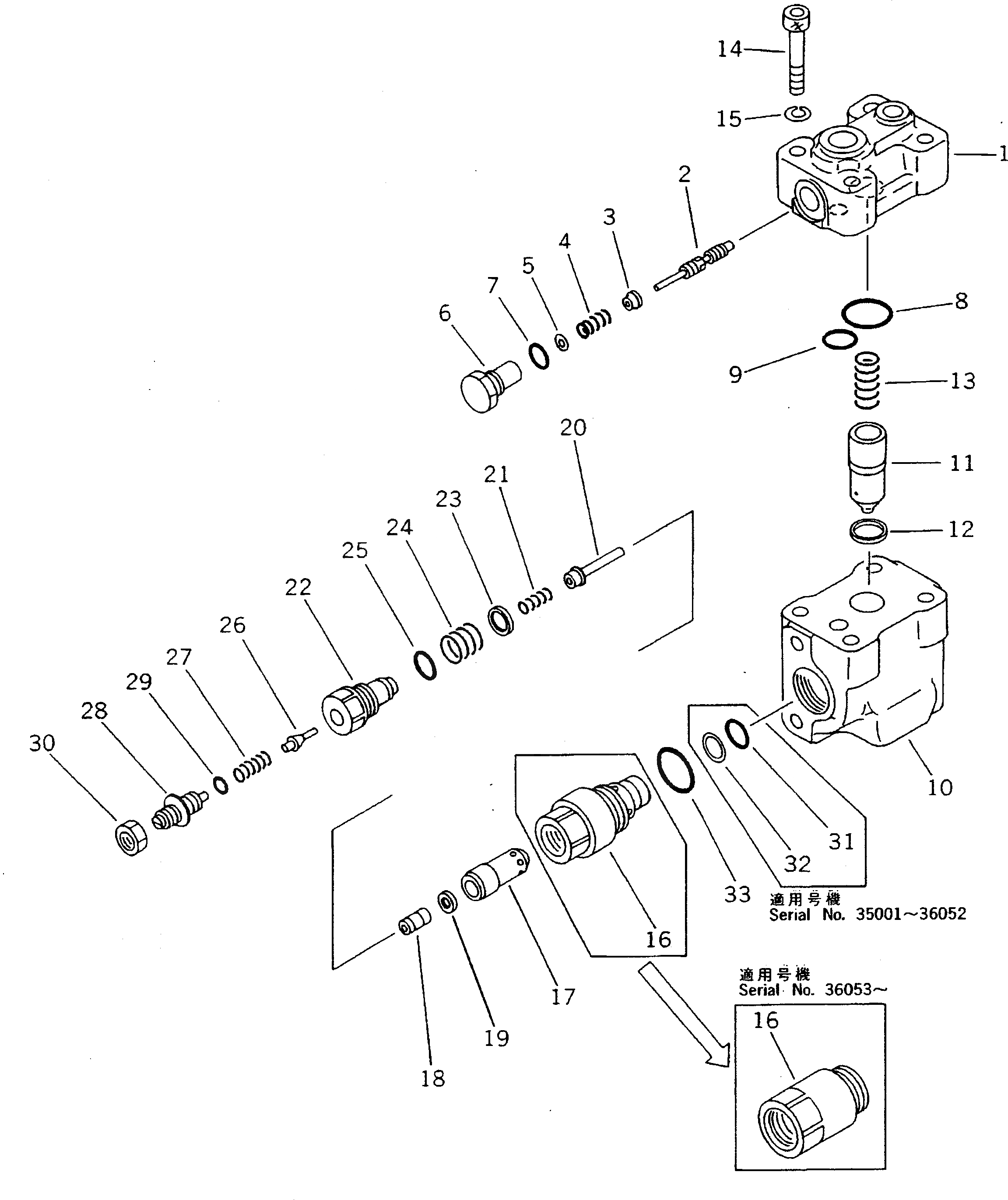

Запчасти Komatsu PC220LC-5 СТОПОРН. КЛАПАН УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

702-21-04311

LOCK VALVE ASS'Y

|$1

702-21-04320

LOCK VALVE ASS'Y

1

BODY

2

SPOOL

3

702-21-31350

SEAT

4

702-21-31231

SPRING

5

702-21-31360

SPACER

6

702-21-31241

PLUG

7

07002-01823

O-RING

8

07000-13030

O-RING

9

07000-02020

O-RING

10

702-21-35162

BODY

10

702-21-33111

BODY

11

702-21-35141

VALVE,CHECK

12

702-21-35130

SEAL

13

702-21-35120

SPRING

14

706-73-40330

BOLT

15

01602-21030

WASHER

|$18

709-70-74103

VALVE ASS'Y,SUCTION AND SAFETY

|$19

709-70-72103

VALVE ASS'Y,SUCTION AND SAFETY

16

709-70-71112

SLEEVE

16

709-70-71522

SLEEVE

17

SLEEVE

18

POPPET

19

SEAL

20

PISTON

21

709-70-71210

SPRING

22

PLUG

23

SEAL

24

709-70-71220

SPRING

25

07002-02434

O-RING

26

POPPET

27

SPRING

28

SCREW

29

O-RING

30

NUT

31

07000-12018

O-RING

32

07001-02018

RING,BACK-UP

33

709-25-11390

O-RING

33

07002-03634

O-RING
