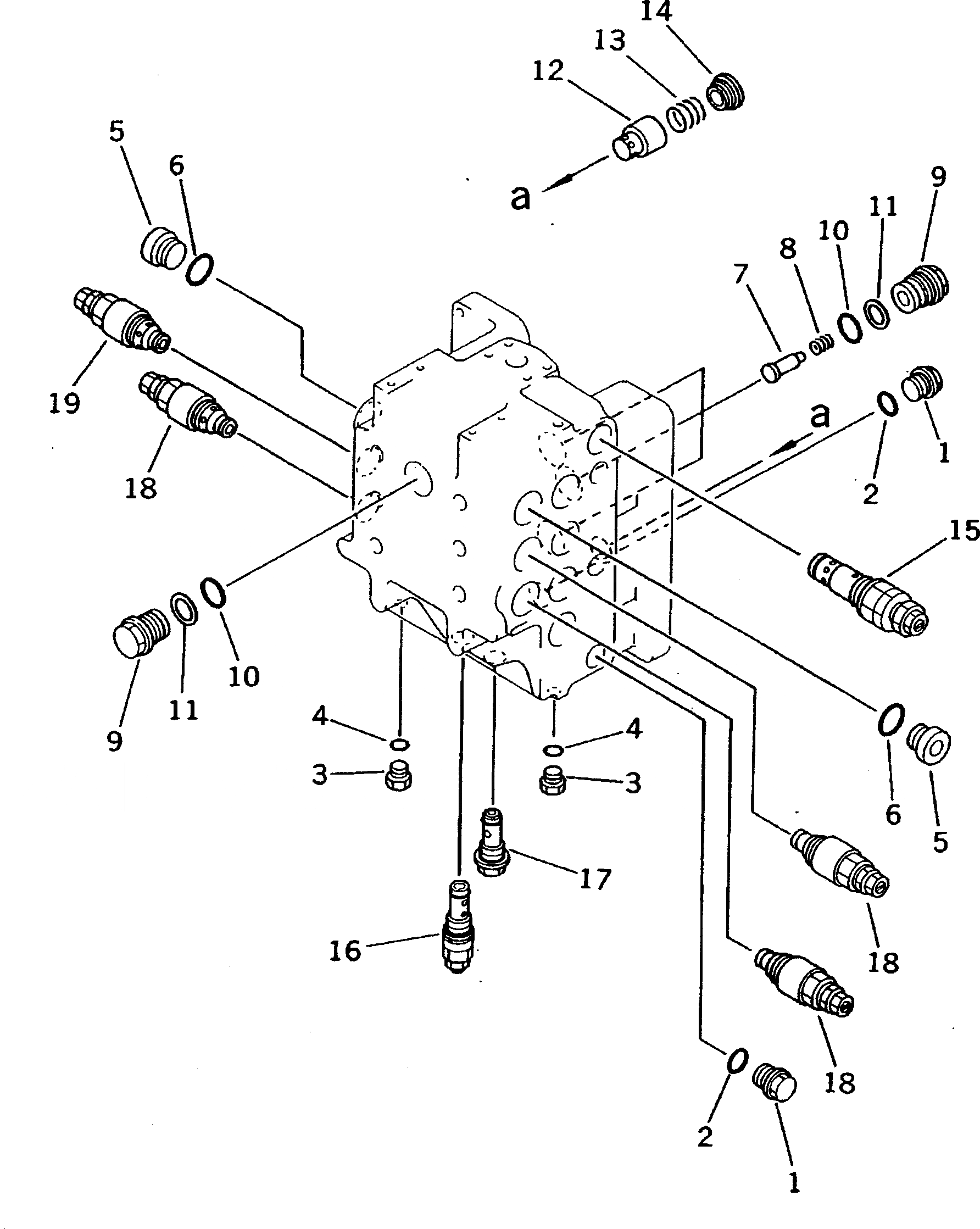

Запчасти Komatsu PC220LC-5C ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН (/7) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

709-79-22502

CONTROL VALVE ASS'Y

|1

709-79-22501

CONTROL VALVE ASS'Y

|1

709-79-22500

CONTROL VALVE ASS'Y

|1

709-79-22400

CONTROL VALVE ASS'Y

|1

709-74-92902

VALVE ASS'Y

|1

709-74-92901

VALVE ASS'Y

|1

709-74-92900

VALVE ASS'Y

|1

709-74-92800

VALVE ASS'Y

1

709-74-91860

PLUG

2

07002-12434

O-RING

3

07040-11612

PLUG

4

07002-01623

O-RING

5

709-74-91520

PLUG

|5

07040-13016

PLUG

6

709-25-11390

O-RING

|6

07002-03034

O-RING

7

709-74-92810

VALVE

8

709-75-92220

SPRING

9

709-74-92821

PLUG

10

700-93-11320

O-RING

11

700-93-11330

RING

12

709-74-92281

VALVE

13

709-74-92290

SPRING

14

709-74-92310

SEAT

15

709-80-52800

VALVE ASS'Y,RELIEF

16

709-70-55200

VALVE ASS'Y,RELIEF

17

709-90-91300

ORIFICE ASS'Y

18

709-70-74103

VALVE ASS'Y,SUCTION AND SAFETY

|18

709-70-71102

VALVE ASS'Y,SUCTION AND SAFETY

19

709-70-74203

VALVE ASS'Y,SUCTION AND SAFETY

|19

709-70-71203

VALVE ASS'Y,SUCTION AND SAFETY
