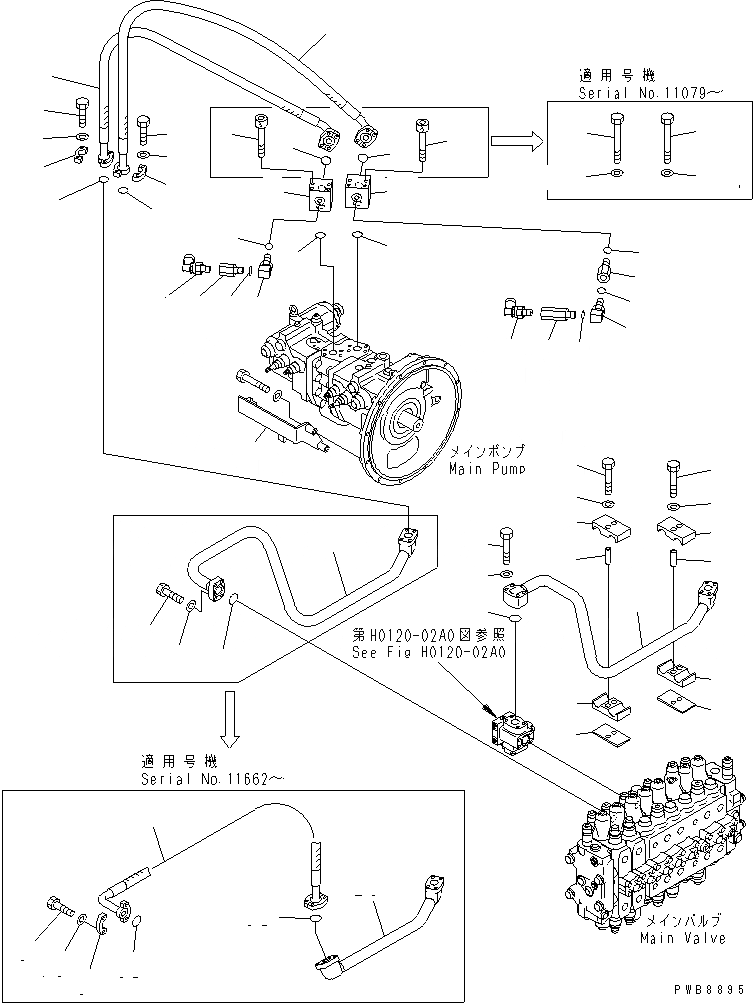

Запчасти Komatsu PC228US-1T ЛИНИЯ ПОДАЧИ ГИДРАВЛИКА
1
2
3
4
4
5
6
6
6A
6B
6B
7
7
7A
8
8
9
9
10
10
11
12
13
14
15
16
17
18
18
18A
19
20
21
22
23
24
25
26
27
28
29
29
30
31
32
33
34
35
35
36
36
36
36
37
37
38
38
39
39
40
41
41
1
22U-62-11310
BLOCK
2
21T-09-11460
O-RING
3
07073-01A11
HOSE
4
21T-09-11460
O-RING
5
22U-62-12710
HOSE, 1230MM
6
21T-09-11460
O-RING
6A
22U-62-14990
HOSE
6B
21T-09-11460
O-RING
7
01011-81000
BOLT
7
01252-71080
BOLT
7A
01643-31032
WASHER
8
07371-31049
FLANGE
8
07371-31049
FLANGE
9
07372-21035
BOLT
9
07372-21035
BOLT
10
01643-51032
WASHER
10
01643-51032
WASHER
11
209-62-61310
NIPPLE ASS'Y
12
22U-62-14490
ELBOW
13
07002-12034
O-RING
14
20Y-62-22160
ADAPTER
15
07002-11423
O-RING
16
22U-62-11320
BLOCK
17
21T-09-11460
O-RING
18
01011-81000
BOLT
18
01252-71080
BOLT
18A
01643-31032
WASHER
19
07371-31049
FLANGE
20
07372-21035
BOLT
21
01643-51032
WASHER
22
209-62-61310
NIPPLE ASS'Y
23
11T-61-11280
NIPPLE
24
07002-12034
O-RING
25
22U-62-14490
ELBOW
26
07002-12034
O-RING
27
20Y-62-27680
ADAPTER
28
07002-11423
O-RING
29
22U-62-11352
TUBE
29
22U-62-11351
TUBE
30
22U-62-11361
TUBE
31
07372-21040
BOLT
32
01643-51032
WASHER
33
07372-21060
BOLT
34
01643-51032
WASHER
35
22U-62-13531
PLATE
36
22U-62-13540
CUSHION
37
22X-70-12940
SPACER
38
01010-81285
BOLT
39
01643-31232
WASHER
40
22U-62-11392
BRACKET
41
07000-13035
O-RING
41
07000-13035
O-RING
