/ / / / / / СОЛЕНОИДНЫЙ КЛАПАН (EPC)(№-)

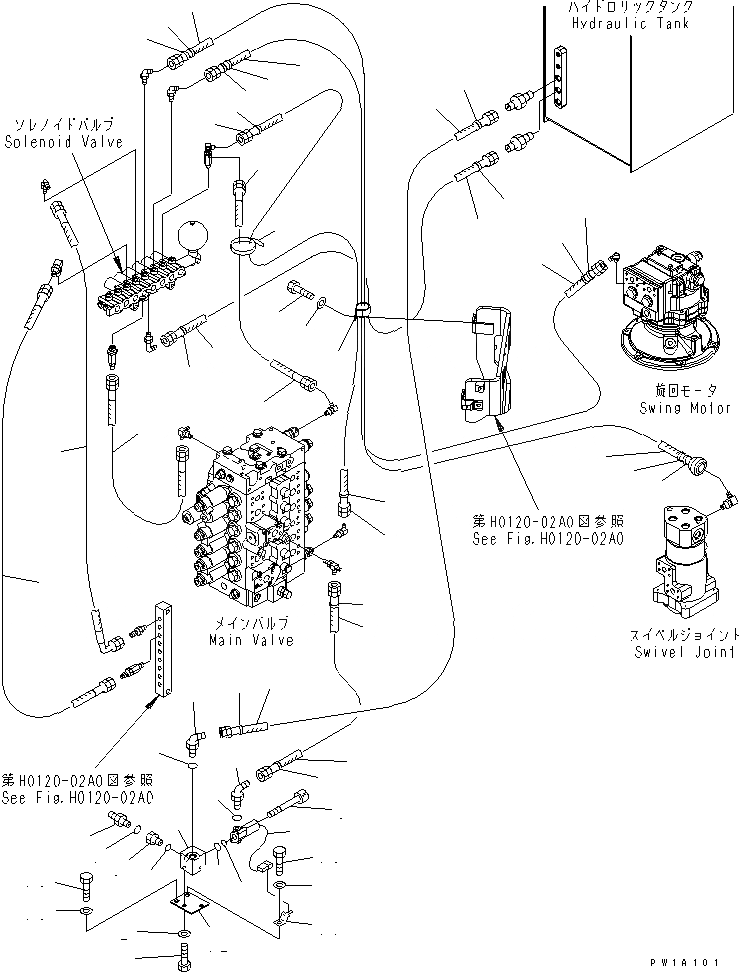

Запчасти Komatsu PC228US-3-AA СОЛЕНОИДНЫЙ КЛАПАН (EPC)(№-) ГИДРАВЛИКА
1
2
3
4
5
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
21
22
22
23
24
24
25
25
25
25
26
26
27
27
28
28
29
29
30
30
31
31
32
32
33
33
34
34
35
35
36
37
38
39
|1
22U-62-21200
VALVE ASS'Y
1
01010-81020
BOLT
2
01643-31032
WASHER
3
07000-12011
O-RING
4
07002-11423
O-RING
5
07002-12034
O-RING
6
07230-20210
UNION
7
07235-10315
ELBOW
8
203-60-62220
BOLT
9
20Y-62-21940
FILTER ASS'Y
10
BLOCK
11
21Y-62-17810
ELBOW
12
22U-62-21890
PLATE
13
700-93-11320
O-RING
14
702-21-07010
VALVE ASS'Y,EPC
15
01010-81225
BOLT
16
01643-31232
WASHER
17
08053-01510
CLIP
18
01010-81220
BOLT
19
01643-31232
WASHER
20
07184-00204
HOSE¤ 400MM
21
22U-62-26430
HOSE
|21
07184-00229
HOSE
22
07184-00318
HOSE¤ 1800MM
23
08034-00414
BAND
24
20Y-62-22790
BAND¤ RED
25
20Y-62-22810
BAND¤ YELLOW
26
20Y-62-22820
BAND¤ BLUE
27
20Y-62-22850
BAND¤ GREEN
28
20Y-62-22860
BAND¤ BROWN
29
20Y-62-23981
HOSE
30
22T-61-11710
HOSE
31
07184-00207
HOSE
32
07184-00313
HOSE
33
20Y-62-22840
BAND¤ BLACK
34
20Y-62-22850
BAND¤ GREEN
35
07184-00205
HOSE
36
22U-62-22660
HOSE ASS'Y
37
20Y-62-15951
CLIP
38
01010-81225
BOLT
39
01643-31232
WASHER
