/ / / / / / ОСНОВН. КОНСТРУКЦИЯ (OPERATORґS КАБИНА) (BLIND БОЛТ)

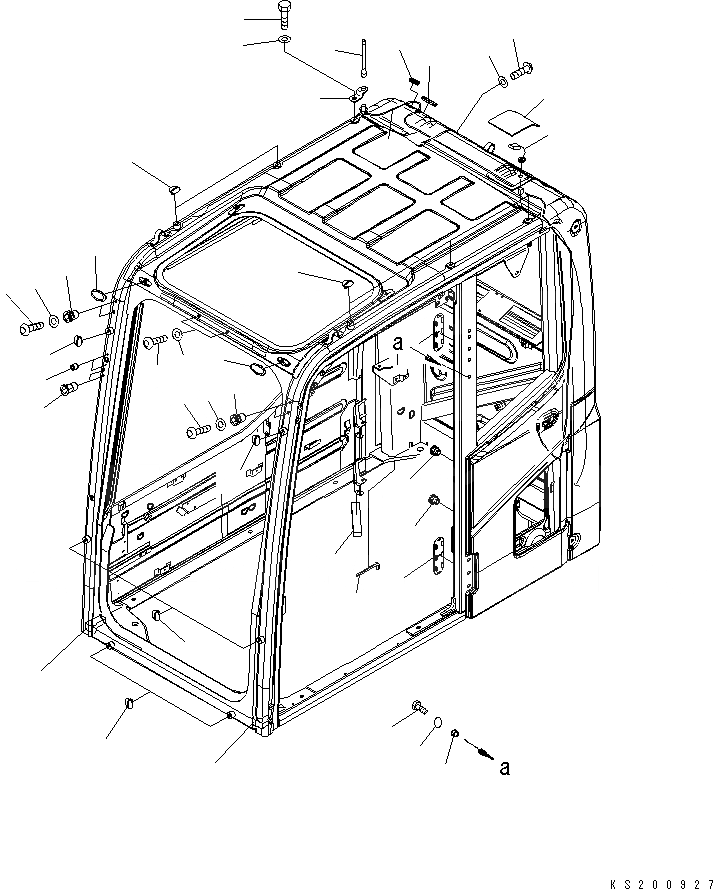

Запчасти Komatsu PC230NHD-8K ОСНОВН. КОНСТРУКЦИЯ (OPERATORґS КАБИНА) (BLIND БОЛТ) K OPERATORґS ОБСТАНОВКА И СИСТЕМА УПРАВЛЕНИЯ
22
8
1
20
19
7
21
17
5
6
4
18
14
3
16
15
13
3
2
12
25
13
26
4
32
5
31
30
29
23
11
10
28
24
27
9
30
29
4
4
2
11
10
9
6
13
11
21
5
6
21
19
20
18
7
8
2
9
10
11
6
16
17
1
12
12
25
23
22
14
15
2
3
24
26
27
28
|1
20Y-53-00481
CAB ASSEMBLY (ROPS)
|1
20Y-53-00480
CAB ASSEMBLY
|1
20Y-53-00083
CAB ASSEMBLY
|1
20Y-53-00082
CAB ASSEMBLY
|1
20Y-53-00081
CAB ASSEMBLY
1
20Y-53-12960
COVER
2
22B-54-17282
CAP
3
09415-02512
CAP
4
20Y-53-11390
CAP
5
20Y-53-11390
CAP
6
20Y-53-11380
CAP
7
01245-01016
SCREW
8
01643-71032
WASHER
9
01245-00616
SCREW
10
01643-70623
WASHER
11
20Y-53-12260
NUT
12
20Y-54-35451
NUT
13
20Y-53-12320
NUT
14
01245-01016
SCREW
15
01643-71032
WASHER
16
20Y-53-12580
SEAL
17
20Y-53-12740
TRIM
18
20Y-53-12270
NUT
19
01245-00816
SCREW
20
01643-70823
WASHER
21
20Y-53-18880
SEAL
22
8A13-10-4300
ANTENNA
23
20Y-53-12951
COVER
24
8A13-10-2100
ANTENNA
25
8A13-10-2220
CABLE, SAT
|25
8A13-10-2200
CABLE, SAT
26
20Y-53-15140
PLATE
27
01010-D1220
BOLT
28
01643-71232
WASHER
