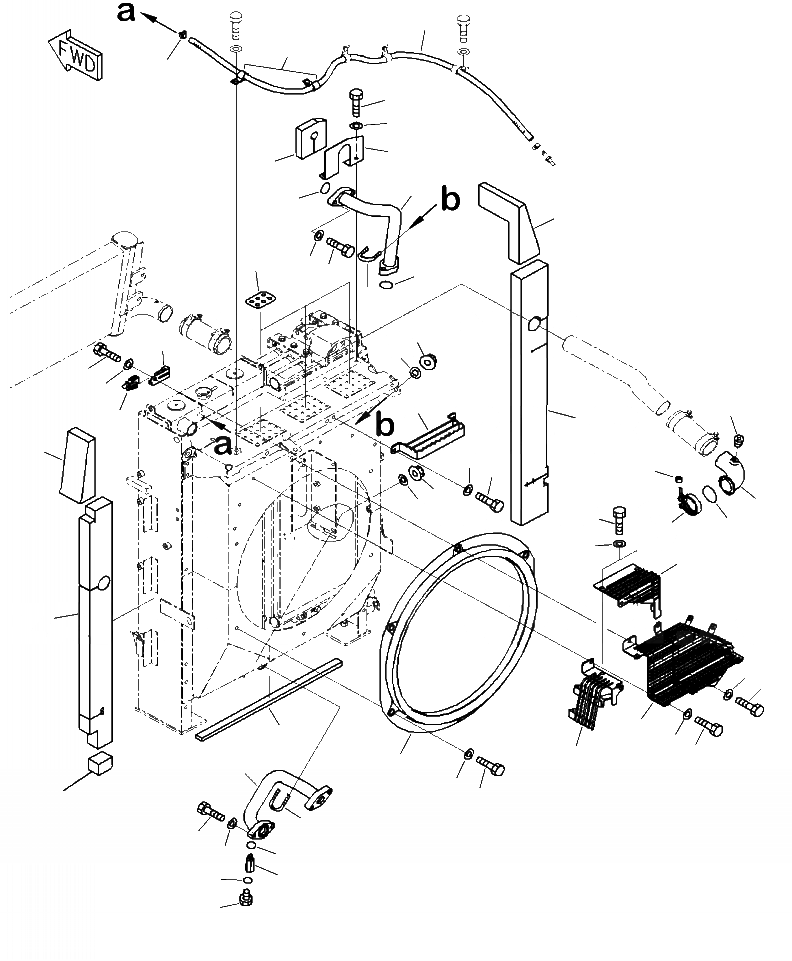

Запчасти Komatsu PC240LC-10 C- ЗАЩИТА ВЕНТИЛЯТОРА СИСТЕМА ОХЛАЖДЕНИЯ
29
30
31
34
35
32
33
19
10
39
36
19
16
11
12
52
46
47
48
45
40
37
41
38
17
18
43
44
42
17
18
5
6
7
1
2
3
4
8
9
25
28
27
26
24
49
51
50
13
14
16
23
22
15
21
20
1
2A5-03-11831
GUARD
2
01010-81020
BOLT
3
01643-31032
WASHER
4
2A5-03-11842
GUARD
5
01010-81020
BOLT
6
01643-31032
WASHER
7
2A5-03-11852
BRACKET
8
01010-81020
BOLT
9
01643-31032
WASHER
10
206-03-31391
TUBE
11
01010-81245
BOLT
12
01643-31232
WASHER
13
2A5-03-11681
TUBE
14
01010-81245
BOLT
15
01643-31232
WASHER
16
07283-34346
CLIP
17
01643-31032
WASHER
18
01597-01009
NUT
19
07000-13045
O-RING
20
07040-11409
PLUG
21
07002-11423
O-RING
22
20Y-60-22210
BODY
23
07002-11423
O-RING
24
6738-11-4320
PIPE
25
07043-70108
PLUG
26
6738-11-4370
O-RING
27
6738-11-4380
CLAMP
28
6738-11-4390
NUT
29
2A5-03-12111
HOSE
30
04434-51612
CLIP
31
11Y-09-11140
CLIP
|$31
2A5-03-11791
COVER
32
NSS
COVER
33
2A5-03-11780
SHEET
34
01010-81020
BOLT
35
01643-31032
WASHER
36
2A5-03-11861
SHEET
37
2A5-03-11870
SHEET
38
2A5-03-11881
SHEET
39
2A5-03-11891
SHEET
40
2A5-03-11920
SHEET
41
2A5-03-11930
SHEET
42
206-03-31470
STEP
43
01010-81030
BOLT
44
01643-31032
WASHER
45
20Y-979-6191
SENSOR
46
20Y-979-6271
BRACKET
47
01010-80616
BOLT
48
01643-30623
WASHER
49
22U-03-31170
SHROUD
50
01010-81030
BOLT
51
203-54-56970
WASHER
52
21T-00-31710
PLATE
