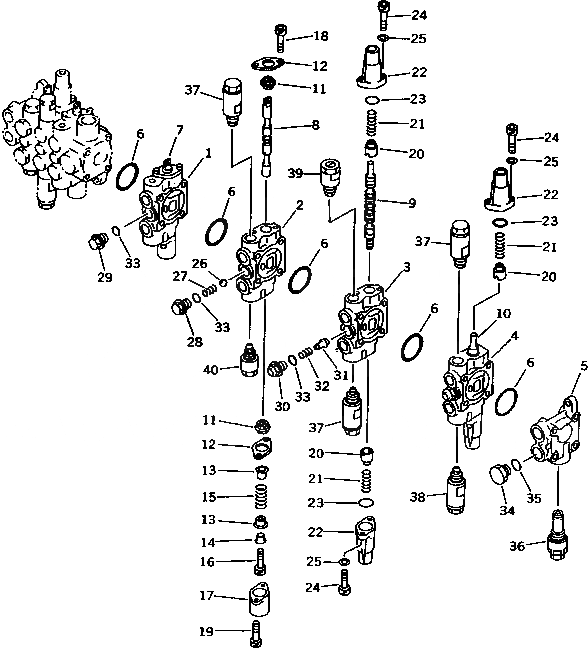

Запчасти Komatsu PC25-1 ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН (7-СЕКЦИОНН.) (/) ГИДРАВЛИКА

|1

709-37-12101

VALVE ASS'Y

1

BLOCK

2

BLOCK

3

BLOCK

4

BLOCK

5

BLOCK

6

07000-12055

O-RING

7

SPOOL,TRAVEL¤ R.H.

8

SPOOL,BOOM SWING

9

SPOOL,BUCKET

10

SPOOL,BOOM

11

709-32-11530

SEAL,DUST

12

709-32-11540

PLATE

13

709-32-11550

RETAINER

14

709-32-11560

COLLAR

15

709-32-11590

SPRING

16

01252-30620

BOLT

17

709-32-11570

COVER

18

01252-30610

BOLT

19

01252-30616

BOLT

20

709-32-12840

RETAINER

21

709-32-13510

SPRING

22

709-32-12851

CASE

23

709-32-11760

O-RING

24

01252-30622

BOLT

25

01641-20608

WASHER

26

04260-01270

BALL

27

709-32-11820

SPRING

28

709-32-11810

PLUG

29

709-32-11930

PLUG

30

709-32-12861

PLUG

31

709-32-12871

VALVE

32

722-10-91130

SPRING

33

07002-11823

O-RING

34

07040-12012

PLUG

35

07002-02034

O-RING

36

700-28-62001

VALVE ASS'Y,MAIN RELIEF

37

709-30-63602

VALVE ASS'Y,SUCTION AND SAFETY

38

709-30-68100

VALVE ASS'Y,SUCTION AND SAFETY

39

709-30-66700

SAFETY VALVE ASS'Y,SAFETY

40

709-30-61100

VALVE ASS'Y,SUCTION
