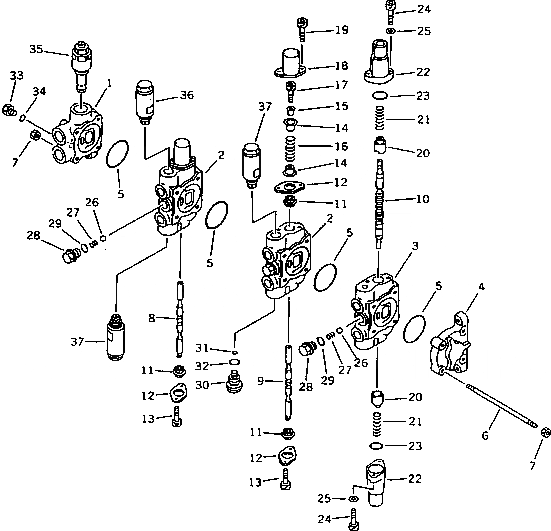

Запчасти Komatsu PC25-1 ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН (3-Х СЕКЦИОНН.) (/) (ДЛЯ НАКЛОНЯЕМ. МЕХАНИЧ. ОТВАЛ С ИЗМ. УГЛОМ ПОВОРОТА) ГИДРАВЛИКА

|1

709-33-12701

VALVE ASS'Y

1

BLOCK

2

BLOCK

3

BLOCK

4

COVER

5

07000-12055

O-RING

6

709-33-11510

STUD

7

01580-10806

NUT

8

SPOOL,BLADE TILT

9

SPOOL,BLADE LIFT

10

SPOOL,BOOM SWING

11

709-32-11530

SEAL,DUST

12

709-32-11540

PLATE

13

01252-30610

BOLT

14

709-32-11550

RETAINER

15

709-32-11560

COLLAR

16

709-32-11580

SPRING

17

01252-30620

BOLT

18

709-32-11570

COVER

19

01252-30616

BOLT

20

709-32-12840

RETAINER

21

709-32-13510

SPRING

22

709-32-12851

CASE

23

709-32-11760

O-RING

24

01252-30622

BOLT

25

01641-20608

WASHER

26

04260-01270

BALL

27

709-32-11820

SPRING

28

709-32-11810

PLUG

29

07002-11823

O-RING

30

709-32-11830

PLUG

31

709-32-11840

O-RING

32

07002-02034

O-RING

33

07040-11007

PLUG

34

07002-11023

O-RING

35

700-28-56000

RELIEF VALVE ASS'Y,MAIN RELIEF

36

709-30-63702

VALVE ASS'Y,SUCTION AND SAFETY

37

709-30-64101

VALVE ASS'Y,SUCTION AND SAFETY
