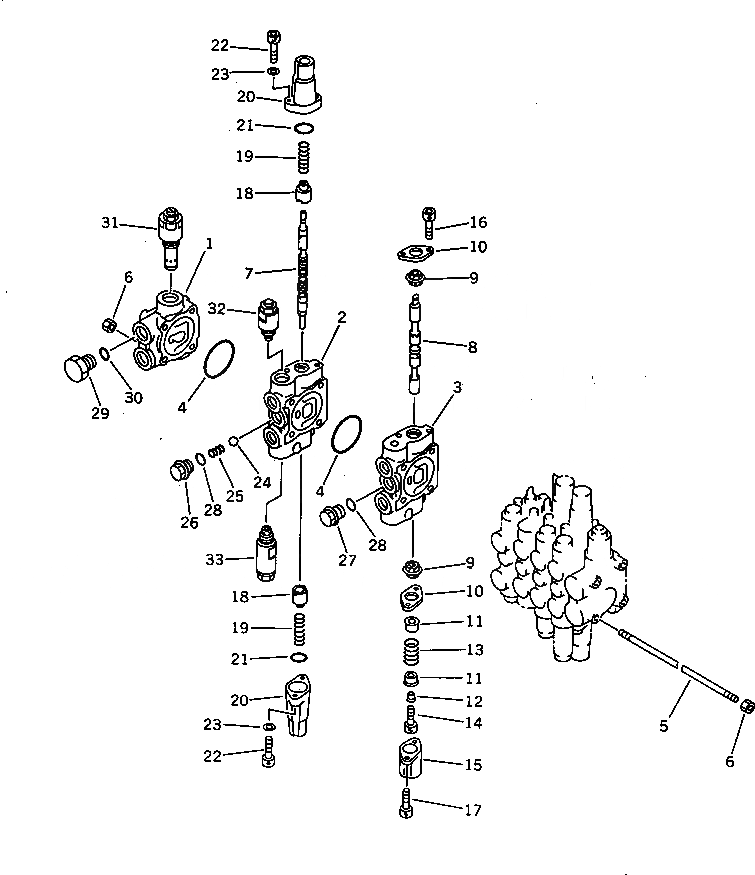

Запчасти Komatsu PC28UU-2 ОСНОВН. КЛАПАН (/) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

709-36-13800

VALVE ASS'Y

1

BLOCK

2

BLOCK

3

BLOCK

4

07000-12055

O-RING

5

709-36-11530

STUD

6

01580-10806

NUT

7

SPOOL,ARM

8

SPOOL,TRAVEL¤ L.H.

9

709-32-11530

SEAL,DUST

10

709-32-11540

PLATE

11

709-32-11550

RETAINER

12

709-32-11560

COLLAR

13

709-32-11580

SPRING

14

01252-30620

BOLT

15

709-32-11570

COVER

16

01252-30610

BOLT

17

01252-30616

BOLT

18

709-32-12840

RETAINER

19

709-32-13510

SPRING

20

709-32-12851

CASE

21

709-32-11760

O-RING

22

01252-30622

BOLT

23

01641-20608

WASHER

24

04260-01270

BALL

25

709-32-11820

SPRING

26

709-32-11810

PLUG

27

709-32-11930

PLUG

28

07002-11823

O-RING

29

07040-12012

PLUG

30

07002-02034

O-RING

31

700-28-63000

VALVE ASS'Y,RELIEF

32

709-30-65400

VALVE ASS'Y,SAFETY

33

709-30-64500

VALVE ASS'Y,SUCTION AND SAFETY
