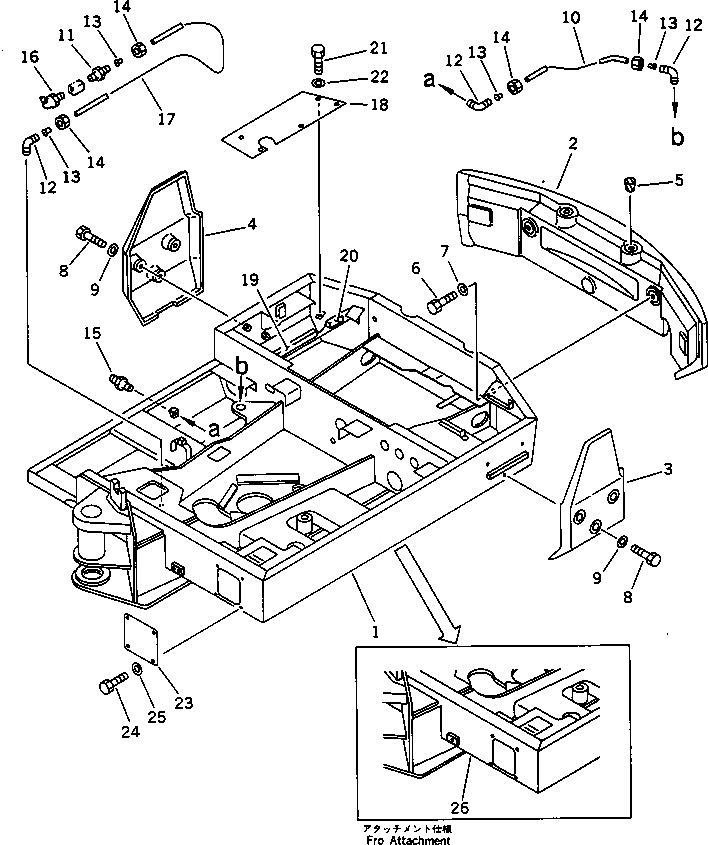

Запчасти Komatsu PC30-6 ОСНОВНАЯ РАМА (ДЛЯ МОЛОТА)(№-) СИСТЕМА УПРАВЛЕНИЯ И ОСНОВНАЯ РАМА

G-1

20S-970-X120

REVOLVING FRAME G.,(FOR BREAKER)

|$$2

====================

1

20S-970-3210

FRAME,REVOLVING

|$$4

====================

2

20S-46-31311

WEIGHT,COUNTER

3

20S-46-32321

WEIGHT,COUNTER, L.H.

4

20S-46-31331

WEIGHT,COUNTER, R.H.

5

07049-02025

PLUG

6

01010-52040

BOLT

7

01643-32060

WASHER

8

01010-51260

BOLT

9

01643-31232

WASHER

10

20T-46-31210

TUBE

11

20R-46-11160

CONNECTOR

12

20R-46-11150

ELBOW

13

07831-00411

SLEEVE

14

07832-00410

NUT,SLEEVE

15

07020-00000

FITTING,GREASE

16

07020-00675

FITTING,GREASE

17

20T-54-26760

TUBE

G-2

20S-970-X130

COVER GROUP

|$$22

====================

18

20S-970-3260

COVER

|$$24

====================

19

20S-46-31220

PACKING

20

20S-46-31230

PACKING

21

01010-51020

BOLT

22

01643-31032

WASHER

23

20S-46-31240

COVER

24

01010-50820

BOLT

25

01643-30823

WASHER

|$$32

====================

G-3

20S-973-X120

REVOLVING FRAME G.,(FOR ATTACHMENT)

|$$34

====================

26

20S-973-3210

FRAME,REVOLVING

|$$36

====================
