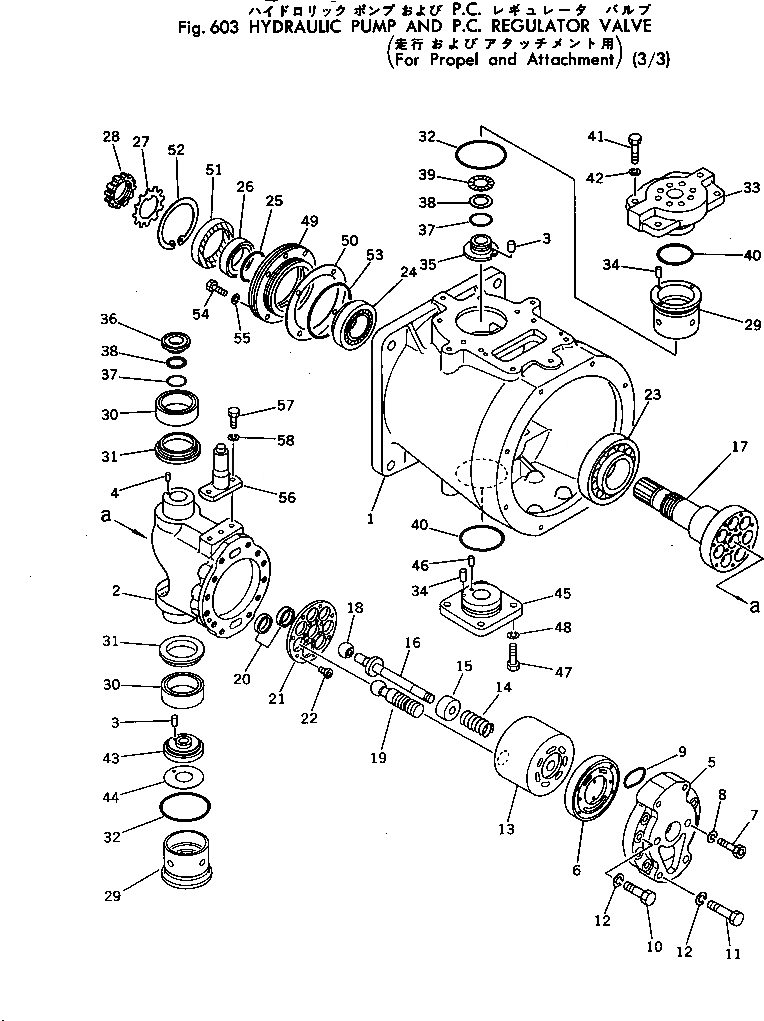

Запчасти Komatsu PC300-2 ГИДР. НАСОС. И P.C.РЕГУЛИР. КЛАПАН (F.P.A.A.) (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

706-46-22200

HYDRAULIC PUMP ASS'Y

|1

706-46-20703

HYDRAULIC PUMP ASS'Y

|1

706-46-42001

PUMP SUB ASS'Y

1

CASE

2

CASE

3

PIN,DOWEL

4

PIN,DOWEL

5

COVER

6

PLATE

7

BOLT

8

WASHER,SPRING

9

O-RING

10

BOLT

11

BOLT

12

WASHER,SPRING

13

BLOCK

14

SPRING

15

RING

16

SHAFT

17

SHAFT

18

BALL

19

PISTON SUB ASS'Y

20

HOLDER

21

RETAINER

22

SCREW

23

BEARING

24

BEARING

25

O-RING

26

RING

27

WASHER

28

NUT

29

SLEEVE

30

BEARING

31

SPACER

32

O-RING

33

BOSS

34

PIN

35

RING,SEAL

36

RING,SEAL

37

O-RING

38

RING,BACK-UP

39

WASHER

40

O-RING

41

BOLT

42

WASHER,SPRING

43

RING

44

WASHER

45

BOSS

46

PIN,DOWEL

47

BOLT

48

01602-21030

WASHER,SPRING

49

706-46-40360

BOSS

50

706-46-40970

GASKET

51

706-76-40920

SEAL

52

04065-09030

RING

53

07000-02100

O-RING

54

01010-51035

BOLT

55

01602-21030

WASHER,SPRING

56

706-46-40290

PIN

57

01010-51030

BOLT

58

01602-21030

WASHER,SPRING

2K

706-98-00780

SERVICE KIT,(EXCEPT JAPAN)

|2K

SHAFT

|2K

BEARING

|2K

PISTON SUB ASS'Y

|2K

RETAINER

|2K

HOLDER

|2K

BALL

|2K

SHAFT

|2K

RING

|2K

SPRING

|2K

BLOCK

|2K

SCREW

|2K

SEAL

|2K

GASKET

|2K

BOLT

|2K

WASHER

|2K

WASHER

|2K

O-RING

|2K

O-RING

|2K

O-RING

|2K

O-RING

|2K

O-RING

|2K

RING

|2K

O-RING

|2K

O-RING

|2K

O-RING

|2K

GASKET

|2K

O-RING

|2K

O-RING

|2K

O-RING

|2K

O-RING

|2K

O-RING

|2K

O-RING

|2K

O-RING

|2K

O-RING

3K

706-98-05040

SERVICE KIT,(EXCEPT JAPAN)

|3K

COVER ASS'Y

|3K

PLATE

|3K

BOLT

|3K

WASHER
