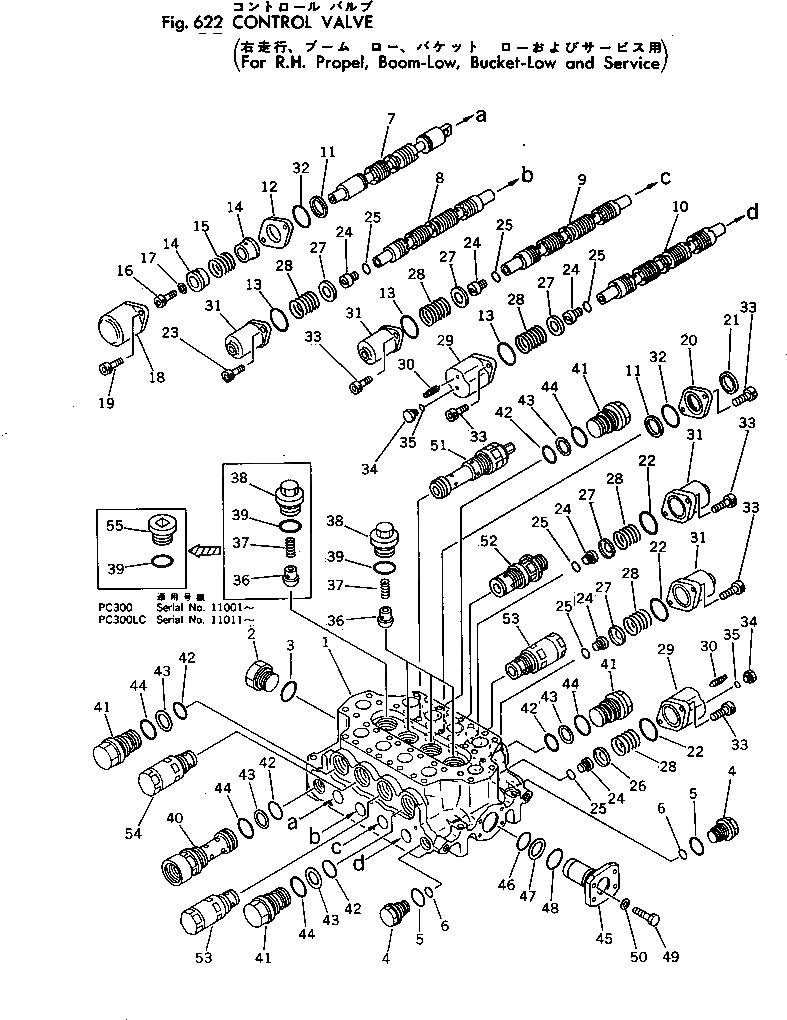

Запчасти Komatsu PC300-2 УПРАВЛЯЮЩ. КЛАПАН (F.ПРАВ.P.B-L.B-L.A.S.) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

700-94-32000

VALVE ASS'Y

|1

700-94-34000

VALVE ASS'Y

1

BODY,VALVE

2

07040-13618

PLUG

3

07002-13634

O-RING

4

700-22-11360

PLUG

5

07002-02434

O-RING

6

07000-02014

O-RING

7

SPOOL

8

SPOOL

9

SPOOL

10

SPOOL

11

700-93-11140

U-PACKING

12

700-93-11180

PLATE

13

07430-71380

O-RING

14

700-93-11870

RETAINER

15

700-93-11890

SPRING

16

01252-31016

BOLT

17

01643-31032

WASHER

18

700-93-11220

CASE

19

01252-30825

BOLT

20

700-93-11150

SEAL,DUST

21

700-93-11161

PLATE

22

07430-71380

O-RING

23

01252-30820

BOLT

24

700-93-11230

PLUG

25

07002-11423

O-RING

26

700-94-11680

RETAINER

27

700-93-12380

RETAINER

28

700-93-11371

SPRING

29

700-94-11670

CASE

30

20B-27-11210

BLEEDER

31

700-93-12390

CASE

32

07430-71380

O-RING

33

01252-30820

BOLT

34

07040-11409

PLUG

35

07002-01423

O-RING

36

700-93-11461

VALVE,CHECK

|36

700-93-11461

VALVE,CHECK

37

700-93-11471

SPRING

|37

700-93-11471

SPRING

38

700-93-11481

PLUG

|38

700-93-11481

PLUG

39

07002-13634

O-RING

40

700-93-12630

NIPPLE

41

700-93-11350

PLUG

42

700-93-11320

O-RING

43

700-93-11330

RING,BACK-UP

44

07002-03634

O-RING

45

700-93-12530

FLANGE

46

07000-13032

O-RING

47

07001-03032

RING,BACK-UP

48

07000-03035

O-RING

49

01010-51225

BOLT

50

01640-21223

WASHER

51

700-92-55000

RELIEF VALVE ASS'Y,RELIEF

52

700-90-75000

VALVE ASS'Y,SAFETY

53

700-90-68001

VALVE ASS'Y,SAFETY AND SUCTION

54

700-90-67000

VALVE ASS'Y,SAFETY AND SUCTION

55

700-93-11380

PLUG
