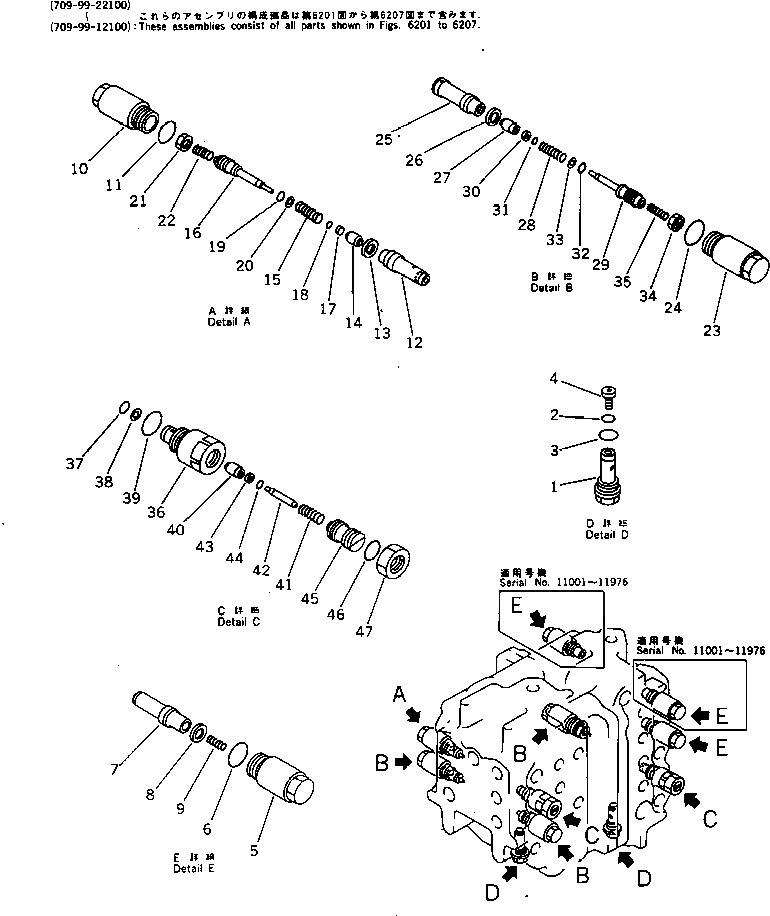

Запчасти Komatsu PC300-3 УПРАВЛЯЮЩ. КЛАПАН (7/7) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

709-99-21101

CONTROL VALVE ASS'Y

|$1

709-99-21100

CONTROL VALVE ASS'Y

|$2

709-99-11109

CONTROL VALVE ASS'Y

|$3

709-99-11108

CONTROL VALVE ASS'Y

|$4

709-99-11107

CONTROL VALVE ASS'Y

|$5

709-99-11105

CONTROL VALVE ASS'Y

|$6

709-99-11104

CONTROL VALVE ASS'Y

|$7

709-99-11103

CONTROL VALVE ASS'Y

|$8

709-99-11102

CONTROL VALVE ASS'Y

|$9

709-99-11101

CONTROL VALVE ASS'Y

|$10

709-99-11100

CONTROL VALVE ASS'Y

|$11

709-90-91300

ORIFICE ASS'Y

1

ORIFICE

2

07000-02014

O-RING

3

07002-02434

O-RING

4

SENSOR

|$16

700-90-74001

VALVE ASS'Y

|$17

700-90-74001

VALVE ASS'Y

5

700-90-61211

SLEEVE

6

07002-03634

O-RING

7

VALVE

8

SEAL

9

700-90-61170

SPRING

|$23

709-90-63101

VALVE ASS'Y,SUCTION AND SAFETY

|$24

709-90-63100

VALVE ASS'Y,SUCTION AND SAFETY

|$25

709-90-61100

VALVE ASS'Y,SUCTION AND SAFETY

10

700-90-61211

SLEEVE

11

07002-03634

O-RING

12

VALVE

12

VALVE

13

SEAL

14

POPPET

15

SPRING

16

PISTON

17

SEAL

18

O-RING

19

O-RING

20

RING,BACK-UP

21

NUT

21

NUT

22

700-90-61170

SPRING

|$41

709-90-63201

VALVE ASS'Y,SUCTION AND SAFETY

|$42

709-90-63200

VALVE ASS'Y,SUCTION AND SAFETY

|$43

709-90-61200

VALVE ASS'Y,SUCTION AND SAFETY

23

700-90-61211

SLEEVE

24

07002-03634

O-RING

25

VALVE

25

VALVE

26

SEAL

27

POPPET

28

SPRING

29

PISTON

30

SEAL

31

O-RING

32

O-RING

33

RING,BACK-UP

34

NUT

34

NUT

35

700-90-61170

SPRING

|$59

709-90-62100

SAFETY VALVE ASS'Y

36

SLEEVE

37

07000-12018

O-RING

38

07001-02018

RING,BACK-UP

39

07002-03634

O-RING

40

POPPET

41

SPRING

42

PISTON

43

SEAL

44

O-RING

45

SCREW

46

O-RING

47

NUT
