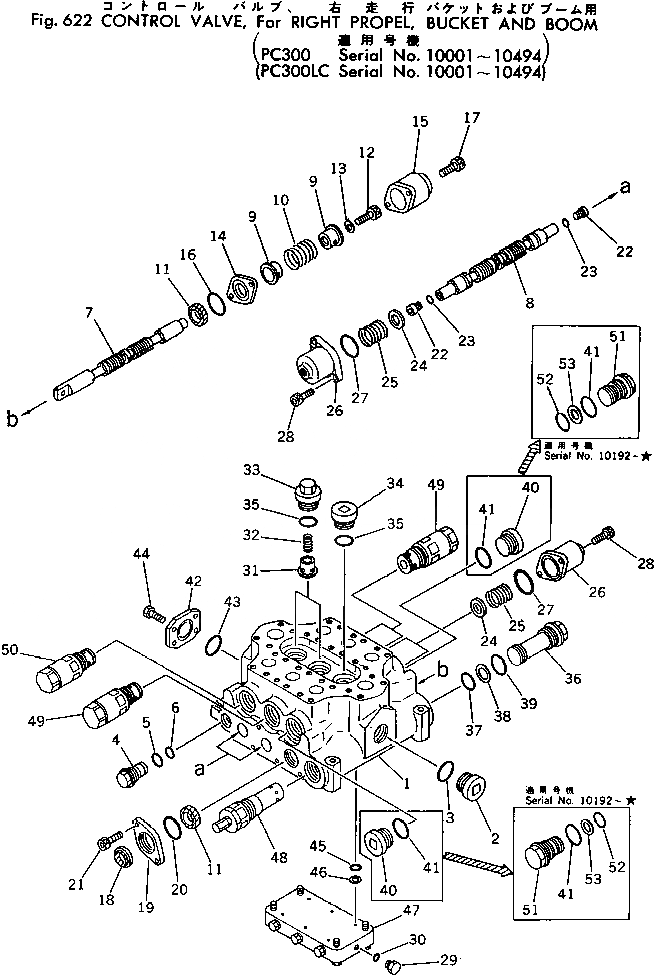

Запчасти Komatsu PC300LC-1 УПРАВЛЯЮЩ. КЛАПАН¤ ДЛЯ ПРАВ. ХОД¤ СТРЕЛА И КОВШ(№-9) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

700-93-24002

CONTROL VALVE A.

|$1

700-93-24001

CONTROL VALVE A.

1

700-93-12182

BODY

1

BODY

2

07040-13618

PLUG

3

07002-13634

O-RING

4

700-22-11360

PLUG

5

07002-02434

O-RING

6

07000-02014

O-RING

7

SPOOL

8

SPOOL

9

700-93-11870

RETAINER

10

700-93-11890

SPRING

11

700-93-11140

U-PACKING

12

01252-31016

BOLT

13

01643-31032

WASHER

14

700-93-11180

PLATE

15

700-93-11220

CASE

16

07430-71380

O-RING

17

01252-30825

BOLT

18

700-93-11150

SEAL,DUST

19

700-93-11161

PLATE

20

07430-71380

O-RING

21

01252-30820

BOLT

22

700-93-11230

PLUG

23

07002-11423

O-RING

24

700-93-12380

RETAINER

25

700-93-11371

SPRING

26

700-93-12390

CASE

27

07430-71380

O-RING

28

01252-30820

BOLT

29

07040-11409

PLUG

30

07002-01423

O-RING

31

700-93-11461

VALVE

32

700-93-11471

SPRING

33

700-93-11481

PLUG

34

700-93-11380

PLUG

35

07002-13634

O-RING

36

700-93-11310

PLUG

37

700-93-11320

O-RING

38

700-93-11330

RING

39

07002-03634

O-RING

40

07040-13618

PLUG

41

07002-03634

O-RING

42

700-93-11940

FLANGE

43

07430-71380

O-RING

44

01010-51025

BOLT

45

07000-12010

O-RING

46

700-93-12270

RING

47

700-90-92002

CHECK VALVE ASS'Y

47

700-90-92001

CHECK VALVE ASS'Y

48

700-90-59000

MAIN RELIEF VALVE A.

49

700-90-61000

VALVE ASS'Y,SUCTION AND SAFETY

50

700-90-67000

VALVE ASS'Y,SUCTION AND SAFETY

51

700-93-11350

PLUG

52

700-93-11320

O-RING

53

700-93-11330

RING,BACK-UP
