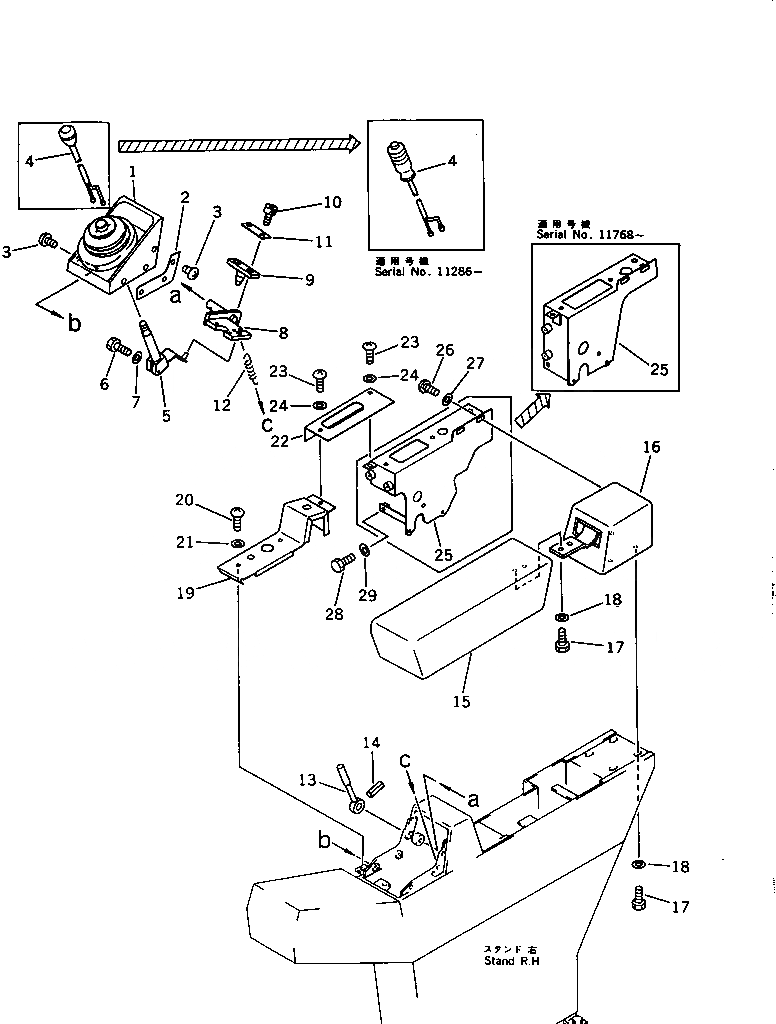

Запчасти Komatsu PC300LC-3 WRIST УПРАВЛ-Е И СТОЙКА¤ ПРАВ. (/) ПОВОРОТН. И СИСТЕМА УПРАВЛЕНИЯ

1

205-43-71223

BOOT

2

205-43-71991

COVER

3

205-43-71280

SCREW

4

205-43-73700

SWITCH ASS'Y,HORN (SEE FIG.4439)

4

205-06-71360

SWITCH,HORN

5

205-43-73760

LEVER

5

207-43-33261

LEVER

6

01010-50825

BOLT

7

01643-30823

WASHER

8

205-43-71944

LEVER

9

205-43-73561

PLATE

10

01252-40614

BOLT

10

01252-40616

BOLT

11

205-43-73410

PLATE

12

205-43-73340

SPRING

13

205-43-71291

LEVER

14

04025-00520

PIN,SPRING

15

205-43-73580

CUSHION

15

205-43-71981

CUSHION

16

205-43-71622

COVER

17

01010-50820

BOLT

18

01643-50823

WASHER

19

205-43-71961

COVER

20

205-43-71280

SCREW

21

205-43-73420

WASHER

22

207-43-33142

PLATE

22

207-43-33141

PLATE

23

205-43-71280

SCREW

24

205-43-73420

WASHER

25

205-43-71972

COVER

25

207-43-33150

COVER

26

198-911-3430

SCREW

27

198-911-3160

WASHER

28

01010-50820

BOLT

29

01643-30823

WASHER
