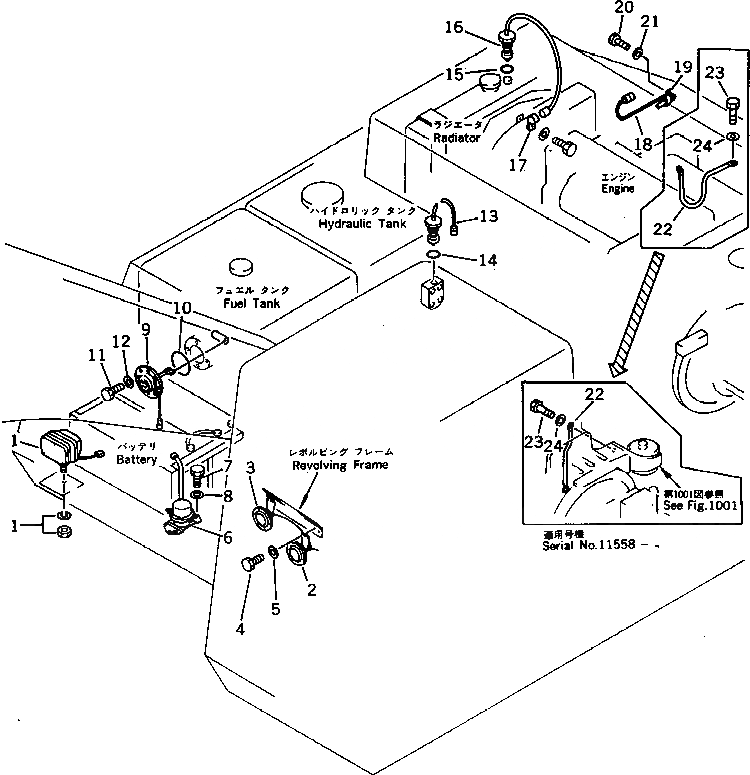

Запчасти Komatsu PC300LC-3 ЭЛЕКТРИКА (КОМПОНЕНТЫ) КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

22W-06-12381

LAMP ASS'Y

1

22W-06-12170

BULB

2

205-06-64430

HORN,LOW

3

175-06-39170

HORN,HIGH

4

01010-50816

BOLT

5

01643-30823

WASHER

6

08088-10000

SWITCH,BATTERY

7

01010-50816

BOLT

8

01643-30823

WASHER

9

7861-91-4700

SENSOR,FUEL

9

7861-99-4700

SENSOR,FUEL

10

07000-02085

O-RING

11

01010-51016

BOLT

11

01010-51025

BOLT

12

01643-31032

WASHER

13

7861-91-4520

SENSOR,HYDRAULIC OIL

13

7861-99-4520

SENSOR,HYDRAULIC OIL

14

07002-13634

O-RING

14

07002-23634

O-RING

15

07002-13634

O-RING

15

07002-23634

O-RING

16

7861-99-4520

SENSOR,RADIATOR

17

195-06-41820

CLIP

17

08036-01814

CLIP

18

7861-91-3310

SENSOR,WATER TEMPERATURE

18

7861-99-3300

SENSOR,WATER TEMPERATURE

18

207-06-31330

SENSOR,WATER TEMPERATURE (ANALOG)

19

600-050-2610

CLIP

20

01010-50820

BOLT

21

01643-30823

WASHER

22

08028-15011

WIRE, 110MM

22

08028-15055

WIRE, 550MM

22

08028-15065

WIRE, 650MM

23

01010-51020

BOLT

23

01010-51020

BOLT

24

01643-31032

WASHER

24

01643-31032

WASHER
