/ / / / / / FIG. H8-A ГИДРОЛИНИЯ - ОСНОВН. ЛИНИЯ PPC - КЛАПАН ЛИНИИ PPC

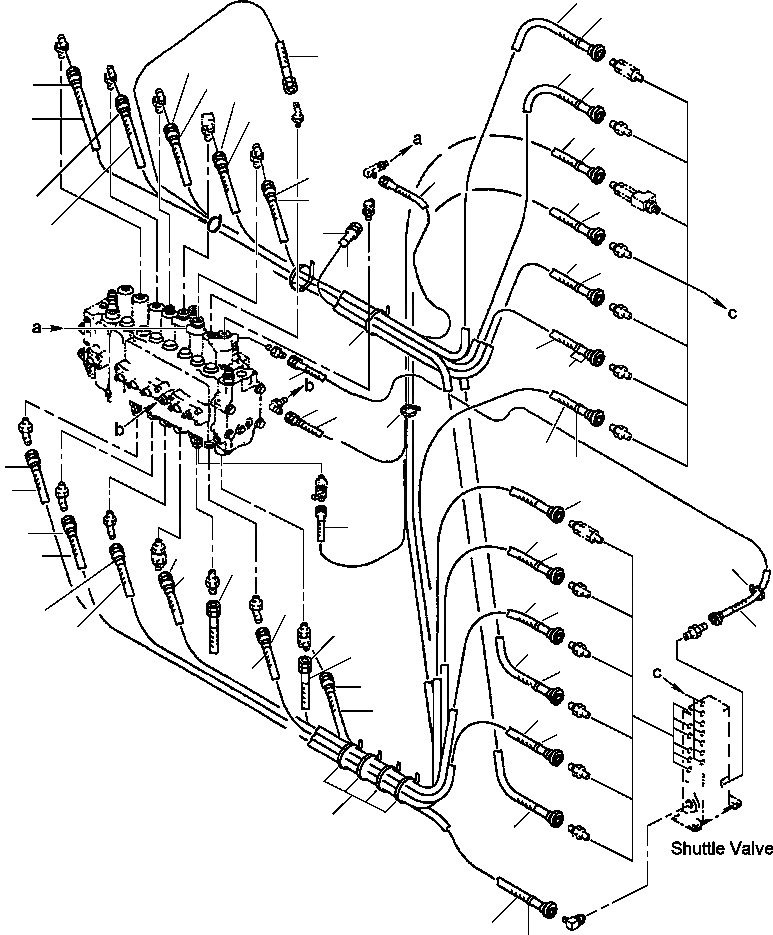

Запчасти Komatsu PC300LC-6LE FIG. H8-A ГИДРОЛИНИЯ - ОСНОВН. ЛИНИЯ PPC - КЛАПАН ЛИНИИ PPC ГИДРАВЛИКА
6
10
3
9
7
14
12
16
5
15
1
18
27
10
2
8
6
14
11
7
13
4
13
4
9
17
12
20
32
11
8
17
23
29
25
24
22
2
28
21
28
21
33
22
30
20
26
30
29
1
32
23
5
16
15
19
18
27
19
26
31
3
24
25
1
203-62-52260
HOSE, 1300 mm
2
203-62-52530
HOSE, 800 mm
3
207-62-63421
HOSE, 920 mm
4
207-62-63630
HOSE
5
20Y-62-22661
HOSE, 470 mm
6
20Y-62-22671
HOSE, 355 mm
7
20Y-62-22681
HOSE, 520 mm
8
20Y-62-22691
HOSE, 315 mm
9
20Y-62-22721
HOSE, 535 mm
10
20Y-62-22790
BAND, RED
11
20Y-62-22810
BAND, YELLOW
12
20Y-62-22820
BAND, BLUE
13
20Y-62-22830
BAND, WHITE
14
20Y-62-22840
BAND, BLACK
15
20Y-62-22850
BAND, GREEN
16
20Y-62-22860
BAND, BROWN
17
08034-20536
STRAP, TIE
18
207-62-63640
HOSE
19
20Y-62-22721
HOSE, 535 mm
20
20Y-62-22741
HOSE
21
20Y-62-22761
HOSE
22
20Y-62-23861
HOSE, 1050 mm
23
20Y-62-22781
HOSE, 650 mm
24
20Y-62-23831
HOSE, 800 mm
25
20Y-62-22840
BAND, BLACK
26
20Y-62-22790
BAND, RED
27
20Y-62-22820
BAND, BLUE
28
20Y-62-22830
BAND, WHITE
29
20Y-62-22850
BAND, GREEN
30
20Y-62-22860
BAND, BROWN
31
08034-20536
STRAP, TIE
32
20Y-62-22681
HOSE, 520 mm
33
08034-20536
STRAP, TIE
