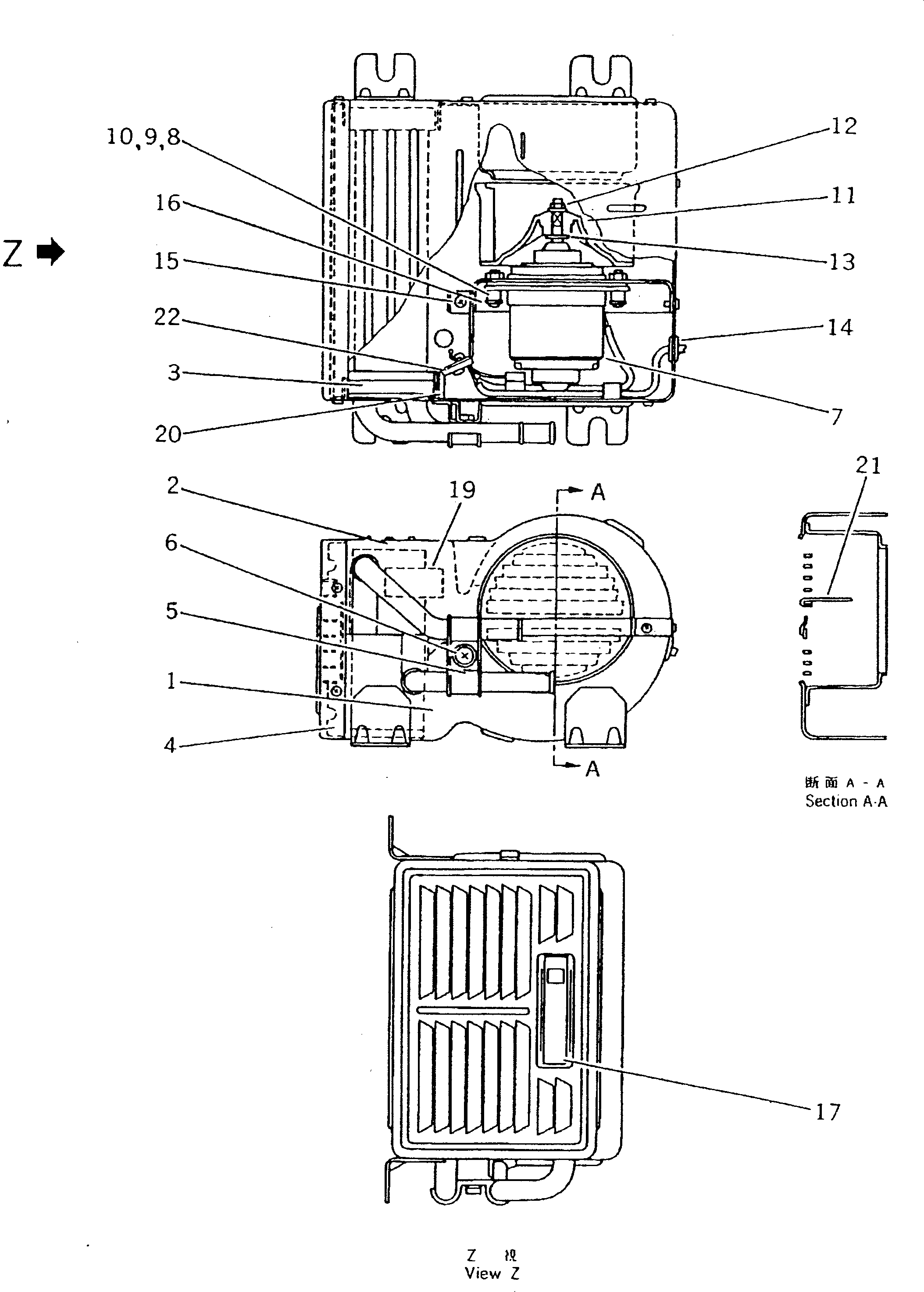

Запчасти Komatsu PC300LC-6Z ОБОГРЕВАТЕЛЬ. В СБОРЕ(№-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

205-977-7110

HEATER UNIT

|$$2

THE DENSO PART NUMBER IS THAT ND IS REMOVED FROM KOMATSU PART NUMBER LISTED BELOW.

1

ND116460-2562

CASE

2

ND116460-2572

CASE

3

ND116460-2841

HEATER

4

ND146371-3500

COVER

5

ND146681-7711

CLAMP

6

ND91570-06141

BOLT

7

ND062500-3731

MOTOR

8

ND949007-0240

SCREW AND WASHER

9

ND949194-0040

PLATE

10

ND949197-0180

RUBBER

11

ND116221-0460

BLOWER

12

ND949056-2230

NUT

13

ND949011-7650

WASHER

14

ND949321-2630

GROMMET

15

ND949001-1820

SCREW

16

ND146640-3461

PLATE

17

ND146741-2170

COVER

18

ND146713-1372

PLATE¤ CAUTION,(NOT SHOWN)

19

ND116403-0620

PLATE

20

ND146659-1350

PACKING

21

ND116253-0440

GUIDE

22

ND146820-2171

RESISTOR
