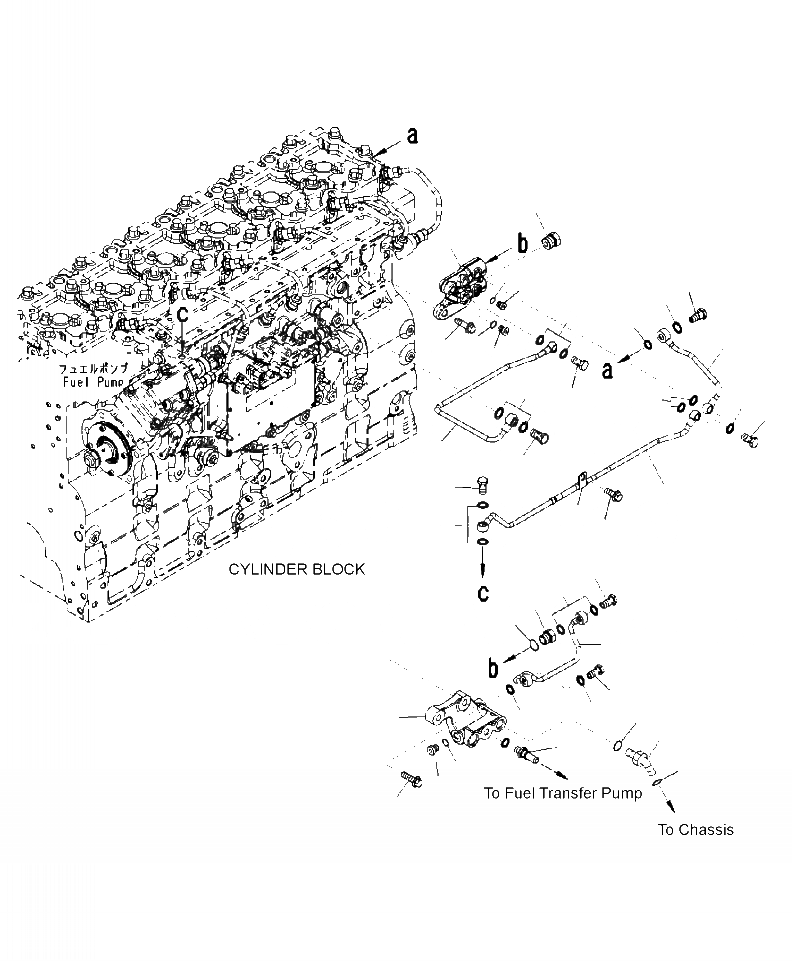

Запчасти Komatsu PC300LL-7E0 A-AB ТОПЛИВОПРОВОД. ДВИГАТЕЛЬ
23
1
4
20
3
16
17
21
18
29
26
28
16
12
12
14
10
13
15
8
9
22
11
34
35
32
33
31
34
6
35
27
35
5
30
7
25
24
2
19
1
6745-71-5610
CONNECTOR, FUEL BLOCK
2
6732-22-3110
BOLT
3
6732-21-1960
PLUG
4
6215-81-9710
O-RING
5
6745-71-5180
ELBOW
6
6735-21-4160
O-RING
7
02896-11009
O-RING
8
6745-71-5440
TUBE
9
6745-71-5450
CLIP
10
6732-71-6510
CONNECTOR
11
6732-61-3140
BOLT
12
6745-71-1130
WASHER
13
6745-71-5460
TUBE
14
6732-71-6510
CONNECTOR
15
6732-71-5620
CONNECTOR
16
6731-74-5910
WASHER
17
6745-71-1130
WASHER
18
6745-71-5470
TUBE
19
6732-71-6510
CONNECTOR
20
6754-71-5430
VALVE, CHECK
21
6731-74-5910
WASHER
22
6745-71-1130
WASHER
23
6745-71-5190
PLUG
24
6744-71-3050
PLUG, THREADED
25
6737-51-8770
O-RING
26
6216-74-6190
BOLT
27
6745-71-5580
CONNECTOR, FUEL BLOCK
28
6744-71-3050
PLUG, THREADED
29
6737-51-8770
O-RING
30
6745-71-6130
CONNECTOR
31
6745-71-5480
TUBE, FUEL DRAIN
32
6745-71-5620
UNION, MALE
33
6735-21-4160
O-RING
34
6732-71-6510
CONNECTOR
35
6745-71-1130
WASHER
