/ / / / / / ACTUATER ЛИНИЯ (ОСНОВН. ЛИНИЯ И ШЛАНГИ КРЕПЛЕНИЕ)(№9-)

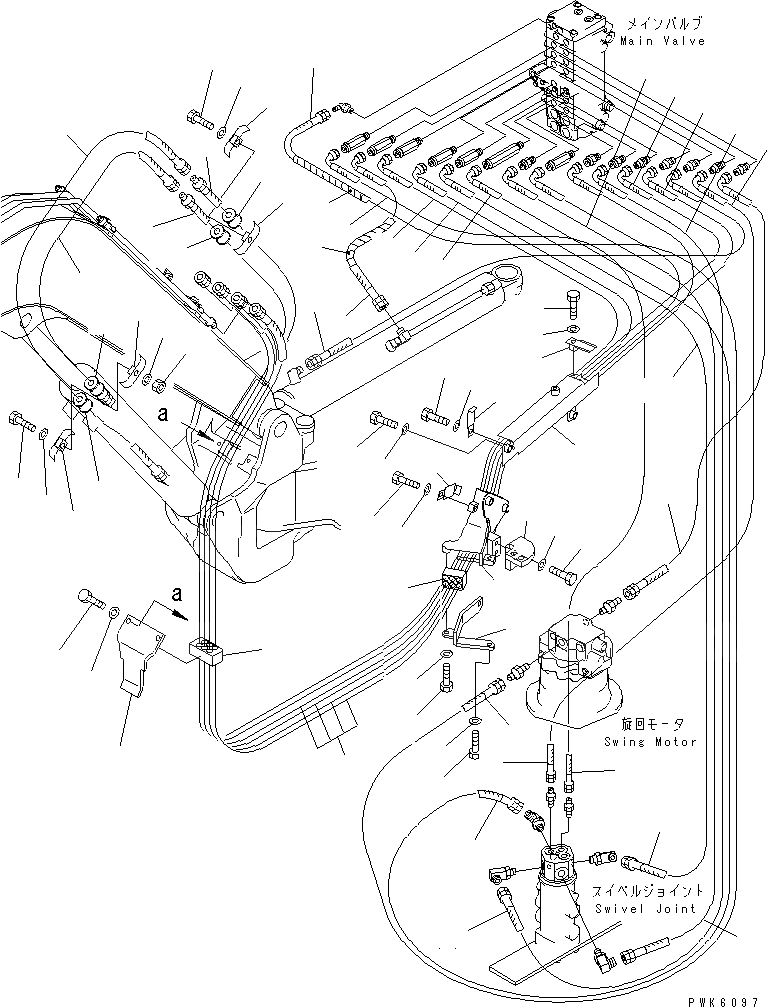

Запчасти Komatsu PC30R-8 ACTUATER ЛИНИЯ (ОСНОВН. ЛИНИЯ И ШЛАНГИ КРЕПЛЕНИЕ)(№9-) ГИДРАВЛИКА
1
1
1
2
2
3
3
4
5
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
13A
13A
14
14A
15
16
17
18
18A
19
20
20
21
22
23
24
24
25
25
26
26
27
28
29
30
31
32
33
33
33
33
33A
34
34
34
35
35
36
36
36
37
38
39
40
1
20S-62-81630
HOSE
2
20S-62-81580
HOSE
3
20S-62-81620
HOSE
4
20T-62-84410
HOSE
5
20T-62-84390
HOSE
6
20T-62-81940
HOSE
7
20T-62-81950
HOSE
8
20T-62-81960
HOSE
9
20T-62-81540
HOSE
10
20T-62-81290
HOSE
11
20T-62-81970
HOSE
12
20T-62-81980
HOSE
13
20T-62-84220
HOSE
13A
203-62-32440
COVER
14
20S-62-81653
BRACKET
14A
20S-62-81670
BRACKET
15
01010-81235
BOLT
16
01643-31232
WASHER
17
20S-62-81663
PLATE
18
20S-62-81711
CUSHION
18A
01010-81025
BOLT
19
01010-81030
BOLT
20
01643-31032
WASHER
21
20S-62-81870
PLATE
22
01010-81040
BOLT
23
01643-31032
WASHER
24
20T-62-81882
BRACKET
25
01010-81020
BOLT
26
01643-31032
WASHER
27
20S-62-82141
CUSHION
28
20S-62-82151
COVER
29
01010-81030
BOLT
30
01643-31032
WASHER
31
20S-62-81560
HOSE
32
20S-62-81570
HOSE
33
07095-00317
CUSHION
33A
20S-62-84480
CLAMP
34
07094-30315
CLAMP
35
01010-81055
BOLT
36
01643-31032
WASHER
37
01580-11008
NUT
38
20S-62-84490
BRACKET
39
01010-81235
BOLT
40
01643-31232
WASHER
