/ / / / / / ОСНОВН. КОНСТРУКЦИЯ (P.P.C. ТРУБЫ¤ ПРАВ.)

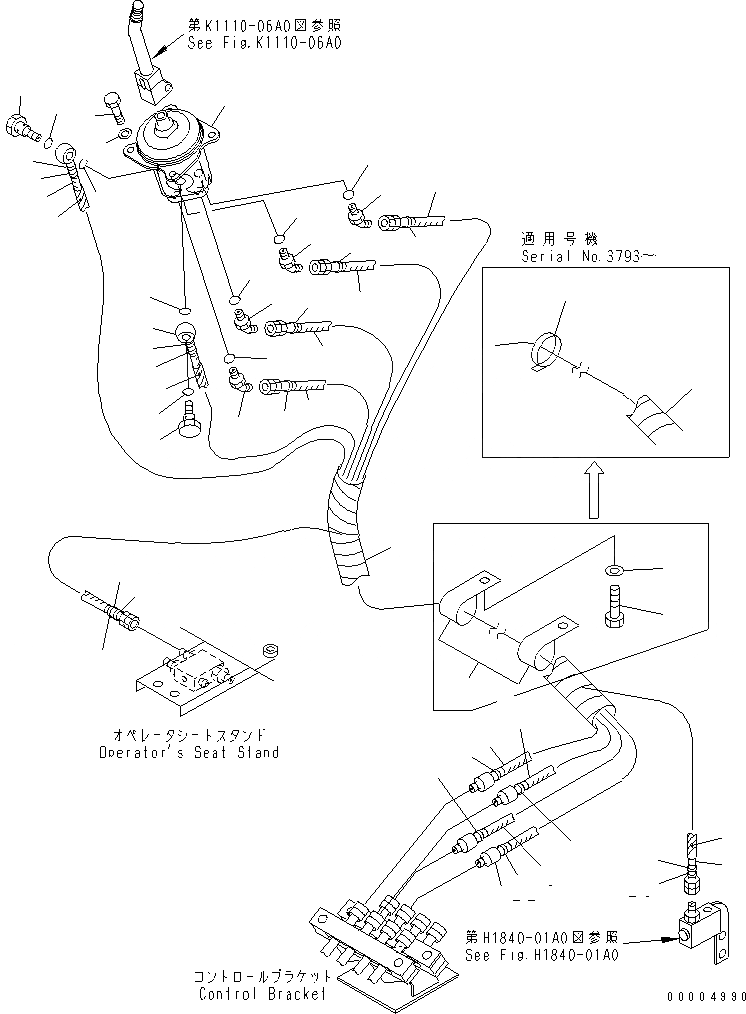

Запчасти Komatsu PC35MR-1 ОСНОВН. КОНСТРУКЦИЯ (P.P.C. ТРУБЫ¤ ПРАВ.) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ
1
2
3
4
5
5
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
15
16
16
16
16
17
17
17
17
18
18
19
20
21
21
22
22
23
23
24
24
24
24
25
25
25
25
26
26
1
702-16-01181
PILOT VALVE
2
01010-80845
BOLT
3
01643-30823
WASHER
4
702-16-53240
PLUG
5
07000-12018
O-RING
6
203-62-57730
BOLT
7
07000-12018
O-RING
8
22F-62-12361
HOSE,RED
|8
22F-62-12360
HOSE¤ 1400MM,RED
9
22F-62-12361
HOSE,BLACK
|9
22F-62-12360
HOSE¤ 1400MM,BLACK
10
22F-62-12361
HOSE,BLUE
|10
22F-62-12360
HOSE¤ 1400MM,BLUE
11
22F-62-12361
HOSE,YELLOW
|11
22F-62-12360
HOSE¤ 1400MM,YELLOW
12
22F-62-12430
HOSE
13
22F-62-12420
HOSE
14
08210-01812
SPIRAL TUBE
|14
203-62-32450
COVER
15
21U-62-34390
COVER
16
21U-62-24160
ELBOW
|16
07236-10210
ELBOW
17
07002-11423
O-RING
18
08034-20519
BAND
|18
281-01-13180
CLIP
19
01010-81020
BOLT
20
01643-31032
WASHER
21
21U-62-34710
BAND¤ YELLOW
22
21U-62-34720
BAND¤ BLACK
23
21U-62-34730
BAND¤ GREEN
24
21U-62-34750
BAND¤ BLUE
25
21U-62-34760
BAND¤ RED
26
21U-62-34770
BAND¤ WHITE
