Запчасти Komatsu PC360-7 ОСНОВН. КЛАПАН (-АКТУАТОР)(/) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ]

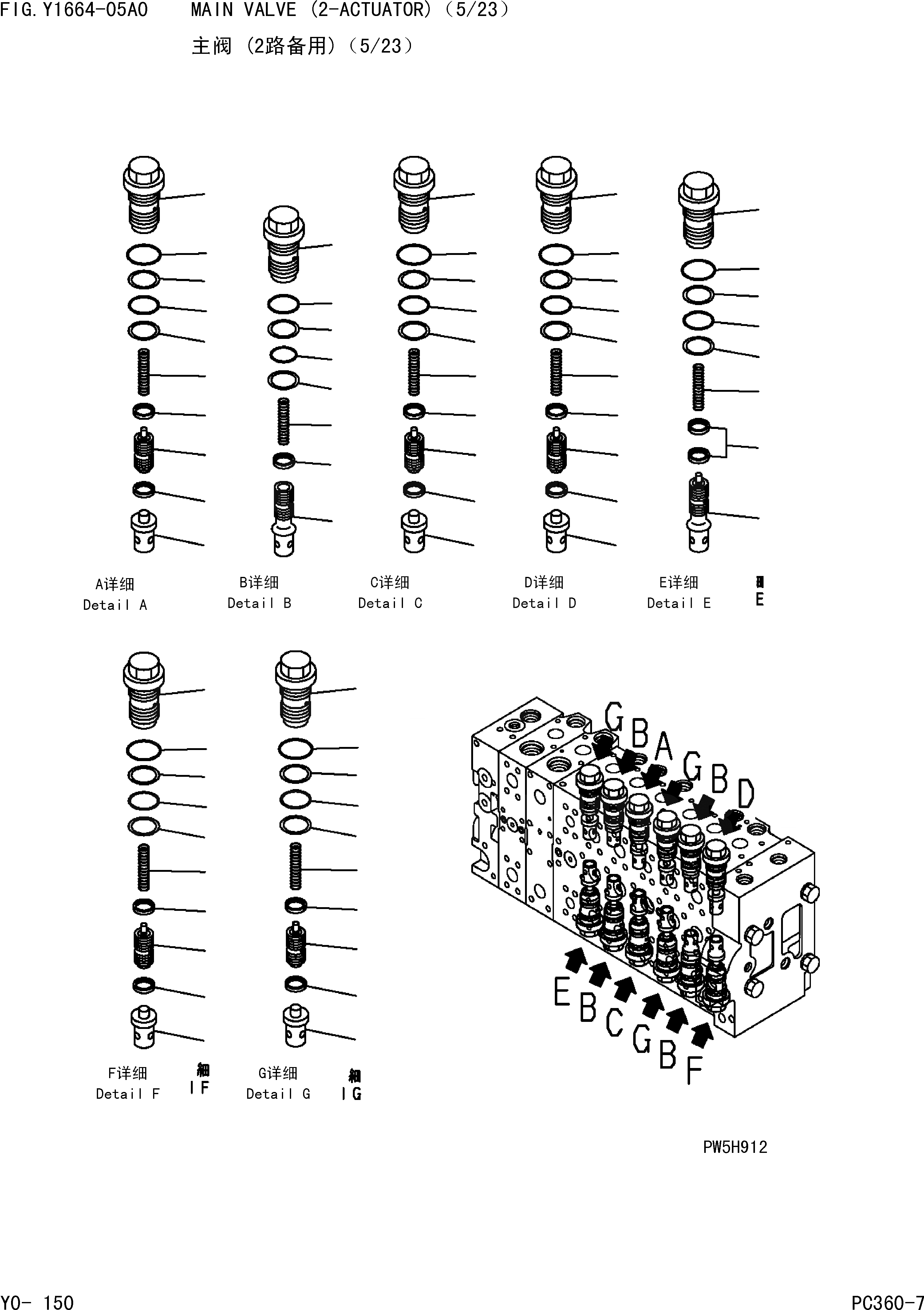

Схема запчастей Komatsu PC360-7 - ОСНОВН. КЛАПАН (-АКТУАТОР)(/) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ]
2
8
7
6
7
4
5
3
5
1
9
15
14
13
14
11
12
10
16
22
21
20
21
18
19
17
19
1
23
29
28
27
28
25
26
24
26
1
30
36
35
34
35
32
33
31
37
43
42
41
42
39
40
38
40
1
1
47
45
47
46
49
48
49
50
44
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

|$0

723-49-26103

CONTROL VALVE

|$1

723-49-26102

CONTROL VALVE THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1664-01A0 TO Y1664-23A0.

|$2

BODY SUB ASS'Y

1

723-46-41110

VALVE

|$4

723-46-40100

VALVE ASS'Y

2

SLEEVE

3

PISTON SUB ASS'Y

4

SPRING

5

SEAL

6

700-93-11320

O-RING

7

723-46-41950

RING

8

07002-13634

O-RING

|$12

723-46-42800

VALVE ASS'Y

9

SLEEVE

10

VALVE

11

SPRING

12

SEAL

13

700-93-11320

O-RING

14

723-46-41950

RING

15

07002-13634

O-RING

|$20

723-46-40601

VALVE ASS'Y

16

SLEEVE

17

PISTON SUB ASS'Y

18

SPRING

19

SEAL

20

700-93-11320

O-RING

21

723-46-41950

RING

22

07002-13634

O-RING

|$28

723-46-43100

VALVE ASS'Y

23

SLEEVE

24

PISTON SUB ASS'Y

25

SPRING

26

SEAL

27

700-93-11320

O-RING

28

723-46-41950

RING

29

07002-13634

O-RING

|$36

723-46-43400

VALVE ASS'Y

30

SLEEVE

31

VALVE SUB ASS'Y

32

SPRING

33

SEAL

34

700-93-11320

O-RING

35

723-46-41950

RING

36

07002-13634

O-RING

|$44

723-46-44100

VALVE ASS'Y

37

SLEEVE

36

PISTON SUB ASS'Y

39

SPRING

40

SEAL

41

700-93-11320

O-RING

42

723-46-41950

RING

43

07002-13634

O-RING

|$52

723-46-45100

VALVE ASS'Y

44

SLEEVE

45

PISTON SUB ASS'Y

46

SPRING

47

SEAL

48

700-93-11320

O-RING

49

723-46-41950

RING

50

07002-13634

O-RING
