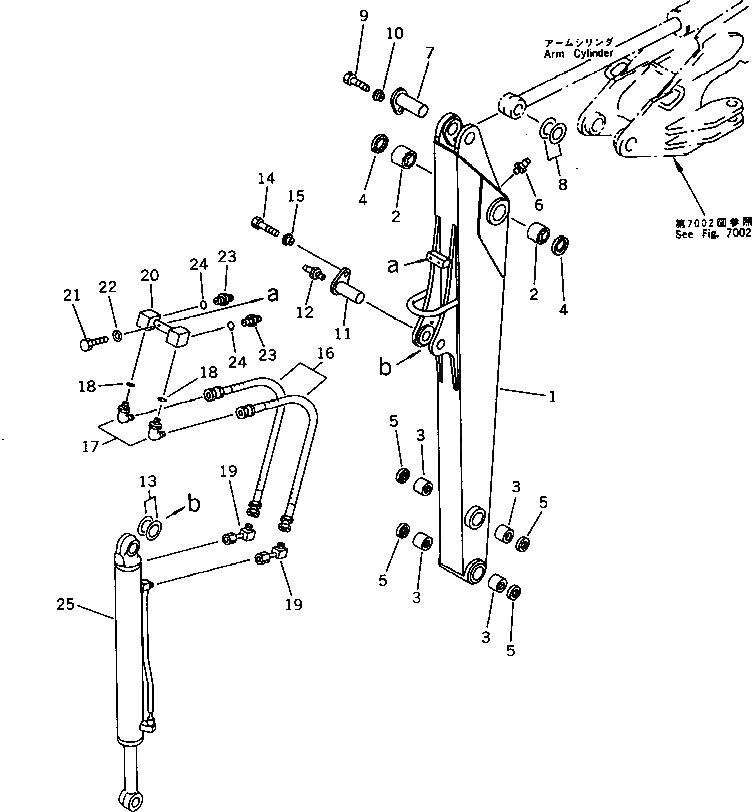

Запчасти Komatsu PC38UU-1 УДЛИНН. РУКОЯТЬ РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

21X-943-0010

LONG ARM ASS'Y

1

ARM

2

21X-70-12120

BUSHING

3

20S-70-11270

BUSHING

G-1

21X-70-X2110

ARM SEAL GROUP

4

07145-00045

SEAL,DUST

5

07145-00035

SEAL,DUST

6

07020-00000

FITTING,GREASE

G-2

21X-70-X2200

ARM PIN GROUP

7

21X-70-11320

PIN

8

20R-70-11260

SPACER¤ 1.0MM

9

01010-51230

BOLT

10

20S-70-31180

SPACER

11

20S-70-31231

PIN

12

07020-00000

FITTING,GREASE

13

20R-70-11270

SPACER¤ 1.0MM

14

01010-51225

BOLT

15

20S-70-31180

SPACER

G-3

21X-943-X130

HOSE GROUP,BUCKET

16

07086-20304

HOSE

17

07235-10315

ELBOW

18

07002-12034

O-RING

19

20U-62-11560

ELBOW

20

21X-943-1120

BRACKET

21

01010-51225

BOLT

22

01643-31232

WASHER

23

07230-20315

UNION

24

07002-12034

O-RING

25

21X-63-02030

CYLINDER ASS'Y,BUCKET (SEE FIG.7351)
