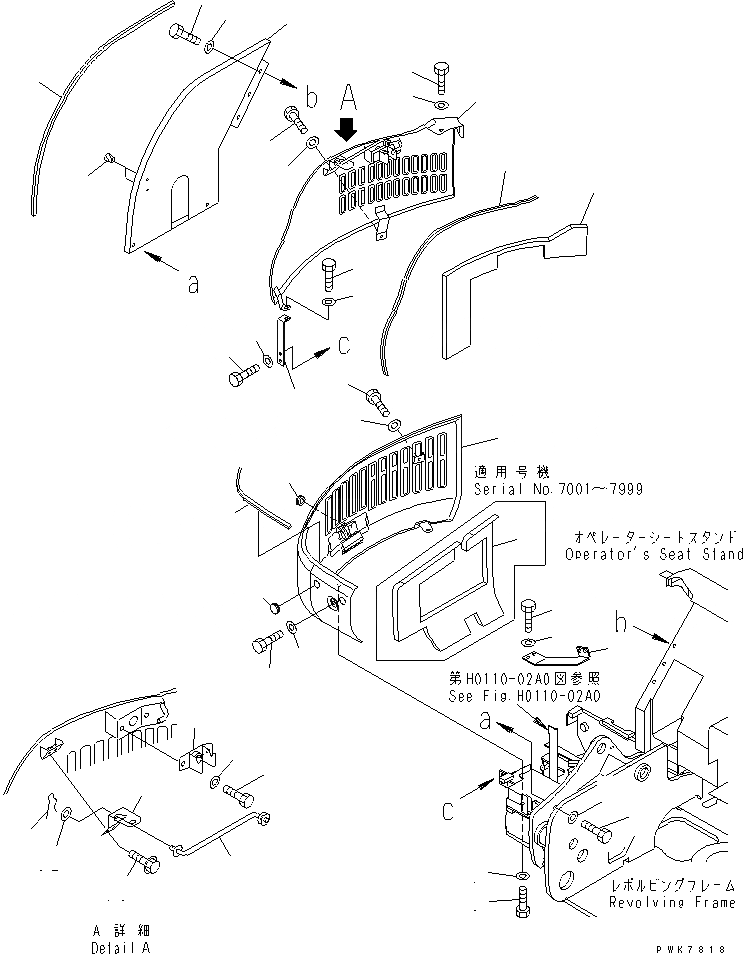

Запчасти Komatsu PC38UU-3 ПРАВ. COVER ЧАСТИ КОРПУСА

|1

21X-54-31401

COVER ASS'Y,R.H.

|1

21X-54-31400

COVER ASS'Y,R.H.

1

21X-54-31590

COVER

2

22F-54-11151

SHEET

3

22F-54-11630

SEAL

4

08037-02512

GROMMET

5

01010-81025

BOLT

6

01010-81040

BOLT

7

01643-31032

WASHER

8

09415-02512

CAP

9

22F-54-11111

BRACKET

10

01010-81025

BOLT

11

01643-31032

WASHER

|12

21X-54-31201

COVER ASS'Y,R.H.

|12

21X-54-31200

COVER ASS'Y,R.H.

12

21X-54-31680

COVER

13

22F-54-11480

SHEET

14

22F-54-11260

BRACKET

15

01435-00816

BOLT

16

21U-54-31491

LOCK

|16

21U-54-31491

LOCK

17

01010-81016

BOLT

18

01643-31032

WASHER

19

22F-54-11660

SEAL

20

01010-81020

BOLT

21

01010-81025

BOLT

22

203-54-56970

WASHER

23

21X-54-32590

BRACKET

24

01010-81025

BOLT

25

01643-31032

WASHER

26

21X-54-31421

COVER

27

22F-54-11251

SEAL

28

01010-81025

BOLT

29

01010-81035

BOLT

30

01643-31032

WASHER

31

22F-54-11180

ROD

32

01643-30823

WASHER

33

04052-10833

PIN,SNAP

34

07049-00811

PLUG
