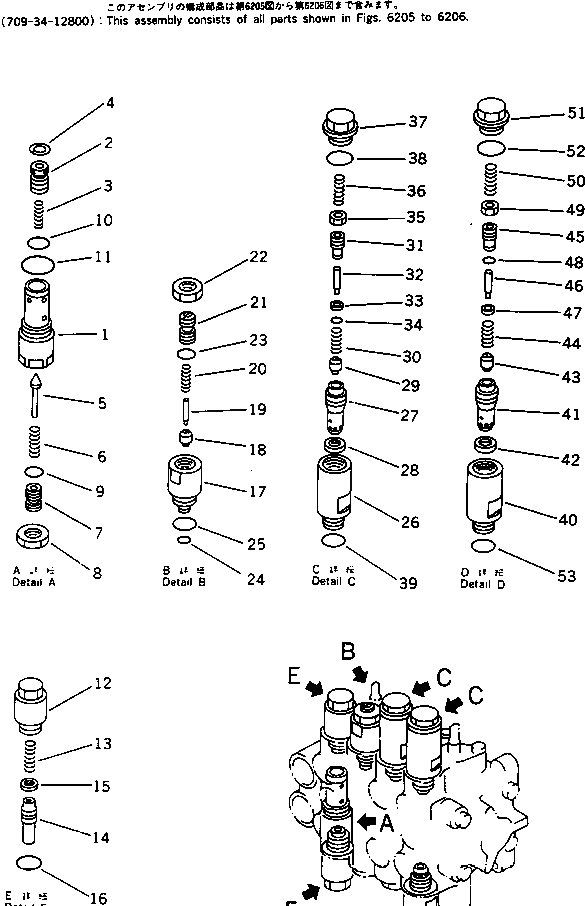

Запчасти Komatsu PC40-6 4-Х СЕКЦИОНН. КЛАПАН (/) (ПОВОРОТН.¤ СКОРОСТЬ ДВИЖЕНИЯ¤ ОТВАЛ¤ НАКЛОН.)(№899-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

709-34-12800

VALVE ASS'Y

|$1

700-28-51000

VALVE ASS'Y,MAIN RELIEF

1

SLEEVE

2

VALVE

3

700-20-51430

SPRING

4

700-20-51240

RING

5

700-80-61190

POPPET

6

700-20-51350

SPRING

7

700-20-51340

SCREW

8

01583-11408

NUT

9

07000-02011

O-RING

10

700-22-11410

O-RING

11

07002-02434

O-RING

|$13

709-30-61100

VALVE ASS'Y,SUCTION

12

709-30-61110

SLEEVE

13

700-20-62170

SPRING

14

VALVE

15

SEAL

16

07002-02034

O-RING

|$19

709-30-65703

VALVE ASS'Y,SAFETY

17

SLEEVE

18

POPPET

19

PISTON

20

SPRING

21

SCREW

22

NUT

23

O-RING

24

709-32-11840

O-RING

25

07002-02034

O-RING

|$29

709-30-64101

VALVE ASS'Y,SUCTION AND SAFETY

26

709-30-62110

SLEEVE

27

VALVE

28

SEAL

29

POPPET

30

SPRING

31

SCREW

32

PISTON

33

SEAL

34

O-RING

35

NUT

36

700-20-61270

SPRING

37

709-30-62150

PLUG

38

07002-12034

O-RING

39

07002-02034

O-RING

|$44

709-30-63702

VALVE ASS'Y,SUCTION AND SAFETY

40

709-30-62110

SLEEVE

41

VALVE

42

SEAL

43

POPPET

44

SPRING

45

SCREW

46

PISTON

47

SEAL

48

O-RING

49

NUT

50

700-20-61270

SPRING

51

709-30-62150

PLUG

52

07002-12034

O-RING

53

07002-02034

O-RING
