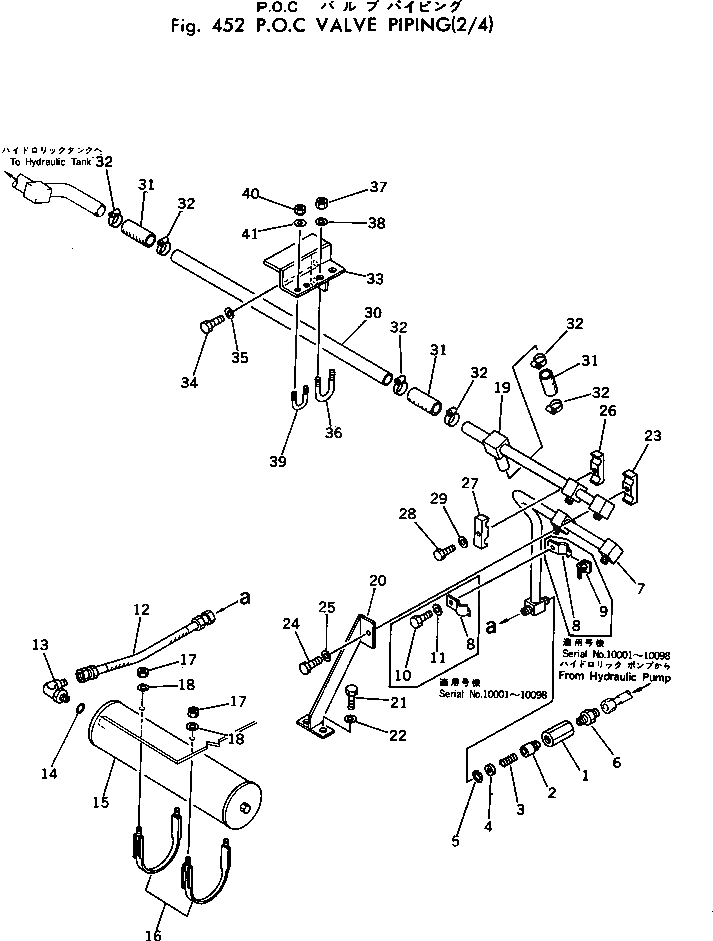

Запчасти Komatsu PC400-1 P.O.C. КЛАПАН ТРУБЫ (/) ПОВОРОТН. И СИСТЕМА УПРАВЛЕНИЯS

|1

205-60-51500

VALVE ASS'Y

1

205-60-51380

BODY

2

205-60-51390

POPPET

3

205-60-51410

SPRING

4

205-60-51420

SEAT

5

04065-01410

RING,SNAP

6

07238-00422

CONNECTOR

7

208-62-17431

TUBE

8

208-62-18120

CLAMP

9

208-62-18110

CLAMP

10

01010-31225

BOLT

11

01643-31232

WASHER

12

208-62-17520

HOSE

13

07235-10315

ELBOW

14

07002-02034

O-RING

15

208-60-13110

ACCUMULATOR,(SEE FIG.481)

16

07283-21185

CLIP

17

01599-01214

NUT

18

01643-31232

WASHER

19

208-62-17450

TUBE

20

208-62-17661

BRACKET

21

01010-51225

BOLT

22

01643-31232

WASHER

23

208-62-17620

CLAMP

24

01010-51235

BOLT

25

01643-31232

WASHER

26

208-62-17620

CLAMP

27

208-62-17630

CLAMP

28

01010-51240

BOLT

29

01643-31232

WASHER

30

208-62-17472

TUBE

31

07260-22613

HOSE

32

07281-10419

CLAMP

33

208-62-16622

BRACKET

34

01010-51225

BOLT

35

01643-31232

WASHER

36

07283-22738

CLIP

37

01599-01011

NUT

38

01643-31032

WASHER

39

07283-21529

CLIP

40

01598-00809

NUT

41

01643-30823

WASHER
