/ / / / / / CAR ОХЛАДИТЕЛЬ И ТРУБЫ(№-)

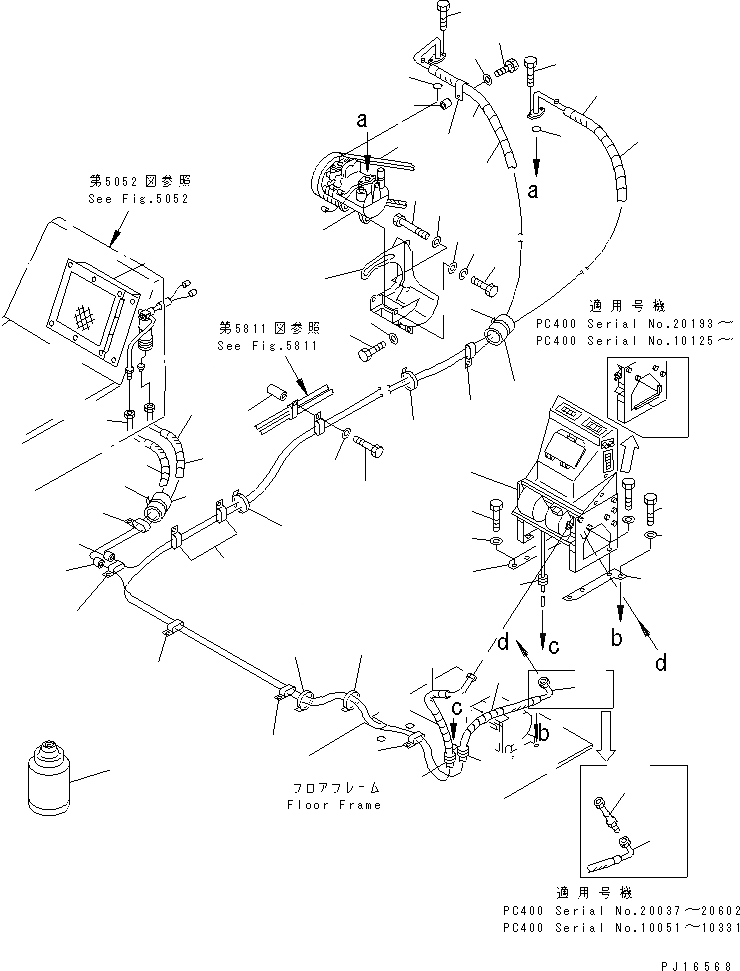

Запчасти Komatsu PC400-5 CAR ОХЛАДИТЕЛЬ И ТРУБЫ(№-) ЧАСТИ КОРПУСА
1
2
2
3
4
4
5
5
6
6
6
7
7
8
9
10
11
12
12
13
14
14
14
14A
15
16
16
17
17
17
17
17
18
19
19
20
20
21
21
21
21
22
22
22
23
24
25
26
27
28
28
29
29
30
30
31
31
32
33
33
34
35
36
37
38
G-1
207-978-X100
COOLER GROUP
1
20Y-978-1100
COOLER ASS'Y
2
01010-51030
BOLT
3
01602-21030
WASHER,SPRING
4
01643-31032
WASHER
5
207-978-5170
HOSE
|5
208-978-5170
HOSE
6
20Y-978-1120
COMPRESSOR
|6A
TW7041-0180
SWITCH
7
07000-02016
O-RING
8
208-978-5140
BRACKET
9
01011-51020
BOLT
10
01643-31032
WASHER
11
208-978-5150
V-BELT
12
208-978-5160
HOSE
13
207-978-5200
CONDENSER ASS'Y
14
207-978-5180
HOSE
14A
20Y-978-1280
TUBE
15
202-981-1370
DRUM
|16
20Y-978-1190
PIPING KIT
16
CJPC58113
BUSHING
17
CJ033-3726
CLAMP
18
CJPC09114B
BAND
19
CJPC09114C
BAND
20
CJPC58224
TUBE
21
CJPC58360
TUBE
22
141-06-11220
CLIP
23
11T-27-11180
SPACER
24
01010-51270
BOLT
25
08034-00519
BAND
26
207-978-5230
PLATE
27
207-978-5240
PLATE
28
01010-51235
BOLT
29
01643-31232
WASHER
30
205-62-53780
COVER
31
08034-00536
BAND
32
20Y-977-1130
GROMMET
33
207-978-5190
GROMMET
34
20Y-06-11580
SEAL (BONDED)
35
141-06-11220
CLIP
36
205-03-71331
COLLAR
37
01010-51275
BOLT
38
01643-31232
WASHER
