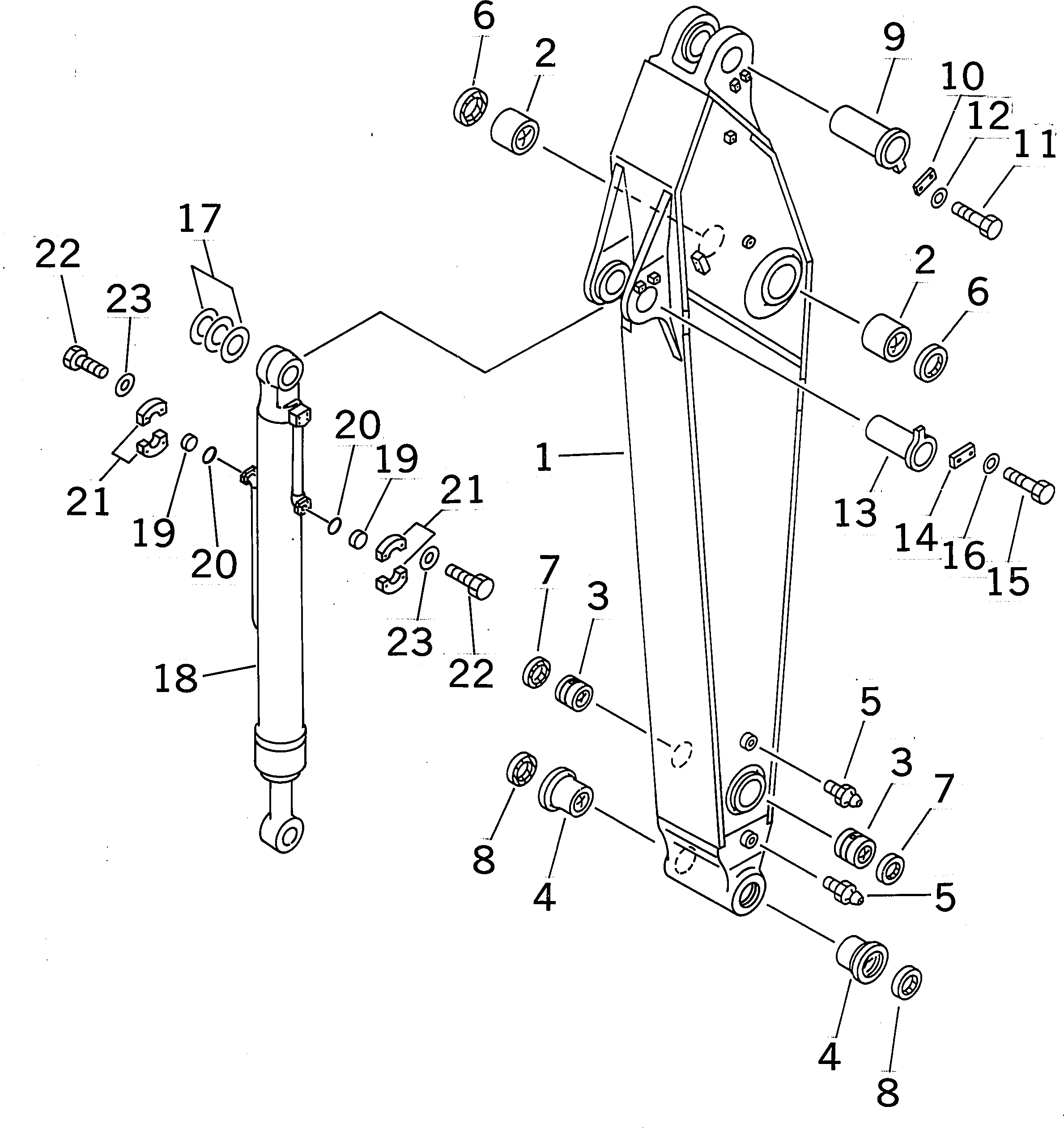

Запчасти Komatsu PC400-6C РУКОЯТЬ (.9M) (РУКОЯТЬ И ЦИЛИНДР КОВША)(№-) РАБОЧЕЕ ОБОРУДОВАНИЕ

|$3

208-944-0201

SHORT ARM ASS'Y

|$4

208-944-0200

SHORT ARM ASS'Y

1

ARM

1

ARM

2

208-70-61521

BUSHING

3

208-70-13141

BUSHING

4

208-70-72170

BUSHING

4

208-70-32140

BUSHING

5

07020-00000

FITTING

6

07145-10120

SEAL

7

208-70-12231

SEAL,DUST

8

205-70-62160

SEAL

9

208-70-61220

PIN

10

205-70-66580

PLATE

11

01010-81235

BOLT

12

01643-31232

WASHER

13

208-70-61240

PIN

14

205-70-66580

PLATE

15

01010-81235

BOLT

16

01643-31232

WASHER

17

207-70-11340

SPACER, 0.8MM

18

208-63-X9090

CYLINDER GROUP,(SEE FIG.Y1620-41A1A)

18

208-63-X8330

BUCKET CYLINDER G.,(SEE FIG.Y1620-41A1A)

19

07378-11000

HEAD

20

07000-53032

O-RING

21

07371-31049

FLANGE

22

07372-21035

BOLT

23

01643-51032

WASHER
