Запчасти Komatsu PC400LCSE-8R ОСНОВН. НАСОС (/) Y

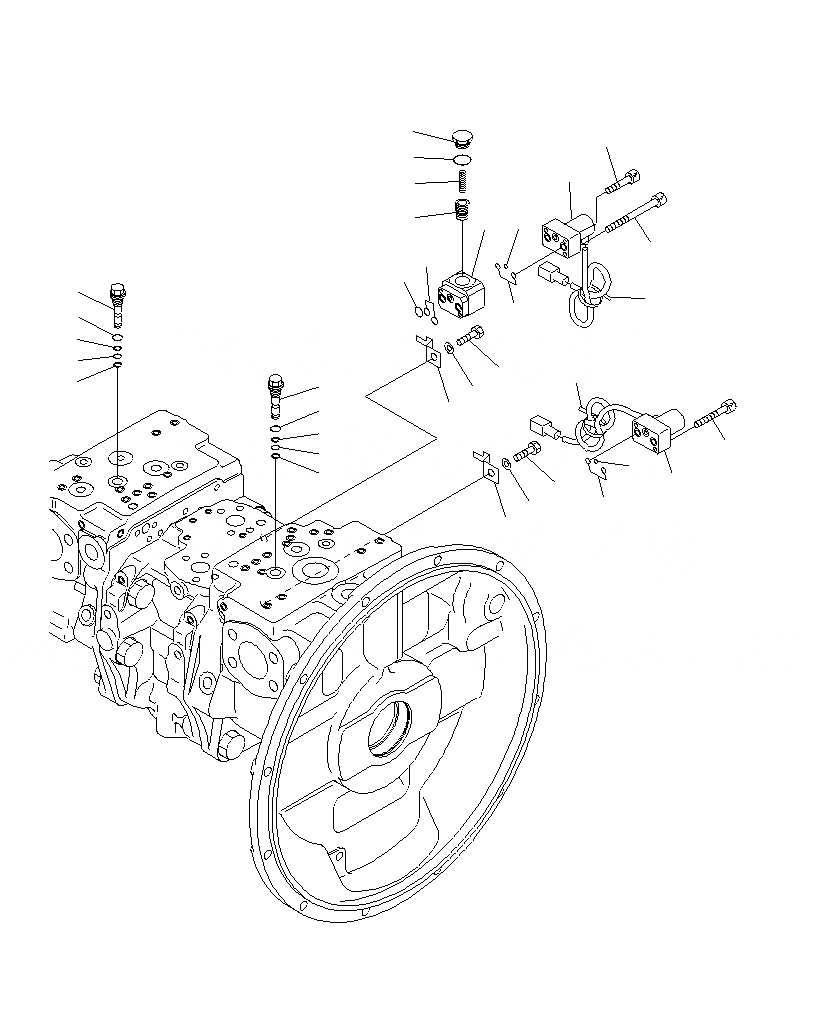

Схема запчастей Komatsu PC400LCSE-8R - ОСНОВН. НАСОС (/) Y
11
18
15
6
13
7
14
12
16
9
17
19
10
22
8
21
20
5
24
19
21
23
22
25
21
20
4
2
21
1
24
3
23
25
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

|$1

708-2H-00450

PUMP ASS'Y

|$2

THIS ASSEMBLY CONSISTS OF ALL PARTS

|$3

SHOWN IN FIGS.Y1600-01A0 T0 Y1600-12A0.

1

702-21-57600

PILOT VALVE

2

O-RING

3

O-RING

4

01252-60635

BOLT

5

20Y-62-22790

BAND, RED

6

702-21-57500

PILOT VALVE

7

O-RING

8

O-RING

9

702-16-55260

BOLT

10

20Y-62-22830

BAND, WHITE

|$14

702-21-55400

VALVE ASS'Y

11

702-21-55920

PLUG

12

702-21-55930

PISTON

13

702-21-55940

SPRING

14

702-21-55951

BLOCK

15

07002-12034

O-RING

16

07000-11008

O-RING

17

722-12-18240

O-RING

18

01252-60530

BOLT

19

708-2H-15531

PLUG

20

07000-B1008

O-RING

21

07001-01008

RING

22

07002-61423

O-RING

23

01643-51232

WASHER

24

01010-81220

BOLT

25

08193-21012

CLIP
