ОСНОВН. КЛАПАН (7/)

Запчасти Komatsu PC400LCSE-8R ОСНОВН. КЛАПАН (7/) Y

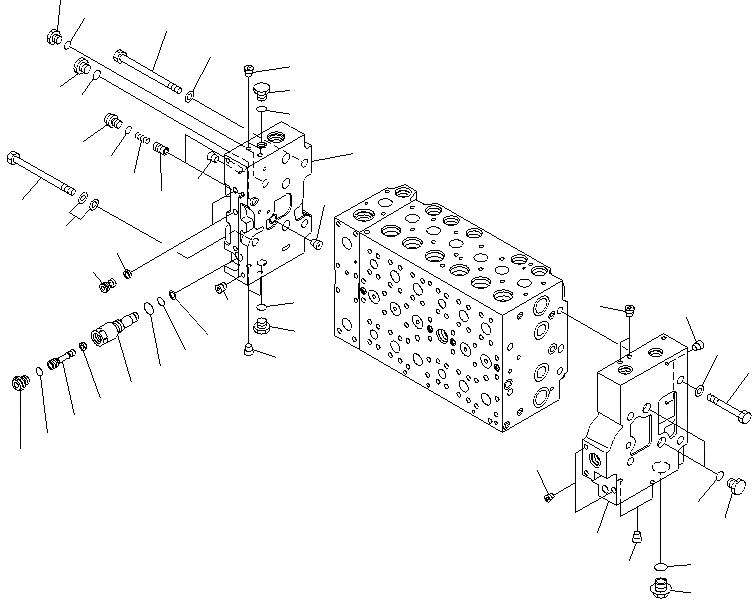

Схема запчастей Komatsu PC400LCSE-8R - ОСНОВН. КЛАПАН (7/) Y
24
25
28
27
2
6
6
7
7
1
20
21
19
2
3
18
28
27
16
17
7
5
5
2
6
27
13
26
2
12
11
8
10
9
15
5
14
7
6
4
23
5
22
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

|$1

723-47-27504

CONTROL VALVE

|$2

723-47-27503

CONRTOL VALVE

|$3

723-47-27502

CONTROL VALVE

|$4

723-47-27501

CONTROL VALVE

|$5

THIS ASSEMBLY CONSISTS OF ALL PARTS

|$6

SHOWN IN FIGS.Y1662-01A0 TO Y1662-20A0.

|$7

723-46-00660

COVER ASS'Y

|$8

723-46-00760

COVER ASS'Y

1

COVER,A

|$10

COVER, A

2

PLUG

3

PLUG

|$13

723-46-00742

COVER ASS'Y

4

COVER, B

5

PLUG

6

708-8E-16250

PLUG

7

07002-11823

O-RING

|$18

723-46-17600

PLUG ASS'Y

8

723-46-17610

SLEEVE

9

723-46-17640

PLUG

10

702-21-55760

FILTER

11

07002-11423

O-RING

12

07000-11007

O-RING

13

07001-01007

RING, BACK-UP

14

708-8E-16160

PLUG

15

07002-11023

O-RING

16

723-40-82220

FILTER

17

723-46-17550

PLUG

18

723-46-15190

VALVE

19

723-46-14140

SPRING

20

708-8E-16160

PLUG

21

07002-11023

O-RING

22

709-74-91860

PLUG

23

07002-12434

O-RING

24

702-21-55620

PLUG

|$36

708-8H-11530

PLUG

25

07002-11423

O-RING

26

01010-61490

BOLT

27

01643-31445

WASHER

28

01011-61455

BOLT
