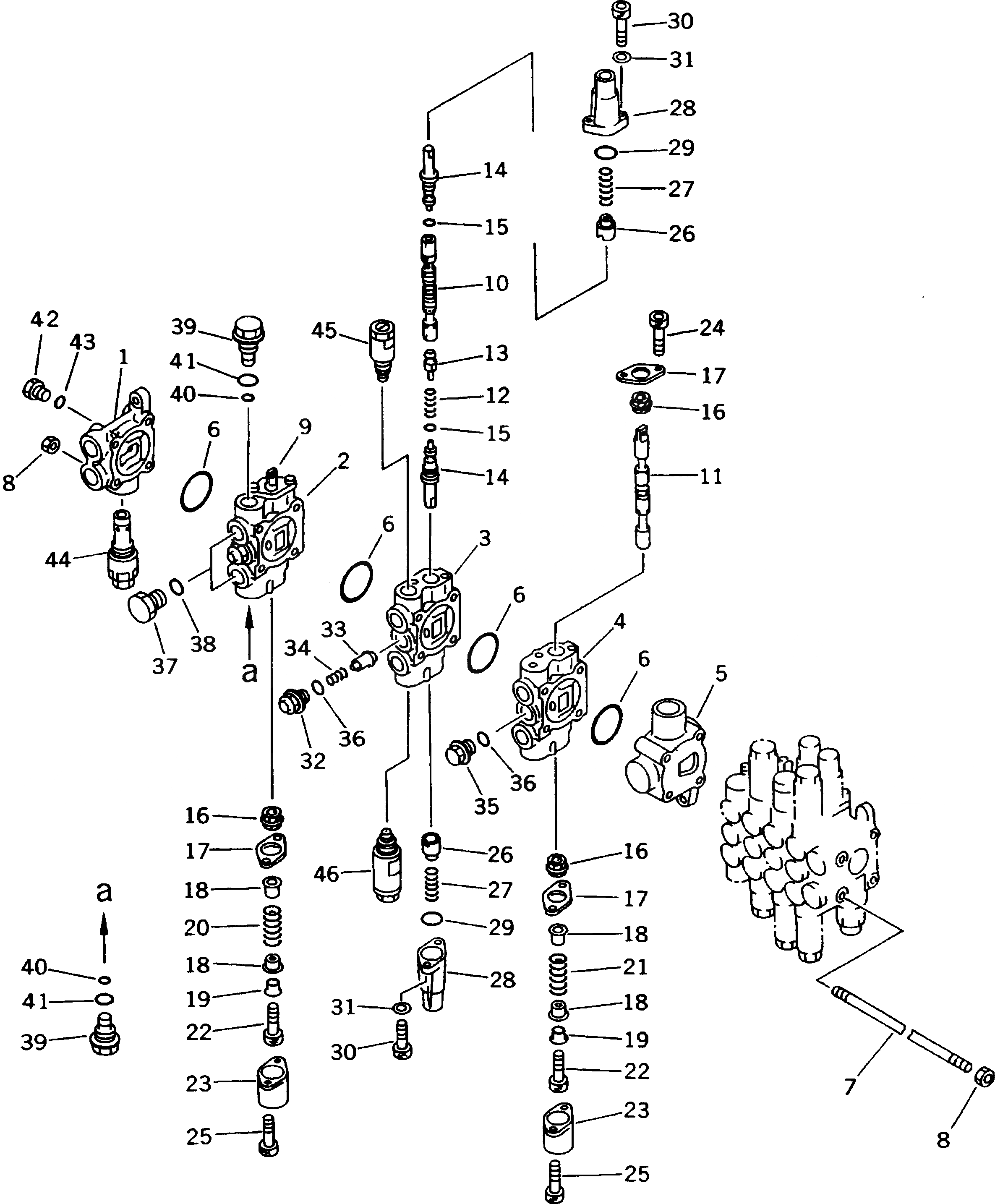

Запчасти Komatsu PC40T-7 ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН (7-СЕКЦИОНН.) (/) ГИДРАВЛИКА

|1

709-37-12101

VALVE ASS'Y

1

BLOCK

2

BLOCK

3

BLOCK

4

BLOCK

5

BLOCK

6

07000-12055

O-RING

7

709-37-11510

STUD

8

01580-10806

NUT

9

SPOOL,SERVICE

10

SPOOL,ARM

11

SPOOL,TRAVEL¤ L.H.

12

SPRING

13

POPPET

14

JOINT

15

07000-11003

O-RING

16

709-32-11530

SEAL,DUST

17

709-32-11540

PLATE

18

709-32-11550

RETAINER

19

709-32-11560

COLLAR

20

709-32-11580

SPRING

21

709-32-11590

SPRING

22

01252-30620

BOLT

23

709-32-11570

COVER

24

01252-30610

BOLT

25

01252-30616

BOLT

26

709-32-12840

RETAINER

27

709-32-13510

SPRING

28

709-32-12851

CASE

29

709-32-11760

O-RING

30

01252-30622

BOLT

31

01641-20608

WASHER

32

709-32-12861

PLUG

33

709-32-12871

VALVE

34

722-10-91130

SPRING

35

709-32-11930

PLUG

36

07002-11823

O-RING

37

07040-11812

PLUG

38

07002-11823

O-RING

39

709-32-11830

PLUG

40

709-32-11840

O-RING

41

07002-02034

O-RING

42

07040-11007

PLUG

43

07002-11023

O-RING

44

700-28-62001

VALVE ASS'Y,MAIN RELIEF

45

709-30-66700

SAFETY VALVE ASS'Y,SAFETY

46

709-30-63602

VALVE ASS'Y,SUCTION AND SAFETY
