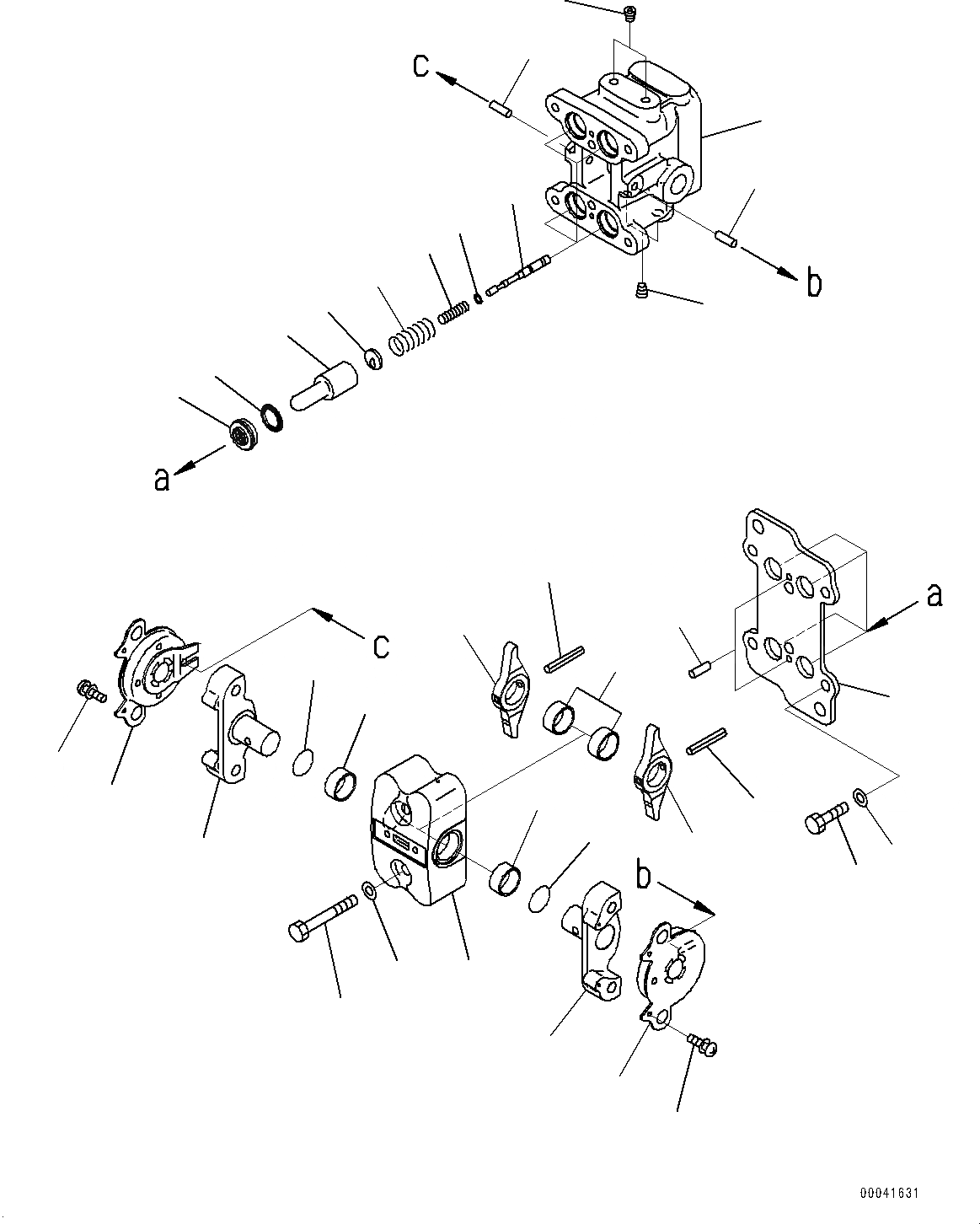

Запчасти Komatsu PC45MR-3 КАБИНА, С ЗАДН.VIEW MIRROR, ЛЕВ. И ПРАВ., ПЕЧКА, МАСТЕР КЛЮЧ, PROVISION ДЛЯ -ДОПОЛН. АКТУАТОР ТРУБЫ, КЛАПАН PPCДЛЯ TRAV КАБИНА, С ЗАДН.VIEW MIRROR, ЛЕВ. И ПРАВ., ПЕЧКА, МАСТЕР КЛЮЧ, PROVISION ДЛЯ -ДОПОЛН. АКТУАТОР ТРУБЫ

|$0

702-16-06290

Valve, Pilot

1

Valve Body

2

Valve

3

702-16-51140

Shim, T=0.30mm

3

702-16-54670

Shim, T=0.20mm

4

702-16-57960

Spring

5

702-16-57970

Retainer

6

702-16-55630

Spring

7

702-16-53170

Piston

8

702-16-71150

Seal

9

702-16-71160

Seat

10

702-16-73630

Case

11

Lever

12

Shaft

13

Plate

14

01010-80855

Bolt

15

01643-30823

Washer

16

01010-80816

Bolt

17

702-16-54331

Washer, T=1.60mm

17

702-16-54341

Washer, T=1.30mm

17

702-16-54351

Washer, T=1.00mm

17

702-16-56380

Washer, T=1.90mm

17

702-16-56390

Washer, T=2.20mm

18

04025-00432

Pin, Spring

19

702-16-54430

Bushing

20

07000-12018

O-ring

21

702-16-73610

Damper Assembly

22

01023-10306

Screw

23

702-16-73650

Pin

24

04022-04016

Pin, Dowel

25

Plug

26

708-18-12570

Plug
