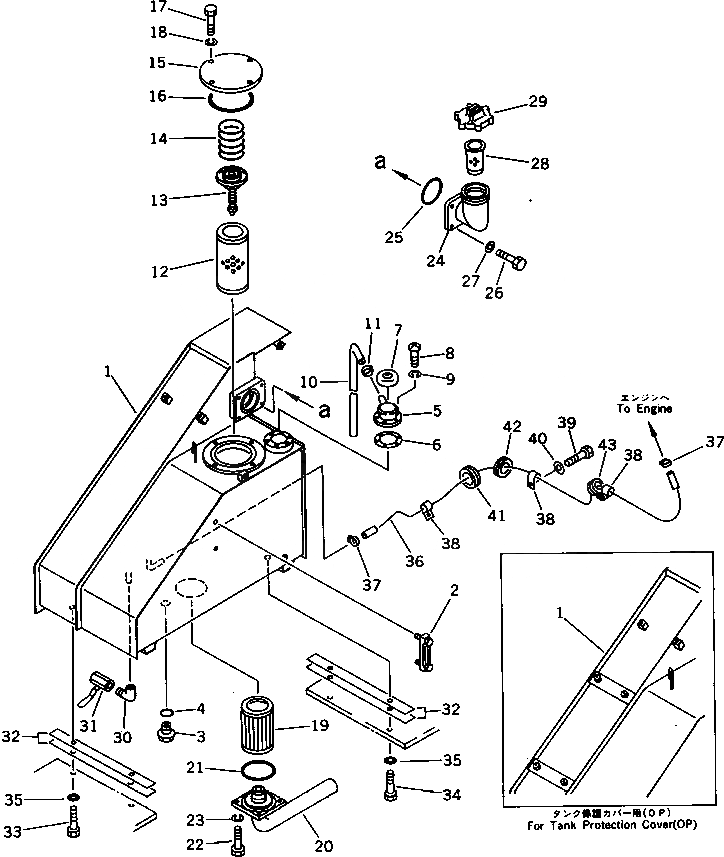

Запчасти Komatsu PC50UU-1 ГИДРАВЛ И ТОПЛИВН. БАК. УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

1

20U-60-11114

TANK,HYDRAULIC

|1

20U-60-11113

TANK,HYDRAULIC

|1

20U-60-11112

TANK,HYDRAULIC

|1

20U-60-11210

TANK,(FOR TANK PROTECTION COVER) (OP)

2

20U-60-11161

GAUGE

|2

22X-60-15120

GAUGE,OIL

3

07044-12412

PLUG

4

07002-02434

O-RING

5

201-60-12171

FILLER NECK

6

205-60-51460

GASKET

7

201-60-12190

CAP ASS'Y

8

01220-40516

SCREW

9

01601-20513

WASHER,SPRING

10

07270-00840

TUBE

11

07280-01110

CLAMP

12

07063-01054

ELEMENT

13

125-62-21150

VALVE ASS'Y

14

125-62-21170

SPRING

15

20S-60-21140

COVER

16

07000-02140

O-RING

17

01010-51025

BOLT

18

01602-21030

WASHER,SPRING

19

21E-60-11130

STRAINER

20

20U-60-11130

TUBE

21

07000-02110

O-RING

22

01010-51020

BOLT

23

01602-21030

WASHER,SPRING

24

20U-60-11152

CASE

|24

20U-60-11150

CASE

25

07000-02090

O-RING

26

01010-51025

BOLT

27

01643-31032

WASHER

28

20U-04-11120

STRAINER

29

07050-20900

CAP

|29

07050-20902

GASKET

30

07323-30200

ELBOW

31

07700-40240

VALVE

32

20R-04-21130

SHIM¤ 1.0MM

33

01010-51225

BOLT

34

01010-51230

BOLT

35

01605-11226

WASHER

36

07288-00815

HOSE

37

07281-00167

CLAMP

38

08036-03014

CLIP

39

01010-51016

BOLT

40

01643-31032

WASHER

41

08037-03614

GROMMET

42

08037-05022

GROMMET

43

112-06-21170

GROMMET
