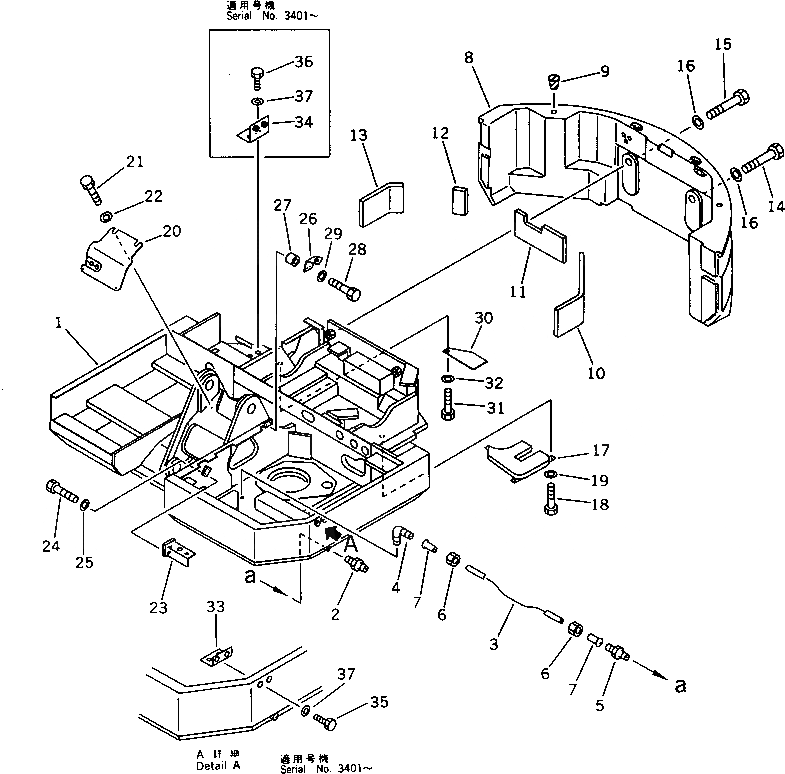

Запчасти Komatsu PC50UU-1 ОСНОВНАЯ РАМА СИСТЕМА УПРАВЛЕНИЯ И ОСНОВНАЯ РАМА

1

20U-46-11112

FRAME,REVOLVING

1

20U-46-11111

FRAME,REVOLVING

1

20U-46-11330

FRAME,REVOLVING (FOR 6WAY CONTROL)

2

07020-00000

FITTING,GREASE

3

20U-46-11310

TUBE

4

20R-46-11150

ELBOW

5

20R-46-11160

CONNECTOR

6

07832-00410

NUT

7

07831-00411

SLEEVE

8

20U-46-12113

WEIGHT,COUNTER

8

20U-46-12112

WEIGHT,COUNTER

8

20U-46-12111

WEIGHT,COUNTER

9

07049-02430

PLUG

9

07049-01215

PLUG

10

20U-46-12170

SHEET

11

20U-46-12160

SHEET

12

20U-46-12150

SHEET

13

20U-46-12140

SHEET

14

01010-83085

BOLT

15

01010-83075

BOLT

15

01010-83085

BOLT

16

01643-33080

WASHER

17

20U-46-11261

COVER

18

01010-51020

BOLT

19

01643-31032

WASHER

20

20U-46-11212

COVER

20

20U-46-11211

COVER

21

01010-50820

BOLT

22

01643-30823

WASHER

23

20U-46-11271

BRACKET

24

01010-51040

BOLT

25

01643-31032

WASHER

26

20U-46-11240

BRACKET

27

201-03-29160

SPACER

28

01010-51040

BOLT

29

01643-31032

WASHER

30

20U-46-11251

PLATE

31

01010-51225

BOLT

32

01643-31232

WASHER

33

20U-46-11341

BRACKET

33

20U-46-11340

BRACKET,(FOR 6WAY CONTROL)

34

20U-46-11350

BRACKET

35

01010-51050

BOLT

35

01010-51040

BOLT,(FOR 6WAY CONTROL)

36

01010-51020

BOLT

37

01643-31032

WASHER

37

01643-31032

WASHER,(FOR 6WAY CONTROL)
