/ / / / / / P.P.C. ОСНОВН. ЛИНИЯ (ОСНОВН. ЛИНИЯ PPC) (RENTAL СПЕЦ-Я.)(№8-)

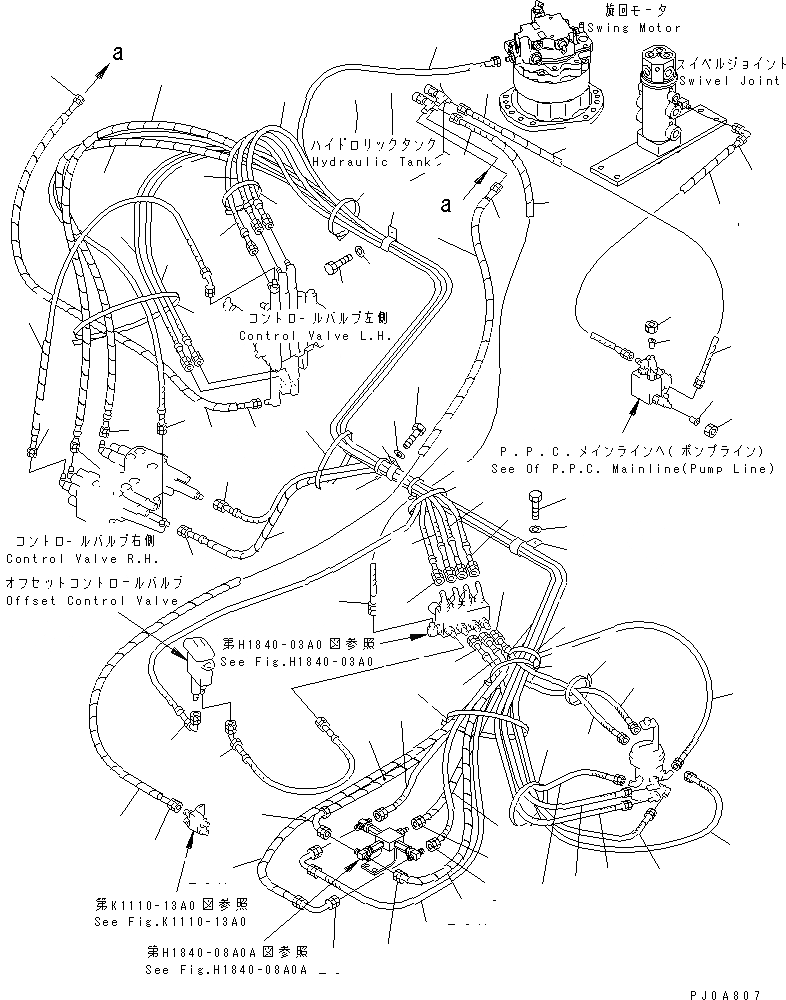

Запчасти Komatsu PC50UU-2 P.P.C. ОСНОВН. ЛИНИЯ (ОСНОВН. ЛИНИЯ PPC) (RENTAL СПЕЦ-Я.)(№8-) ГИДРАВЛИКА
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
11A
11B
11C
12
12
12A
13
13A
14
14
14A
15
15
15A
16
16
17
17
18
18
19
20
20
21
21
22
22
23
23
24
24
25
25
25
25A
25A
25A
26
26
26A
27
28
29
30
30
30
30
30
30
30
31
31
32
32
33
33
34
34A
35
35
36
36
1
20U-62-23152
HOSE,ORANGE
2
20U-62-23611
HOSE,BLUE
3
21W-62-22790
HOSE,WHITE
4
20U-62-23122
HOSE,RED
5
20U-62-23122
HOSE,GREEN
6
20U-62-23122
HOSE,BROWN
7
20U-62-23670
HOSE¤ 1200MM,YELLOW
8
20U-62-23670
HOSE¤ 1200MM,BLACK
9
20U-62-23640
HOSE,WHITE-RED
10
08034-00536
BAND
11
20U-62-23690
HOSE¤ 1050MM,WHITE-BLACK
11A
08210-01802
SPIRAL TUBE
11B
08210-01805
SPIRAL TUBE
11C
08210-01806
SPIRAL TUBE
12
20U-62-23620
HOSE
12A
08210-01809
SPIRAL TUBE
13
20U-62-22411
HOSE
13A
08210-01802
SPIRAL TUBE
14
20U-62-23710
HOSE
14A
08210-01806
SPIRAL TUBE
15
20U-62-23740
HOSE
15A
08210-01813
SPIRAL TUBE
16
201-62-72190
HOSE¤ 1350MM
17
08210-01805
SPIRAL TUBE
18
21W-62-22830
HOSE,GREEN
19
21W-62-22830
HOSE,WHITE-BLACK
20
20U-62-23590
HOSE,BLACK
21
20U-62-23590
HOSE,WHITE
22
20U-62-23780
HOSE¤ 330MM,YELLOW
23
20P-99-89120
HOSE,BROWN
24
20U-973-2350
HOSE,GREEN
25
08034-00536
BAND
25A
08210-01802
SPIRAL TUBE
26
20U-62-23690
HOSE¤ 1050MM
26A
08210-01803
SPIRAL TUBE
27
21K-03-11190
CLIP
28
01010-81020
BOLT
29
01643-31032
WASHER
30
08034-00823
BAND
31
23S-62-25850
CLIP
32
01010-81020
BOLT
33
01643-31032
WASHER
34
209-62-77940
HOSE¤ 600MM
34A
08210-01802
SPIRAL TUBE
35
07222-00210
PLUG
36
07221-20210
NUT
