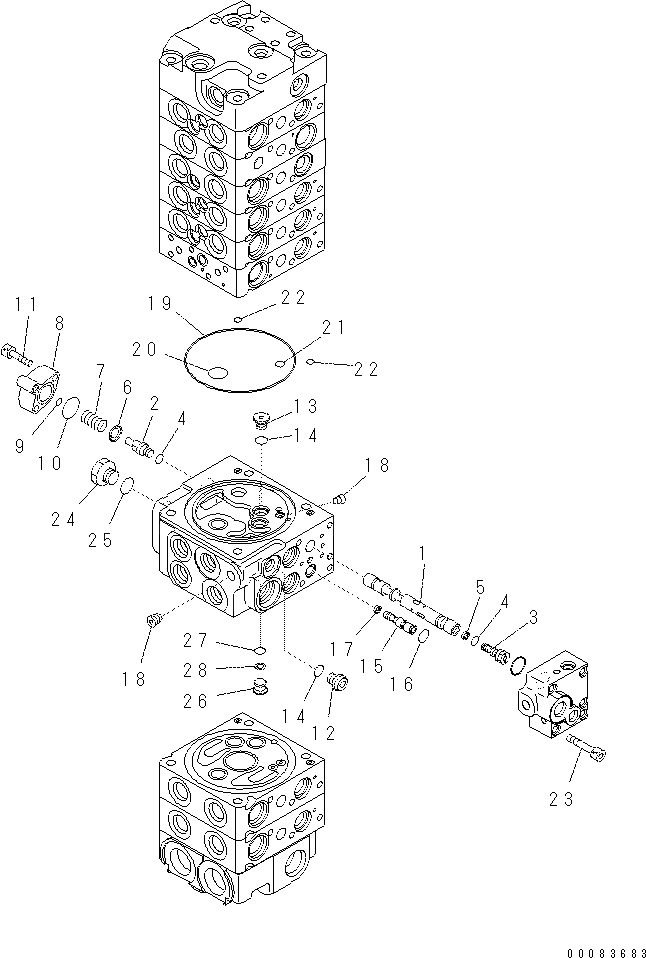

Запчасти Komatsu PC57-7 ОСНОВН. КЛАПАН (8-КЛАПАН) (/)(№DJB7-) Y [ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ]

|$1

723-18-18504

CONTROL VALVE

|$2

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1660-01A0 TO Y1660-22A0.

|$3

Ўо

VALVE SUB ASS'Y

1

Ўо

SPOOL

2

Ўо

PLUG

3

Ўо

ORIFICE

4

07002-10823

O-RING

5

Ўо

RING

6

723-11-14330

SEAT

7

723-11-14150

SPRING

8

723-11-13490

CASE, SPRING

9

702-21-54260

O-RING

10

702-21-55520

O-RING

11

01252-60625

BOLT

12

708-8E-16160

PLUG

13

723-11-18190

PLUG

14

07002-11023

O-RING

15

723-11-14310

ORIFICE

16

07000-11010

O-RING

17

Ўо

RING

18

Ўо

PLUG

19

07000-12100

O-RING

20

723-11-19130

O-RING

21

07000-11006

O-RING

22

702-21-54260

O-RING

23

01252-60635

BOLT

24

708-8H-11530

PLUG

25

07002-11423

O-RING

26

Ўо

PLUG

27

07000-11006

O-RING

28

07001-01006

RING
