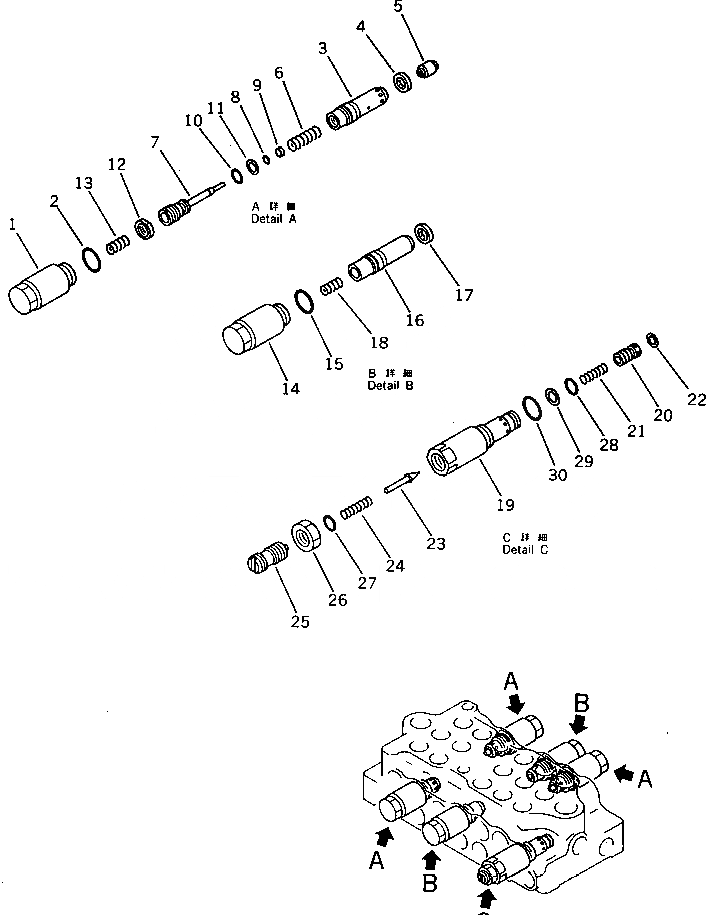

Запчасти Komatsu PC60-5 УПРАВЛЯЮЩ. КЛАПАН¤ ЛЕВ. (/) ГИДРАВЛИКА

|1

709-26-11303

VALVE ASS'Y,L.H.

|1

709-26-11302

VALVE ASS'Y,L.H.

|1

709-20-61102

VALVE ASS'Y,SUCTION AND SAFETY

|1

709-20-61101

VALVE ASS'Y,SUCTION AND SAFETY

|1

709-20-61301

VALVE ASS'Y,SUCTION AND SAFETY

|1

709-20-61300

VALVE ASS'Y,SUCTION AND SAFETY

1

709-20-61110

SLEEVE

2

709-25-11390

O-RING

3

VALVE

4

SEAL

5

POPPET

6

SPRING

7

PISTON

8

O-RING

9

SEAL

10

O-RING

11

RING,BACK-UP

12

NUT

|12

NUT

13

709-20-61160

SPRING

|14

709-20-81100

VALVE ASS'Y,SUCTION

14

709-20-61110

SLEEVE

15

709-25-11390

O-RING

16

VALVE

17

SEAL

18

709-20-61160

SPRING

|19

709-20-51103

VALVE ASS'Y,RELIEF

19

SLEEVE

20

VALVE

21

700-20-51270

SPRING

22

700-20-51240

RING

23

700-80-61190

POPPET

24

709-20-51231

SPRING

25

709-20-51280

SCREW

26

01582-11411

NUT

27

07000-02011

O-RING

28

700-22-11410

O-RING

29

700-80-64220

RING,BACK-UP

30

07002-02434

O-RING
