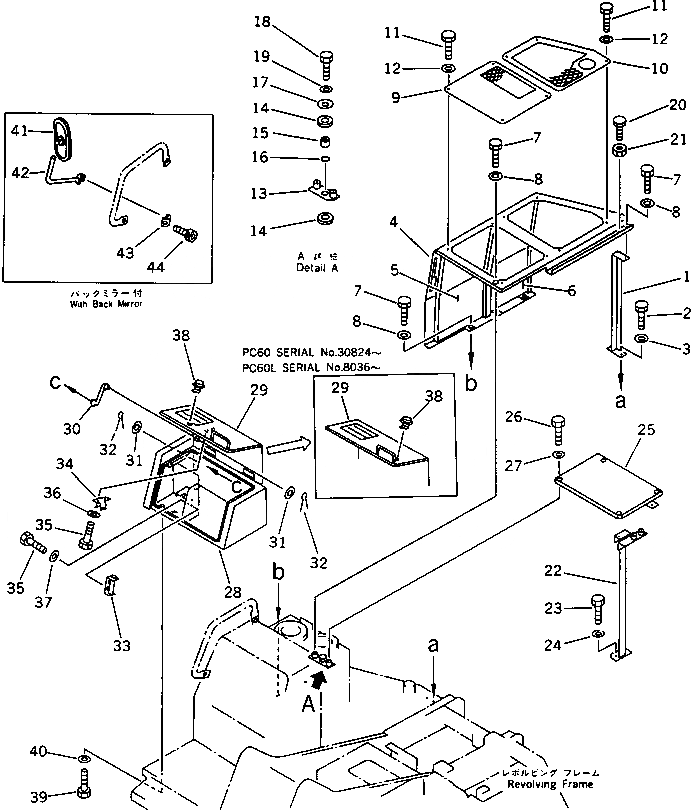

Запчасти Komatsu PC60-6 ПРАВ. КРЫШКА(ДЛЯ УДЛИНН. РЫЧАГ УПРАВЛ-Е)(№8-) ЧАСТИ КОРПУСА

1

201-54-61120

BRACKET

|1

201-54-63340

BRACKET,(WITH SWING FLASHER)

2

01010-51030

BOLT

3

01643-31032

WASHER

4

201-54-62430

COVER ASS'Y

|4

201-54-63320

COVER ASS'Y,(WITH SWING FLASHER)

5

201-54-62261

SHEET

6

201-54-62270

SHEET

7

01010-51025

BOLT

8

01643-31032

WASHER

9

201-54-61621

COVER

10

201-54-62160

COVER

11

01010-51020

BOLT

12

01643-31032

WASHER

13

201-54-62170

PLATE

14

203-62-42770

CUSHION

15

20X-62-21550

SPACER

16

07000-03025

O-RING

17

566-35-42430

PLATE

18

01010-51250

BOLT

19

01643-31232

WASHER

20

203-54-56710

STOPPER

21

01580-11008

NUT

22

201-54-62180

BRACKET

23

01010-51025

BOLT

24

01643-31032

WASHER

25

201-54-61461

COVER

26

01010-51025

BOLT

27

01643-31032

WASHER

|28

201-54-61401

COVER ASS'Y

|28

201-54-61400

COVER ASS'Y

28

COVER

|28

COVER

29

COVER

|29

COVER

30

203-54-56630

ROD

31

01643-30623

WASHER

32

04050-11612

PIN,COTTER

33

203-54-56640

BRACKET

34

203-54-56820

CLAMP

35

01010-51020

BOLT

36

01643-31032

WASHER

37

01640-21016

WASHER

38

205-60-71220

LOCK ASS'Y

39

01010-51025

BOLT

40

01643-31032

WASHER

41

08174-13113

MIRROR

42

203-54-52420

SUPPORT

43

205-54-76390

CLAMP

44

01252-41025

BOLT
