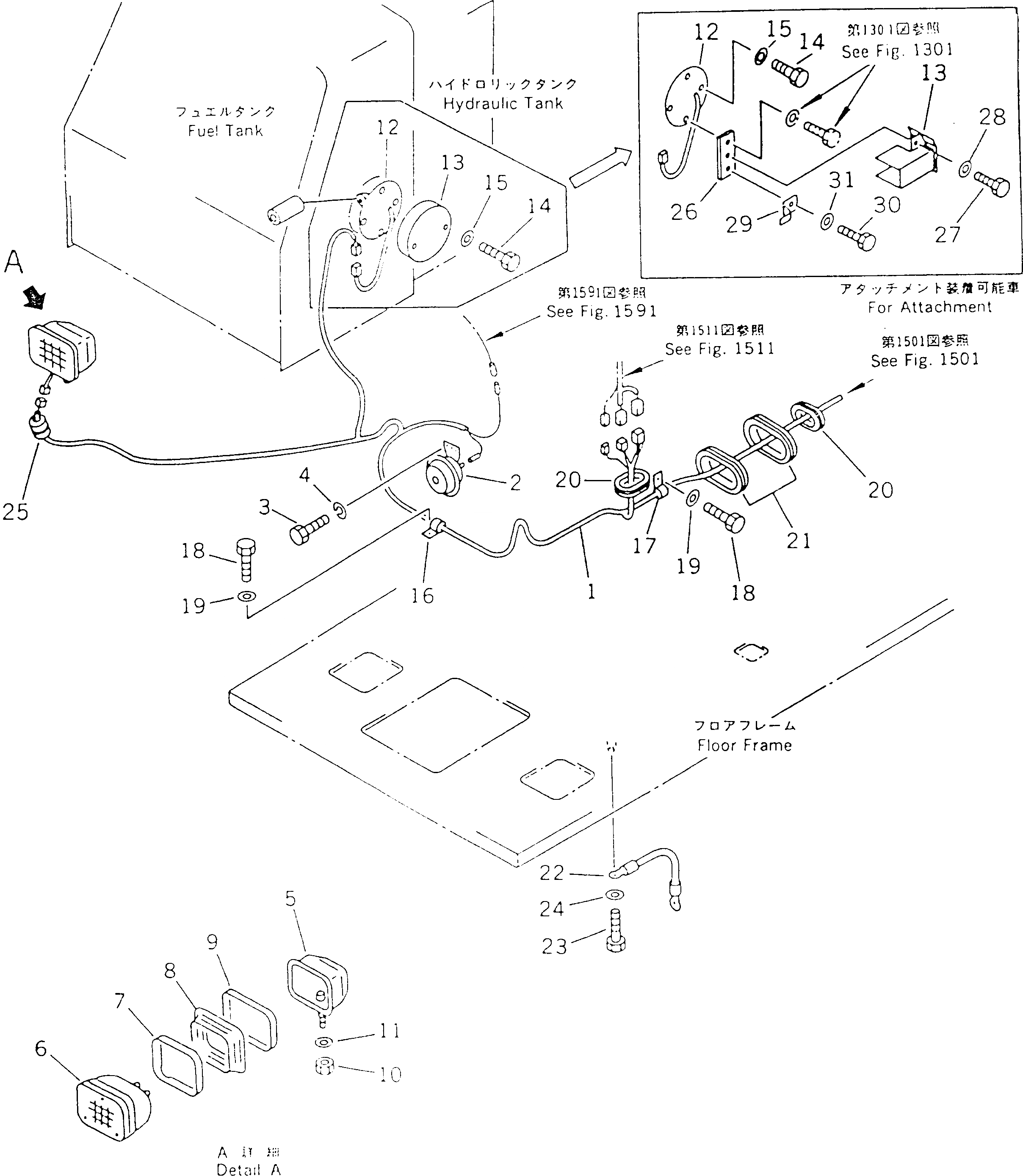

Запчасти Komatsu PC60-6C ЭЛЕКТРИКА (РАБОЧ. ОСВЕЩЕНИЕ И ЗВУК. СИГНАЛ.)(№-) КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

201-06-63250

WIRE ASS'Y,(SEE FIG.1502)

2

08160-52400

HORN

3

01010-50816

BOLT

4

01602-20825

WASHER,SPRING

|$4

203-06-56140

LAMP ASS'Y

5

HOUSING

6

22W-06-12170

BULB

7

203-06-56180

RING

8

22W-06-12290

CUSHION

9

203-06-56190

RING

10

01582-11411

NUT

11

01643-31445

WASHER

12

7861-92-4800

SENSOR,FUEL LEVEL (SEE FIG.1301)

13

201-06-62310

COVER

13

201-973-6260

COVER,(FOR ATTACHMENT)

14

01010-51065

BOLT

14

01010-51016

BOLT,(FOR ATTACHMENT)

15

01643-31032

WASHER

16

08036-01414

CLIP

17

08036-01814

CLIP

18

01010-51016

BOLT

19

01643-31032

WASHER

20

150-95-27160

GROMMET

21

201-06-61221

GROMMET

22

20X-06-21170

WIRE

23

01010-51016

BOLT

24

01643-31032

WASHER

25

08037-02512

GROMMET

26

201-973-6250

PLATE,(FOR ATTACHMENT)

27

01010-51020

BOLT,(FOR ATTACHMENT)

28

01643-31032

WASHER,(FOR ATTACHMENT)

29

08053-01512

CLIP,(FOR ATTACHMENT)

30

01010-51020

BOLT,(FOR ATTACHMENT)

31

01643-31032

WASHER,(FOR ATTACHMENT)
