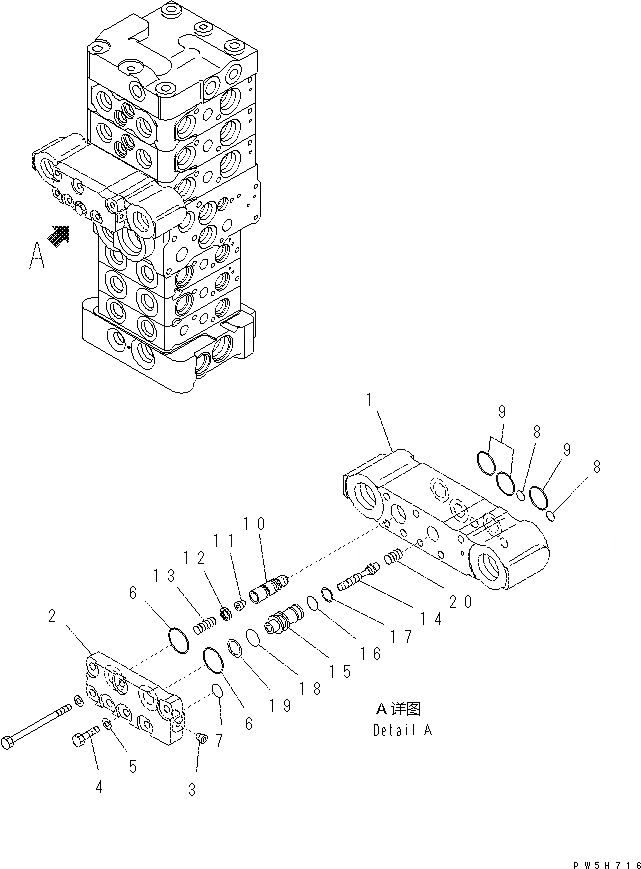

Запчасти Komatsu PC60-8 ОСНОВН. КЛАПАН (-КЛАПАН) (/) Y [ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ]

|$1

723-27-50900

CONTROL VALVE

|$2

THIS ASSEMBLY CONSISTS OF ALLPARTS SHOWN IN FIGS.Y1662-01A0 TO Y1662-18A0

|$3

723-20-96200

VALVE ASS'Y

1

Ўо

BLOCK

2

723-20-96150

PLATE

3

Ўо

PLUG

4

01010-80620

BOLT

5

01643-30623

WASHER

6

723-11-29490

O-RING

7

07000-11009

O-RING

8

07000-11006

O-RING

9

723-11-18150

O-RING

10

Ўо

VALVE

11

Ўо

ORIFICE

12

Ўо

SEAL

13

723-20-96140

SPRING

|$17

723-11-00710

VALVE SUB ASS'Y

14

Ўо

PISTON

15

Ўо

SLEEVE

16

07000-11010

O-RING

17

07001-01010

RING

18

07000-12012

O-RING

19

07001-02012

RING

20

723-11-19950

SPRING
