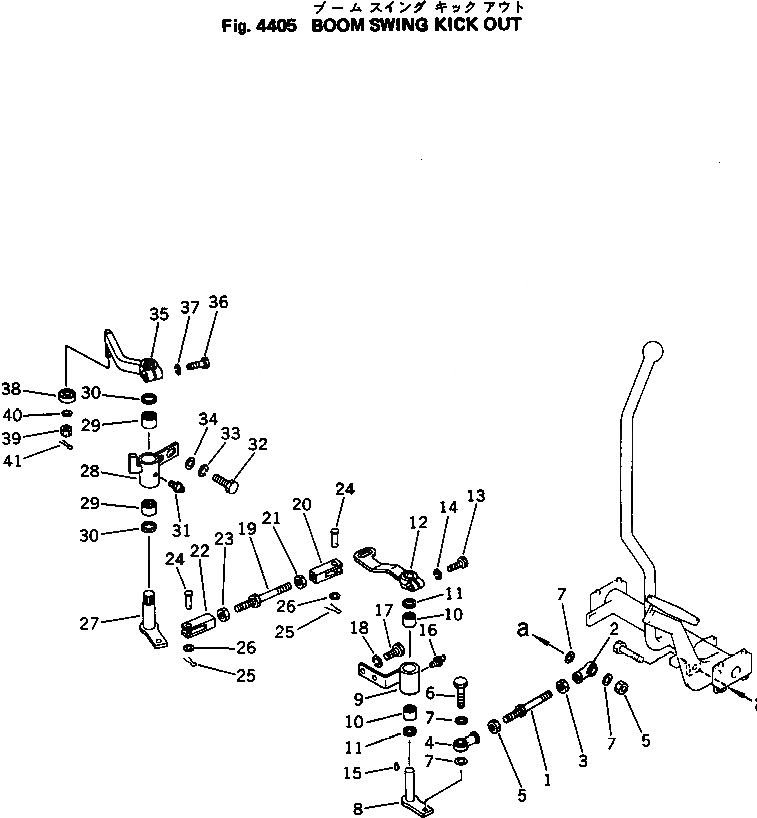

Запчасти Komatsu PC60U-3 ПОВОРОТ СТРЕЛЫ KICK OUT ПОВОРОТН. И СИСТЕМА УПРАВЛЕНИЯ

1

04248-31217

ROD

2

04250-61265

END,ROD¤ L.H. THREAD

3

01508-21207

NUT,L.H. THREAD

4

04250-51265

END,ROD

5

01582-11210

NUT

6

01010-31235

BOLT

7

04254-01232

SPACER

8

201-43-38170

LEVER

9

201-43-38160

BRACKET

10

06120-02216

BEARING

11

06122-02204

SEAL,BEARING

12

201-43-38180

LEVER

13

01010-30830

BOLT

14

01602-00825

WASHER,SPRING

15

04010-00519

KEY

16

07020-00900

FITTING,GREASE

17

01010-31025

BOLT

18

01602-01030

WASHER,SPRING

19

04248-31011

ROD

20

04221-21055

YOKE,L.H. THREAD

21

01508-21006

NUT¤ L.H. THREAD,L.H. THREAD

22

04211-21055

YOKE

23

01582-11008

NUT

24

04205-11030

PIN

25

04050-13015

PIN,COTTER

26

01641-21016

WASHER

27

201-43-28350

LEVER

28

201-43-28340

BRACKET

29

06120-02016

BEARING

30

06122-02004

SEAL,BEARING

31

07020-00000

FITTING,GREASE

32

01010-31025

BOLT

33

01602-01030

WASHER,SPRING

34

01643-31032

WASHER

35

201-43-28360

LEVER

36

01010-30830

BOLT

37

01602-00825

WASHER,SPRING

38

06002-00608

BEARING

39

01590-10607

NUT

40

01642-20608

WASHER

41

04050-12022

PIN,COTTER
