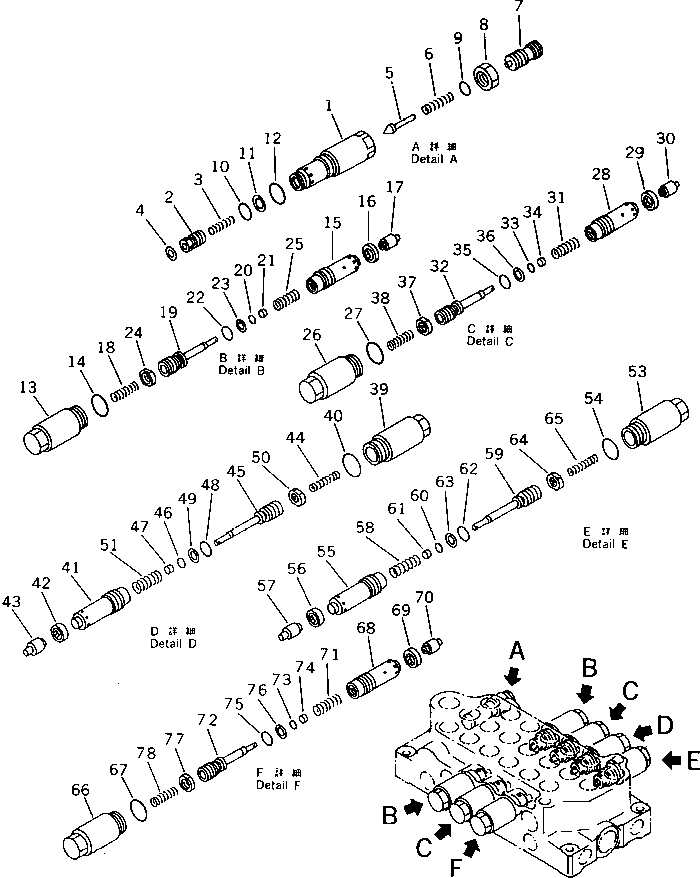

Запчасти Komatsu PC60U-5 УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (/) ГИДРАВЛИКА

|1

709-26-11203

VALVE ASS'Y,R.H.

|1

709-26-11202

VALVE ASS'Y,R.H.

|1

709-26-11201

VALVE ASS'Y,R.H.

|1

709-20-51103

VALVE ASS'Y,(300KG/CM2)

1

SLEEVE

2

VALVE

3

709-20-51270

SPRING

4

700-20-51240

RING

5

700-80-61190

POPPET

6

709-20-51231

SPRING

7

700-20-51340

SCREW

8

01583-11408

NUT

9

07000-02011

O-RING

10

700-22-11410

O-RING

11

700-80-64220

RING,BACK-UP

12

07002-02434

O-RING

|13

709-20-61201

VALVE ASS'Y,(230KG/CM2)

|13

709-20-61200

VALVE ASS'Y,(230KG/CM2)

13

709-20-61110

SLEEVE

14

709-25-11390

O-RING

15

VALVE

16

SEAL

17

POPPET

18

SPRING

19

PISTON

20

O-RING

21

SEAL

22

O-RING

23

RING,BACK-UP

24

NUT

|24

NUT

25

709-20-61160

SPRING

|26

709-20-61102

VALVE ASS'Y,(345KG/CM2)

|26

709-20-61101

VALVE ASS'Y,(345KG/CM2)

26

709-20-61110

SLEEVE

27

709-25-11390

O-RING

28

VALVE

29

SEAL

30

POPPET

31

SPRING

32

PISTON

33

O-RING

34

SEAL

35

O-RING

36

RING,BACK-UP

37

NUT

|37

NUT

38

709-20-61160

SPRING

|39

709-20-61401

SAFETY VALVE ASS'Y,(245KG/CM2)

|39

709-20-61400

SAFETY VALVE ASS'Y,(245KG/CM2)

39

709-20-61110

SLEEVE

40

709-25-11390

O-RING

41

VALVE

42

SEAL

43

POPPET

44

SPRING

45

PISTON

46

O-RING

47

SEAL

48

O-RING

49

RING,BACK-UP

50

NUT

|50

NUT

51

709-20-61160

SPRING

52

709-20-61301

VALVE ASS'Y,(270KG/CM2)

|52

709-20-61300

VALVE ASS'Y,(270KG/CM2)

53

709-20-61110

SLEEVE

54

709-20-11390

O-RING

55

VALVE

56

SEAL

57

POPPET

58

SPRING

59

PISTON

60

O-RING

61

SEAL

62

O-RING

63

RING,BACK-UP

64

NUT

|64

NUT

65

709-20-61160

SPRING

|66

709-20-61501

VALVE ASS'Y

|66

709-20-61500

VALVE ASS'Y

66

709-20-61110

SLEEVE

67

709-25-11390

O-RING

68

VALVE

69

SEAL

70

POPPET

71

SPRING

72

PISTON

73

O-RING

74

SEAL

75

O-RING

76

RING,BACK-UP

77

NUT

|77

NUT

78

709-20-61160

SPRING
